Georg Fischer 9850-010 hex head plug 1 inch 6MX27

Product Description

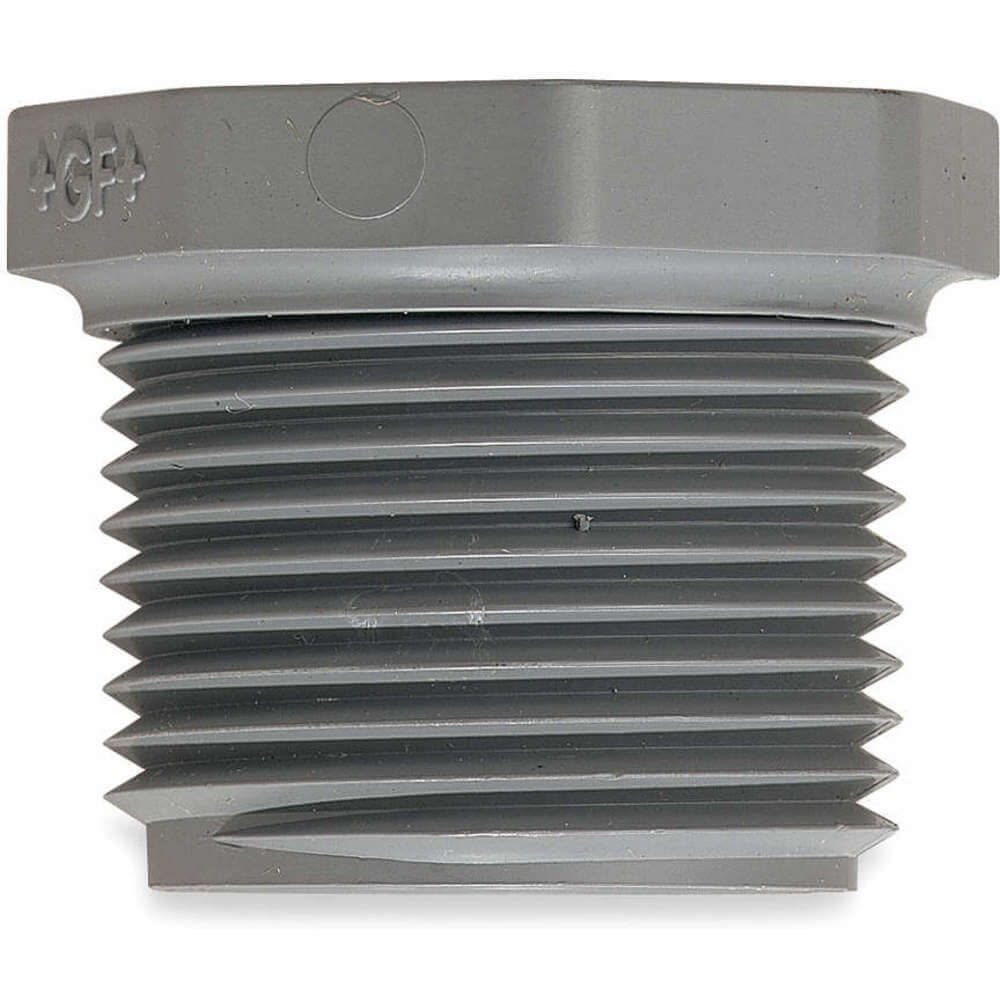

The GEORG FISCHER 9850-010 is a CPVC Hex Head Plug designed for secure pipe termination in various water applications. This Schedule 80 plug features a 1-inch MNPT connection, ensuring compatibility with standard piping systems. It is suitable for both non-potable and potable water, offering a maximum operating pressure of 315 psi at 73°F and a maximum temperature of 210°F.

• Constructed from durable CPVC material for chemical resistance and longevity.
• Features a 1-inch MNPT connection and hex drive style for easy installation.
• Rated for Schedule 80 piping, with a maximum operating pressure of 315 psi at 73°F.

Product Highlights

This CPVC Hex Head Plug is NSF 14 and NSF 61 certified, making it suitable for potable water applications.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 9850-010
• Country of Origin: US

Technical Specifications

• Item Type: Hex Head Plug
• Application: Non-Potable Water, Potable Water
• Fitting Shape: Hex Head Plug
• Body Material: CPVC
• Connection Type: MNPT
• Pipe Schedule: 80
• Hex Size: 1 1/2"
• Pre-applied Thread Sealant: No
• Included Seals: No
• Max Operating Pressure: 315 psi @ 73°F
• Max Temperature: 210°F
• Nominal Pipe Size: 1"
• Outside Diameter: 1 1/4"
• Overall Length: 1 3/16"
• Plug Construction: Cored
• Plug Drive Style: Hex
• Operating Temperature Range: 0°F to 210°F
• Thread Size: 1"-11.5
• Certifications: Nsf 61, Nsf 14, ASTM F439
