Georg Fischer 9847-020 Cpvc Cap 2 Inch Schedule 80

Product Description

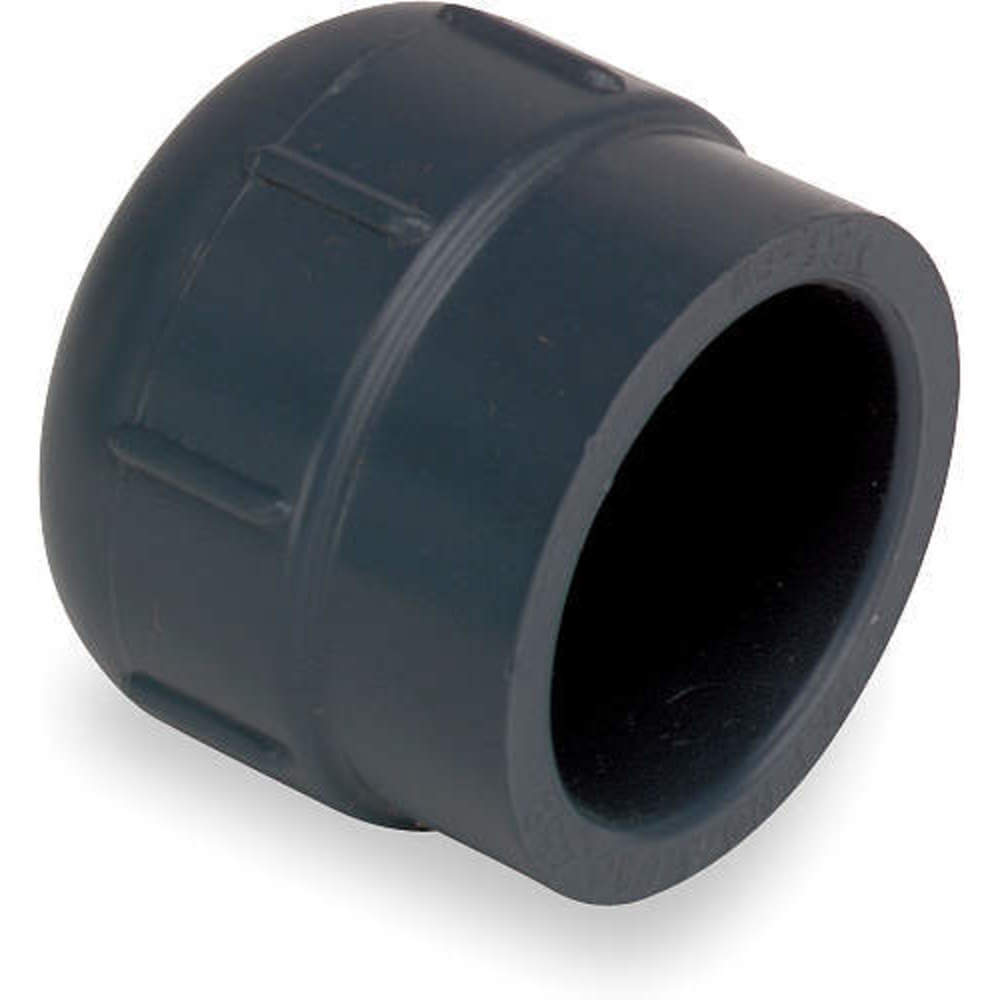

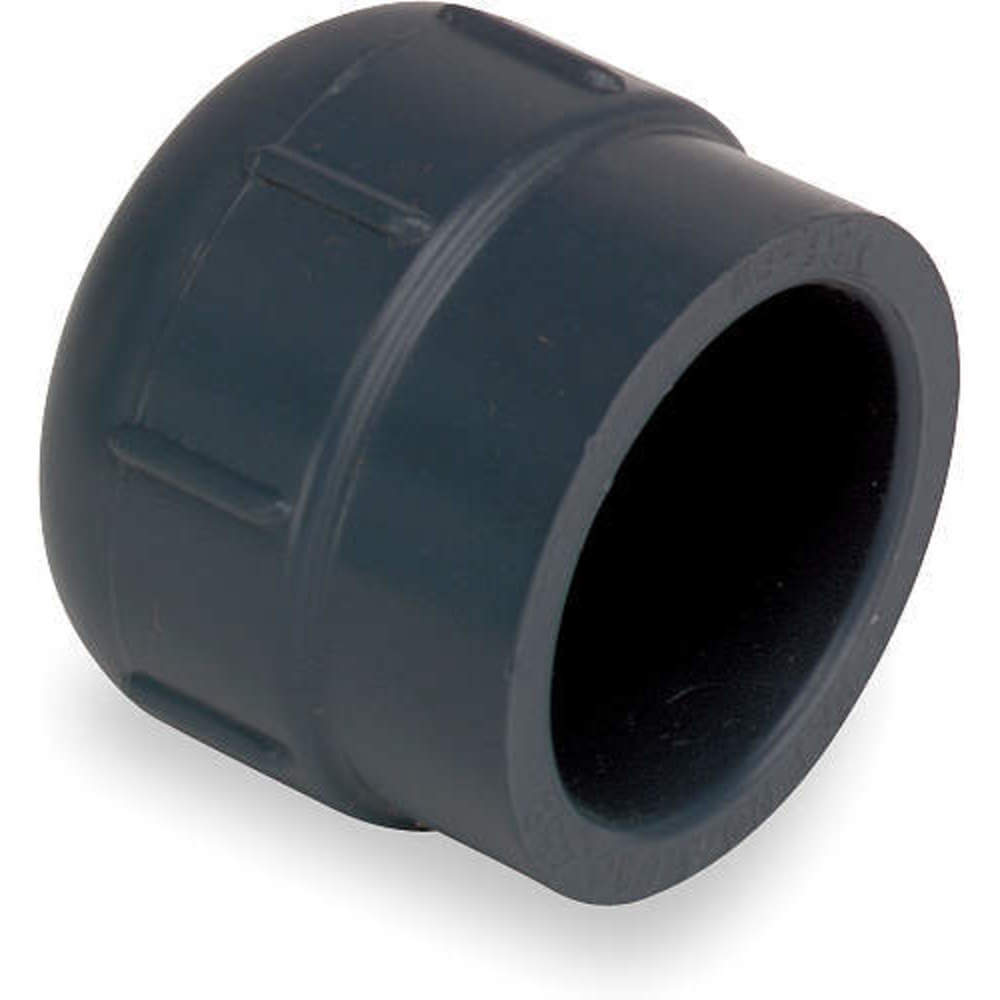

The GEORG FISCHER 9847-020 is a Schedule 80 CPVC socket cap designed to terminate the end of a 2-inch CPVC pipe run. Molded from chlorinated polyvinyl chloride (CPVC) in gray, it accepts a female socket (slip) connection and is rated to 404 psi at 73 degrees F with a maximum temperature of 210 degrees F. This cap carries NSF 61 and NSF 14 certifications, making it suitable for both potable and non-potable water systems. Licensed plumbers and pipefitters install this fitting in commercial and industrial piping systems where Schedule 80 CPVC is specified for corrosion resistance and pressure performance.

This cap is used in residential and commercial plumbing, industrial process piping, and water treatment applications where a pressure-rated, chemically resistant end closure is required. Its NSF 61 listing confirms suitability for contact with drinking water, while its Schedule 80 wall thickness supports demanding pressure conditions. Installers working on chemical distribution, hot and cold water supply, and industrial fluid handling lines commonly specify this fitting where CPVC is the material of choice.

Key Features

• Rated to 404 psi at 73 degrees F for high-pressure CPVC systems
• Maximum service temperature of 210 degrees F
• Female socket (slip) connection for solvent-cement installation
• NSF 61 and NSF 14 certified for potable and non-potable water contact
• Meets ASTM F439 standards for Schedule 80 CPVC fittings
• Gray CPVC construction with no pre-applied thread sealant or included seals

Compatibility

Designed as an OEM-style Schedule 80 CPVC socket cap for 2-inch pipe, conforming to ASTM F439, NSF 14, and NSF 61 standards for use in potable and non-potable water piping systems.

Installation Notes

Installation is performed by a licensed plumber or pipefitter using solvent cement rated for CPVC Schedule 80 systems. Shut off and depressurize the line completely before cutting or fitting. Clean and prime the pipe end and fitting socket before applying solvent cement per the cement manufacturer and applicable IPC or local plumbing code requirements. Do not apply heat to the fitting to accelerate cure.

Technical Specifications

• Body Material: CPVC
• Color: Gray
• Schedule: 80
• Nominal Pipe Size: 2 inches
• Connection Type: Female Socket (Slip)
• Max Pressure: 404 psi at 73 degrees F
• Max Temperature: 210 degrees F
• Temperature Range: 0 degrees F to 210 degrees F
• Outside Diameter: 3.125 inches
• Overall Length: 2.3125 inches
• Application: Potable Water, Non-Potable Water
• Standards: ASTM F439, NSF 14, NSF 61
• Pre-applied Thread Sealant: No
• Included Seals: No

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 9847-020
