Georg Fischer 9847-015 Cap 1 1/2 in

Product Description

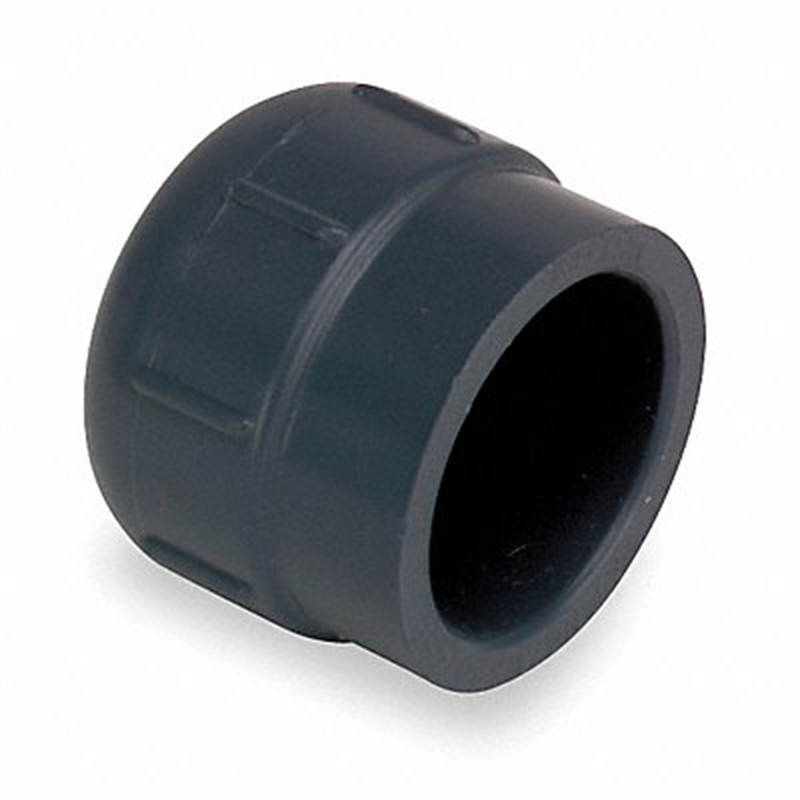

The GEORG FISCHER 9847-015 Cap is a 1 1/2 inch nominal pipe size CPVC Schedule 80 female socket fitting. Designed for Schedule 80 pipes, it features a 2 11/16 inch outside diameter and a 2 1/16 inch overall length. This cap is engineered to withstand a maximum operating pressure of 470 psi and is suitable for temperatures ranging from 0 to 210 degrees F. It meets ASTM F439, NSF 14, and NSF 61 standards, making it appropriate for both non-potable and potable water applications.

• 1 1/2 inch Nominal Pipe Size CPVC Schedule 80 construction
• Female Socket connection, designed for 470 psi maximum operating pressure
• Operates within a temperature range of 0 to 210 Degrees F, meeting ASTM F439, NSF 14, NSF 61 standards

Product Highlights

CPVC Schedule 80 cap for 1 1/2 inch pipes, rated for 470 psi and 0-210°F, suitable for water applications.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 9847-015

Technical Specifications

• Schedule: Schedule 80
• Fitting Shape: Cap
• Color: Gray
• Connection Type: Female Socket
• Nominal Pipe Size: 1 1/2 in
• Standards: ASTM F439, NSF 14, NSF 61
• Temperature Range: 0 Degrees to 210 Degrees F
• Application: Non-Potable Water, Potable Water
• Maximum Operating Pressure: 470 psi
