Georg Fischer 9838-131 cpvc bushing 1 in 3/4 in npt

Product Description

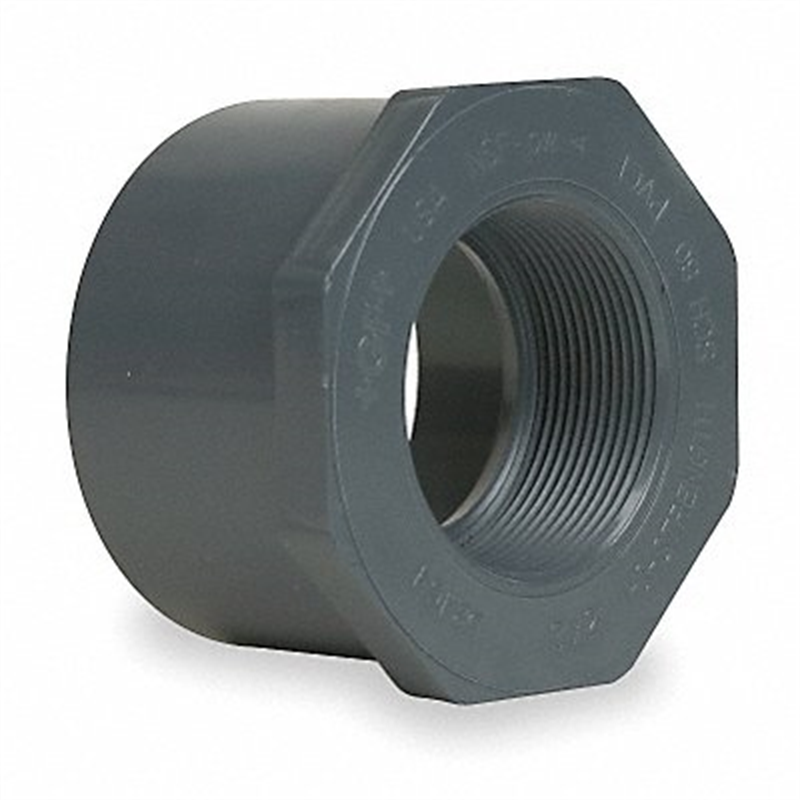

The GEORG FISCHER 9838-131 CPVC Bushing is a Schedule 80 reducing bushing designed for connecting pipes with different nominal sizes. It features a 1 inch male spigot on one side and a 3/4 inch female NPT on the other, suitable for non-potable and potable water applications. It operates within a temperature range of 32 to 200 Degrees F and can withstand a maximum operating pressure of 315 psi at 73 Degrees F.

• Designed as a reducing bushing for Schedule 80 CPVC pipe systems.
• Features a 1 inch male spigot connection and a 3/4 inch female NPT connection.
• Suitable for both non-potable and potable water applications with a temperature range of 32 to 200 Degrees F.

Product Highlights

Durable Schedule 80 CPVC reducing bushing for varied pipe connections and water systems.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 9838-131

Technical Specifications

• Hex Size: 1 1/2 in
• Includes Shield: No
• Fitting Side A Gender: Male
• Fitting Side B Pipe Threading: 14
• Standards: ASTM F439
• Fitting Side B Outside Diameter: 1 1/2 in
• Includes Plug: No
• Schedule: Schedule 80
• Application: Non-Potable Water, Potable Water
• Pipe Outside Diameter: 1 in
• Fitting Side B Nominal Pipe Size: 3/4 in
• Fitting Side A Nominal Pipe Size: 1 in
• Fitting Shape: Reducing Bushing
• Fitting Side A Outside Diameter: 15/16 in
• Maximum Operating Pressure: 315 psi @ 73 Degrees F
• Fitting Side B Gender: Female
• Temperature Range: 32 to 200 Degrees F
