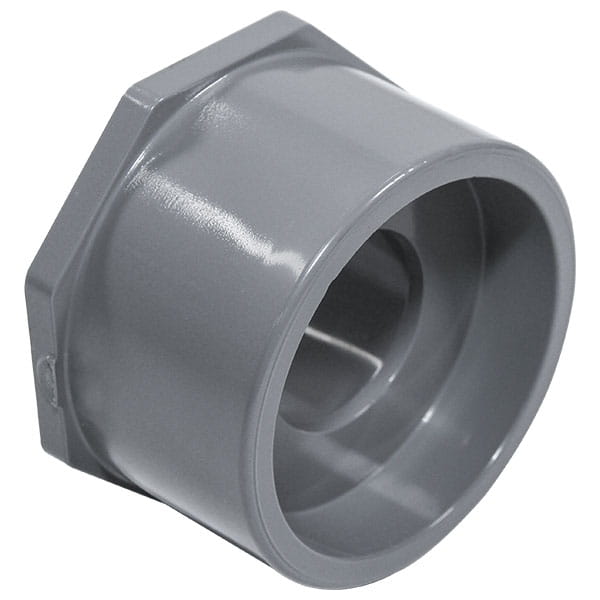

Georg Fischer 9837529FB Cpvc 80 Reducing Bushing 6x2.5 in

Product Description

The GEORG FISCHER 9837529FB is a CPVC Schedule 80 reducing bushing in a flush style configuration with a spigot by socket (SpgxS) end connection. The bushing reduces a 6-inch line down to a 2.5-inch fitting, allowing technicians to transition between pipe sizes within a single threaded or solvent-welded assembly. Fabricated from CPVC Schedule 80 material, this bushing is suited for systems handling corrosive fluids, higher temperatures, or elevated pressures where standard PVC would be inadequate. Plumbers and pipefitters install this fitting in industrial, commercial, and chemical process piping applications.

This reducing bushing is used in CPVC Schedule 80 piping systems where a concentric pipe size reduction is needed without adding significant length to the assembly. The flush bushing style seats directly inside the fitting socket, keeping the installation compact. Typical applications include chemical distribution lines, hot and cold water systems, and industrial process piping where CPVC material compatibility is required. It accepts a 6-inch spigot inlet and steps down to a 2.5-inch socket outlet.

Key Features

• Flush style bushing design for compact, inline size reduction
• Spigot inlet by socket outlet (SpgxS) end configuration
• Reduces from 6 inches to 2.5 inches in a single fitting
• CPVC Schedule 80 construction for elevated temperature and pressure service
• Suitable for corrosive fluid and chemical process piping applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for CPVC Schedule 80 piping systems using standard spigot and socket solvent-weld connections.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable IPC and local plumbing codes. Depressurize and drain the line completely before cutting into any existing piping. Use only CPVC-rated solvent cement and primer on the spigot and socket mating surfaces, following the cement manufacturer's cure time before returning the system to service. Do not apply excessive force when seating the bushing, as CPVC fittings can crack under point loading.

Technical Specifications

• Material: CPVC
• Schedule: Schedule 80
• Fitting Type: Reducing Bushing, Flush Style
• Inlet Size: 6 inches
• Outlet Size: 2.5 inches
• End Connection: Spigot x Socket (SpgxS)

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 9837529FB
