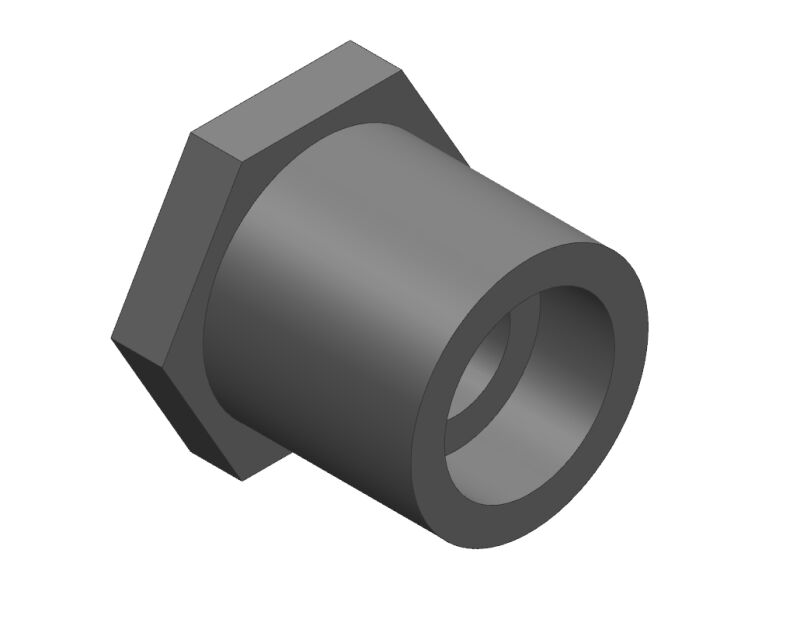

Georg Fischer 9837-585 Cpvc Reducing Bushing 8x6 Sch80

Product Description

The GEORG FISCHER 9837-585 is a flush-style reducing bushing manufactured from CPVC (Corzan) material and rated for Schedule 80 pressure applications. It transitions from an 8-inch spigot end to a 6-inch socket end, allowing installers to step down pipe size within a CPVC piping system without adding extra fittings. Corzan CPVC offers elevated temperature and chemical resistance compared to standard PVC, making this bushing suitable for demanding industrial and commercial plumbing environments. Licensed plumbers and pipefitters install this type of fitting where a compact, flush-profile reducer is required in tight installations.

This reducing bushing is used in Schedule 80 CPVC piping systems found in commercial and industrial plumbing, chemical distribution, and process piping applications. The flush-style design keeps the fitting profile low, minimizing protrusion into adjacent system components. It is appropriate for above-ground and in-wall installations where CPVC is the specified pipe material. Installers working on hot and cold water distribution, chemical feed lines, or industrial process lines will find this fitting suited to their system requirements.

Key Features

• Flush-style bushing design reduces protrusion and fits compact installation spaces
• Corzan CPVC material provides superior chemical and elevated-temperature resistance versus standard PVC
• Schedule 80 pressure rating for demanding commercial and industrial service
• 8-inch spigot inlet transitions to 6-inch socket outlet for in-line pipe size reduction
• Eliminates the need for additional coupling or adapter fittings at reduction points

Compatibility

Designed as an OEM-style replacement and standard fitting for Schedule 80 CPVC piping systems using spigot-by-socket connections in commercial and industrial plumbing applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable local plumbing codes and ASTM standards for CPVC solvent-cementing. Depressurize and drain the affected piping section fully before cutting or removing any existing fittings. Use only CPVC-rated solvent cement and primer compatible with Corzan material — do not substitute standard PVC cement. Allow full cure time per the cement manufacturer's guidelines before returning the system to service.

Technical Specifications

• Material: CPVC (Corzan)
• Schedule: Schedule 80
• Inlet Size: 8 inches (Spigot)
• Outlet Size: 6 inches (Socket)
• Style: Flush
• Length: 4.66 inches
• Weight: 4.58 pounds
• Product UPC: 083475033612

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 9837-585
