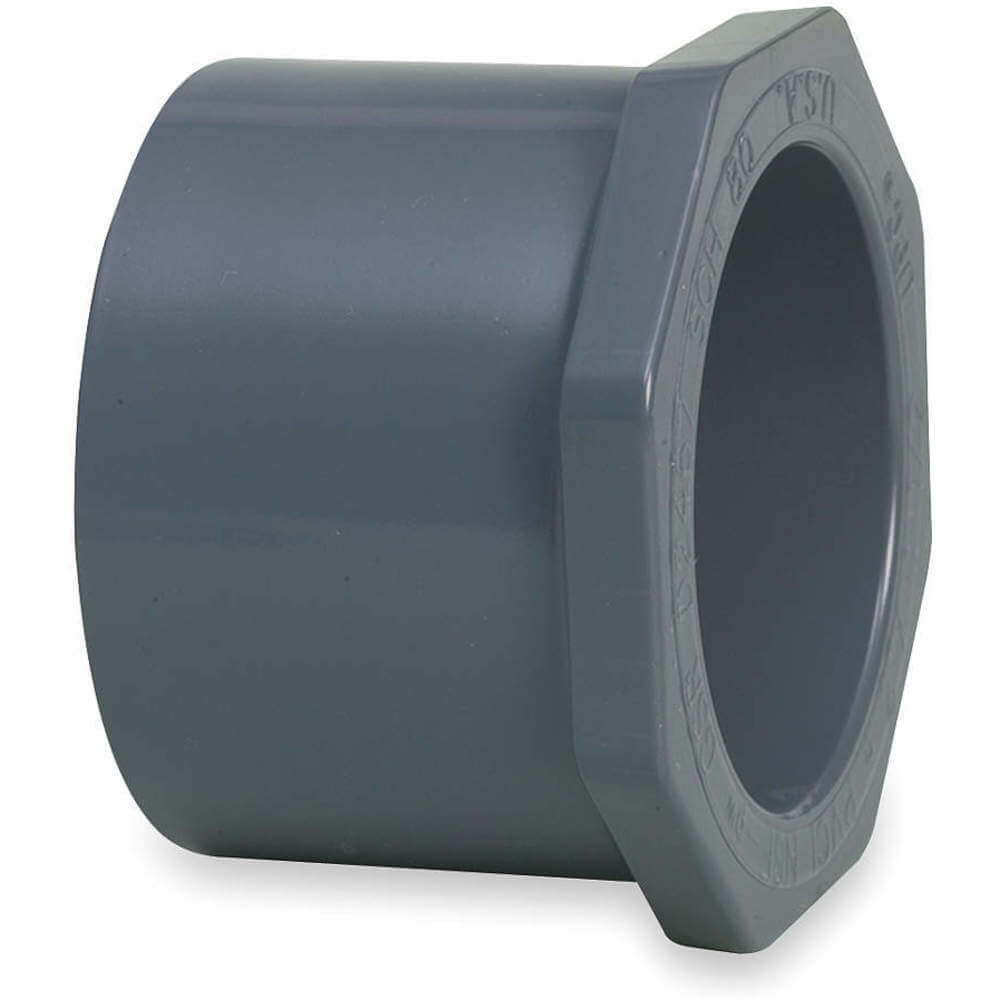

Georg Fischer 9837-339 reducer bushing 3 x 2-1/2 inch

Product Description

The GEORG FISCHER 9837-339 reducer bushing is constructed from CPVC 80, making it suitable for both non-potable and potable water applications. It features a spigot x socket connection type for secure installation. This reducing bushing is designed to operate within a temperature range of 32°F to 200°F and can withstand a maximum operating pressure of 370 psi at 73°F, ensuring reliable performance in plumbing systems.

• CPVC 80 construction for durability
• Suitable for non-potable and potable water applications
• Spigot x Socket connection type for secure fitting

Product Highlights

Durable CPVC 80 reducing bushing for water applications, featuring spigot x socket connection and NSF 61 certification.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 9837-339
• Country of Origin: US

Technical Specifications

• Item: Reducer Bushing
• Application: Non-Potable Water, Potable Water
• Basic Fitting Shape: Bushing
• Body Material: CPVC
• Color: Gray
• Connection Type: Spigot x Socket
• Fitting Side A Gender: Male
• Fitting Side A Nominal Pipe Size: 3 Inch
• Fitting Side A Outside Diameter: 3 1/2 Inch
• Fitting Side A Type: Spigot
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 2 1/2 Inch
• Fitting Side B Outside Diameter: 3 11/16 Inch
• Fitting Side B Type: Socket
• For Pipe Outside Diameter: 3 Inch
• Pipe Schedule: 80
• Hex Size: 3 11/16 Inch
• Included Plug: No
• Included Pre-applied Thread Sealant: No
• Included Seals: No
• Included Shield: No
• Low Lead Certified Standard: NSF 61
• Maximum Operating Pressure: 370 psi @ 73°F
• Maximum Pressure: 375 psi @ 73°F
• Maximum Temperature: 210°F
• Overall Length: 2 1/4 Inch
• Pipe Size: 3 x 2 1/2 Inch
• Specific Fitting Shape: Reducing Bushing
• Standards: ASTM F439
• Operating Temperature Range: 32°F to 200°F
