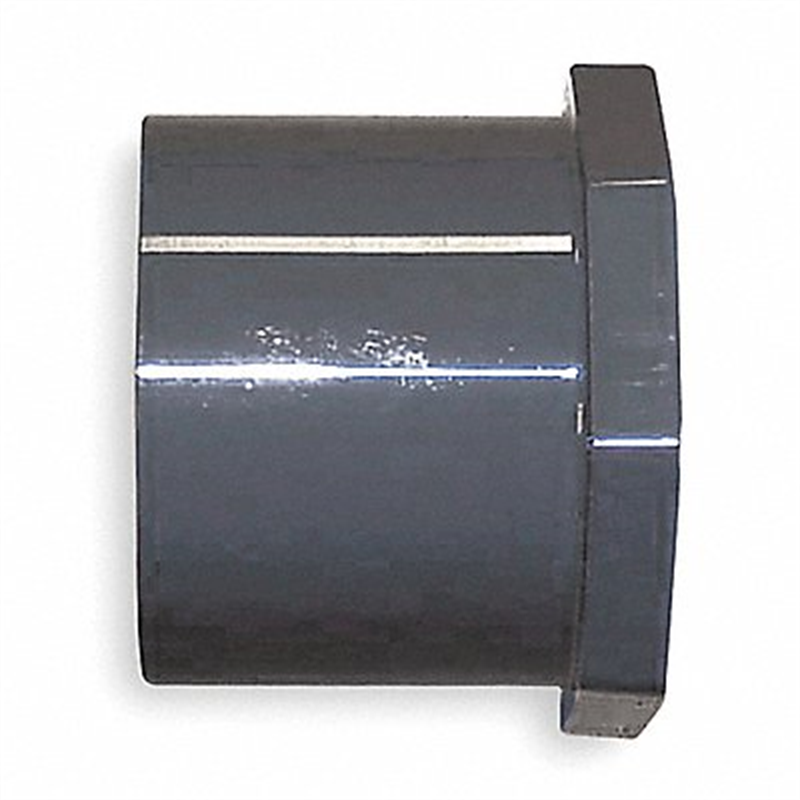

Georg Fischer 9837-251 CPVC bushing 2 in 1 1/2 in

Product Description

The GEORG FISCHER 9837-251 CPVC Reducing Bushing is designed for Schedule 80 piping systems, featuring a 2-inch male spigot and a 1 1/2-inch female socket. This fitting is suitable for non-potable and potable water applications, with a maximum operating pressure of 400 psi at 73 degrees F and a temperature range of 32 to 200 degrees F. It meets ASTM F439 standards for reliable performance in industrial and commercial plumbing.

• Reducing Bushing for CPVC Schedule 80 pipe.
• Features a 2-inch male spigot and 1 1/2-inch female socket.
• Withstands 400 psi at 73°F and temperatures from 32°F to 200°F.

Product Highlights

Durable CPVC reducing bushing for Schedule 80 piping, ideal for water systems requiring high pressure and temperature resistance.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 9837-251

Technical Specifications

• Color: Gray
• Fitting Side B Outside Diameter: 2 9/16 in
• Temperature Range: 32 to 200 Degrees F
• Schedule: Schedule 80
• Fitting Type: Reducing Bushing
• Includes Shield: No
• Nominal Pipe Size B: 1 1/2 in
• Nominal Pipe Size A: 2 in
• Maximum Operating Pressure: 400 psi @ 73 Degrees F
• Includes Plug: No
• Overall Length: 1 3/4 in
• Fitting Side A Gender: Male
• Fitting Side A Outside Diameter: 2 3/8 in
• Hex Size: 2 9/16 in
• Fitting Side B Gender: Female
• Application: Non-Potable Water, Potable Water
• Standards: ASTM F439
• Pipe Outside Diameter: 2 in
