Georg Fischer 9837-101 CPVC bushing 3/4 in 1/2 in

Product Description

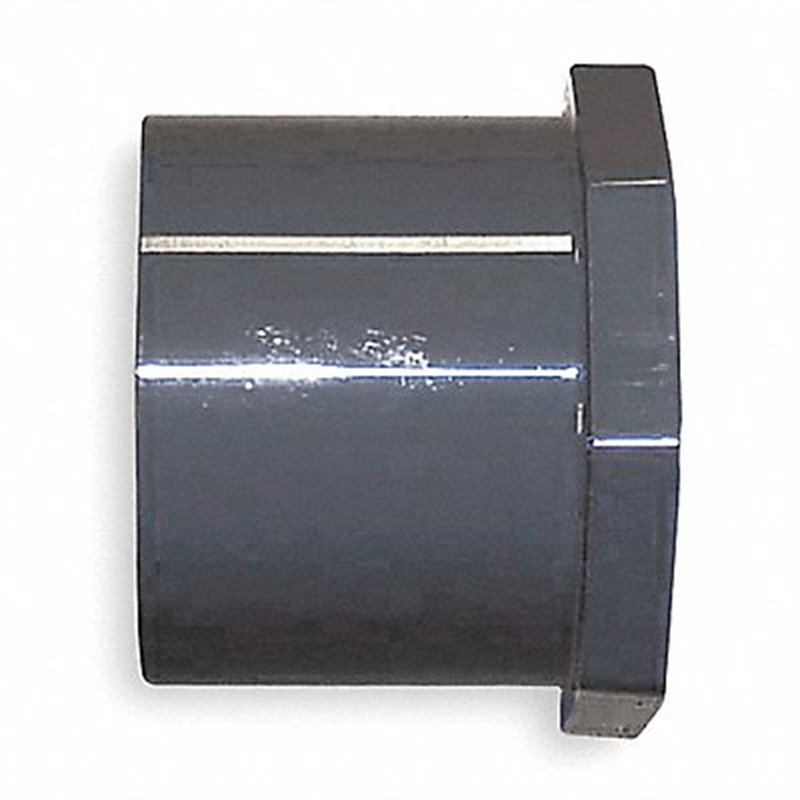

The GEORG FISCHER 9837-101 is a CPVC reducing bushing designed for Schedule 80 pipe systems. It features a 3/4 inch male spigot on Side A and a 1/2 inch female socket on Side B, facilitating connections between different pipe sizes. This fitting is suitable for both non-potable and potable water applications, operating effectively within a temperature range of 32 to 200 degrees F and handling a maximum operating pressure of 690 psi at 73 degrees F.

• Designed as a CPVC Schedule 80 reducing bushing with a 3/4 inch male spigot and 1/2 inch female socket.
• Suitable for a wide range of applications including non-potable and potable water systems.
• Withstands temperatures from 32 to 200 degrees F and pressures up to 690 psi at 73 degrees F.

Product Highlights

Durable CPVC Schedule 80 reducing bushing for reliable pipe size transitions in water systems.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 9837-101

Technical Specifications

• Weight: 0.1
• Pipe Schedule: 80
• Fitting Side B Gender: Female
• Fitting Side A Outside Diameter: 1 in
• Standards: ASTM F439
• Overall Length: 1 1/4 in
• Application: Non-Potable Water, Potable Water
• Includes Plug: No
• Fitting Side B Nominal Pipe Size: 1/2 in
• Hex Size: 13/16 in
• Temperature Range: 32 Degrees to 200 Degrees F
• Maximum Operating Pressure: 690 psi @ 73 Degrees F
• Fitting Side A Gender: Male
• Specific Fitting Shape: Reducing Bushing
• Fitting Side A Nominal Pipe Size: 3/4 in
• For Pipe Outside Diameter: 3/4 in
• Includes Shield: No
• Fitting Side B Outside Diameter: 13/16 in
