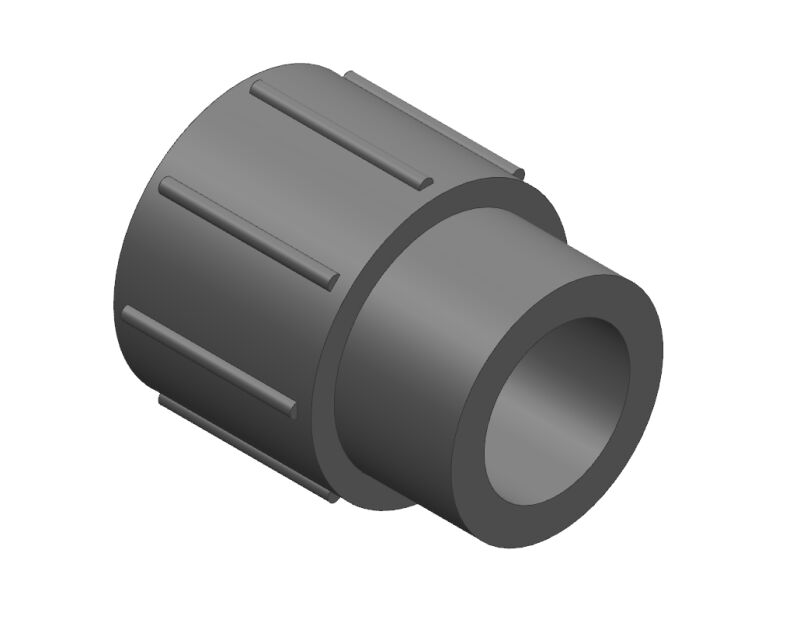

Georg Fischer 9829167FB 1-1/4 inches x 3/4 inches CPVC 80 Reducing Coupling (SxS), Bushed

Product Description

The GEORG FISCHER 9829167FB is a CPVC 80 reducing coupling designed for connecting pipes of different sizes. This socket x socket (SxS) fitting allows for a secure connection between a 1-1/4" pipe and a 3/4" pipe, suitable for various plumbing and industrial applications. It is bushed for efficient flow and maintains integrity under specified operating pressures and temperatures, such as 520 psi at 73 °F.

• Features socket x socket (SxS) ends for secure pipe connections.
• Designed for CPVC 80 systems, ensuring durability and chemical resistance.
• Accommodates a reduction from 1-1/4" to 3/4" pipe sizes.

Product Highlights

CPVC 80 reducing coupling with socket ends for 1-1/4" to 3/4" pipe connections, suitable for plumbing and industrial use.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 9829167FB

Technical Specifications

• MPN: 9829167FB
• End Type: Socket
• End Size 1: 1-1/4"
• End Size 2: 3/4"
• Operating Pressure (PSI): 520 psi (at 73 °F), 130 psi (at 180 °F)
• Operating Pressure (bar): 35.9 bar (at 23 °C), 9 bar (at 82 °C)
• Operating Temperature Range (°F): 73 °F to 180 °F
• Operating Temperature Range (°C): 23 °C to 82 °C
• Material: CPVC
• Codes: UPC, IBC, IRC, IPC, UMC, NSPC, IMC
• Listings: ULC, NSFpw-G, ICC-ES-PMG, U.P.Code
• Standards: ASTM F439, NSF/ANSI/CAN 61, NSF/ANSI 14
• Dimension A (inch): 1 17/64
• Dimension B (inch): 0.686
• Dimension C (inch): 1 1/64
• Dimension D (inch): 2.97
• Dimension E (inch): 1 3/64
• Dimension F (inch): 2.088
• Dimension G (inch): 1 3/32
• Dimension H (inch): 2.18
• Dimension I (inch): 13/16
