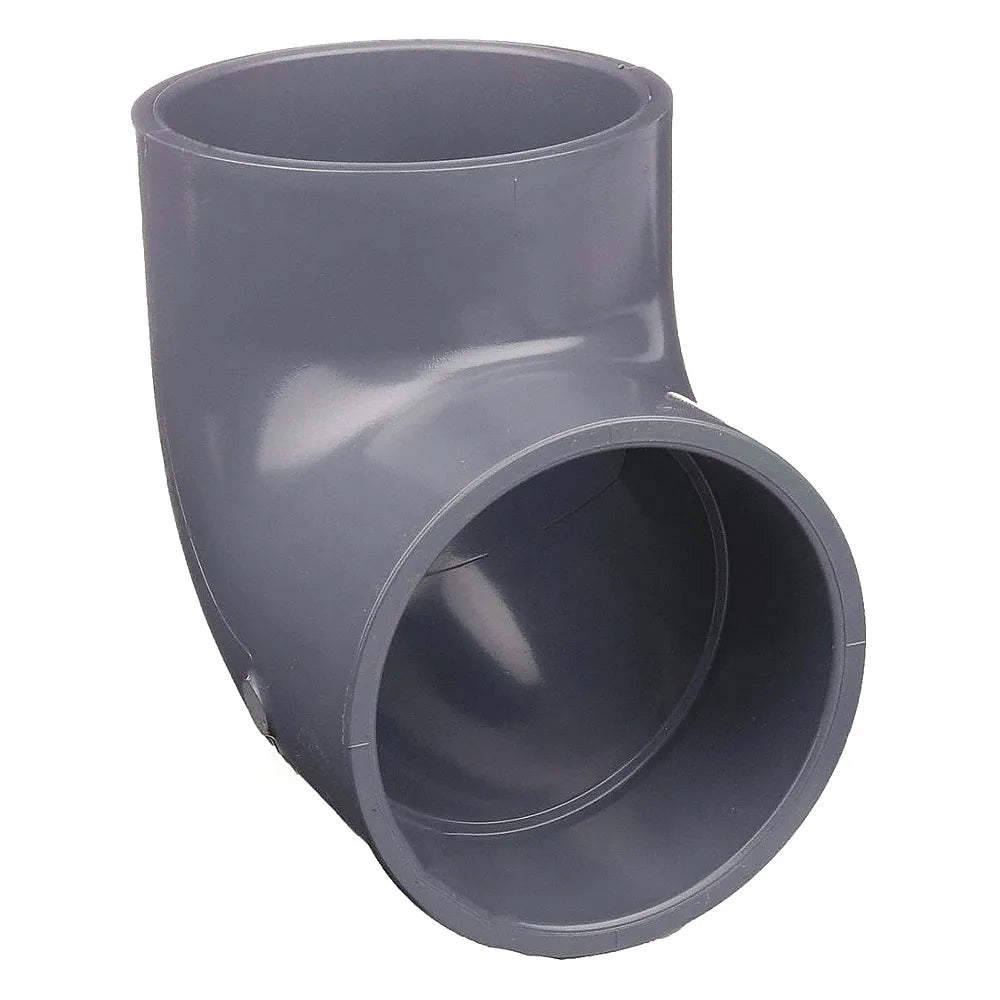

Georg Fischer 9806-080 elbow 90 CPVC 80 8 inch 150 psi

Product Description

The Georg Fischer 9806-080 is a 90-degree CPVC Schedule 80 elbow designed for connecting 8-inch pipes. This socket x socket fitting is suitable for both non-potable and potable water applications, offering a maximum operating pressure of 250 psi at 73 °F and a maximum temperature of 176 °F. It is RoHS compliant and low lead certified to FNS 61, ensuring compliance with industry standards. The elbow is constructed from durable CPVC material, providing reliable performance in various plumbing systems.

• 90-degree elbow design for directional changes in piping.
• Constructed from CPVC material, rated for Schedule 80 piping.
• Socket x socket connection type for 8-inch pipe size.

Product Highlights

Durable CPVC Schedule 80 elbow for 8-inch pipes, suitable for potable and non-potable water, with a 250 psi max operating pressure and RoHS compliance.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 9806-080

Technical Specifications

• Fitting Type: Elbow
• Fitting Angle: 90 degrees
• Applications: Non-potable water, potable water
• Body Material: CPVC
• Color: Gray
• Connection Type: Socket x socket
• Fitting Side A Gender: Female
• Nominal Pipe Size A: 8 inch
• Outside Diameter A: 9.75 inch
• Mounting Side Type A: Socket
• Fitting Side B Gender: Female
• Nominal Pipe Size B: 8 inch
• Outside Diameter B: 9.75 inch
• Mounting Side Type B: Socket
• Pipe Outside Diameter: 8 inch
• Pipe Schedule: 80
• Certifications: RoHS
• Plug Included: No
• Pre-applied Thread Sealant Included: No
• Seals Included: No
• Shield Included: No
• Low Lead Certification: FNS 61
• Max Operating Pressure: 250 psi at 73 °F
• Max Temperature: 176 °F
• Overall Length: 13.875 inch
• Standards: ASTM F439
• Operating Temperature Range: 32 °F to 200 °F
