Georg Fischer 861-136 Nipple 1 x 4 In

Product Description

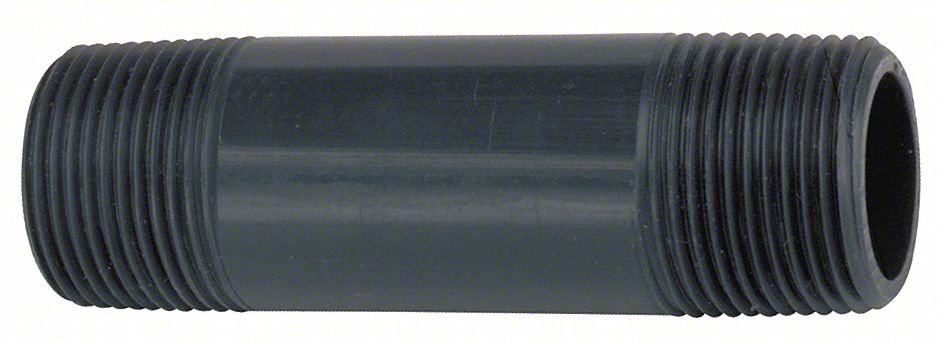

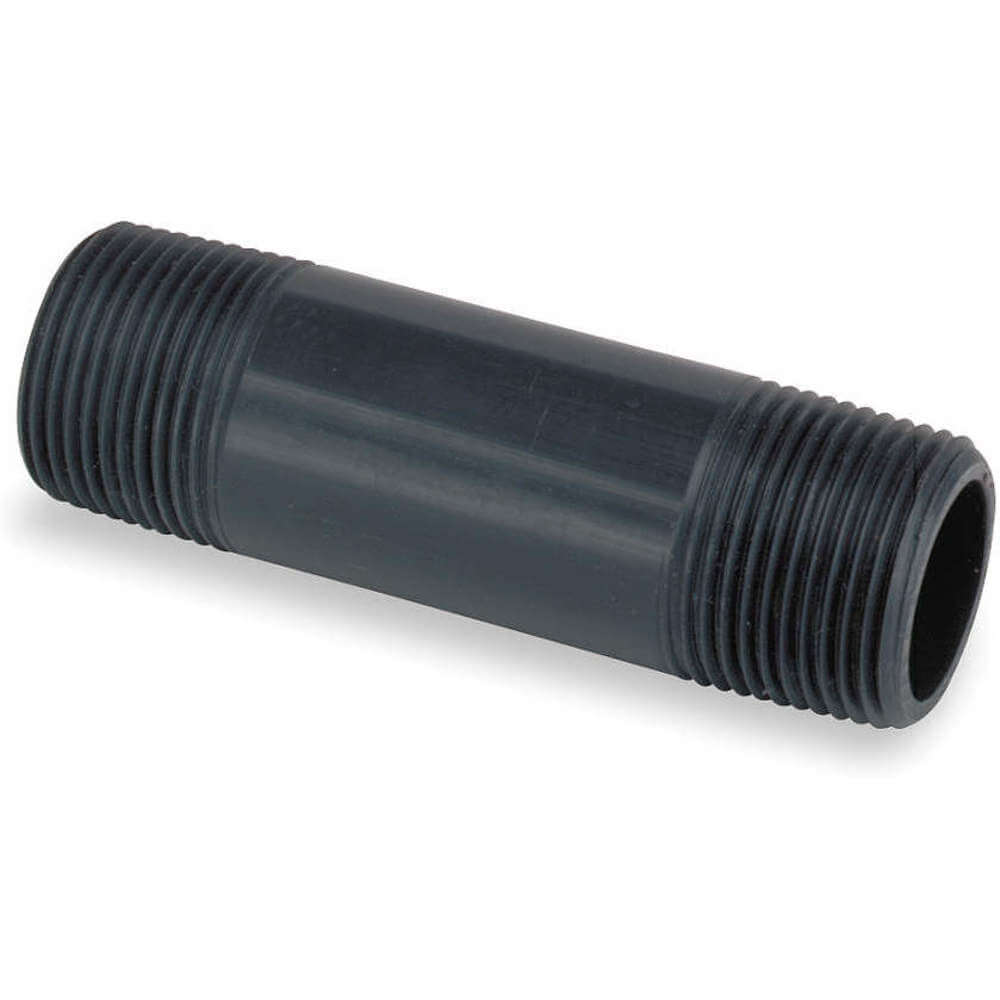

The Georg Fischer 861-136 is a PVC pipe nipple, measuring 1 x 4 inches, suitable for non-potable and potable water applications. It features threaded connections on both ends (Male NPT) and is compatible with Schedule 80 fittings. This nipple can withstand a maximum operating pressure of 160 psi at 73°F and a maximum temperature of 140°F, with a minimum operating temperature of 32°F.

• Suitable for non-potable and potable water applications.
• Features threaded connections (Male NPT) on both ends.
• Compatible with Schedule 80 fittings and meets ASTM D1784, ASTM D2467, NSF 14, NSF 61 standards.

Product Highlights

Designed for water applications, offering robust threaded connections and Schedule 80 compatibility.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 861-136
• Country of Origin: US

Technical Specifications

• Item: Pipe Nipple
• Model: 861-136
• Cross Reference: 6MW08
• HS Code: 3917400090
• Overall Length: 4 inches
• Application: Non-Potable Water, Potable Water
• Connection Type: Threaded
• Fitting Compatibility: Schedule 80
• Gravity Flow: No
• Material: PVC
• Maximum Operating Pressure: 160 psi at 73°F
• Maximum Operating Temperature: 140°F
• Minimum Operating Temperature: 32°F
• Nominal Pipe Size: 1 inch
• Outside Diameter: 1.315 inches
• Schedule: 80
• Side A Connection Type: Threaded
• Side A Gender: Male
• Side A Thread Type: NPT
• Side B Connection Type: Threaded
• Side B Gender: Male
• Side B Thread Type: NPT
• Standards: ASTM D1784, ASTM D2467, NSF 14, NSF 61
• Thread Configuration: Threaded On Both Ends
• Manufacturer: GEORG FISCHER CORPORATION
• Manufacturer Part Number: 861-136
• SKU: WWG-6MW08
• UNSPSC: 40142318
• TAA Compliant: Yes
• Unit of Issue: EA
