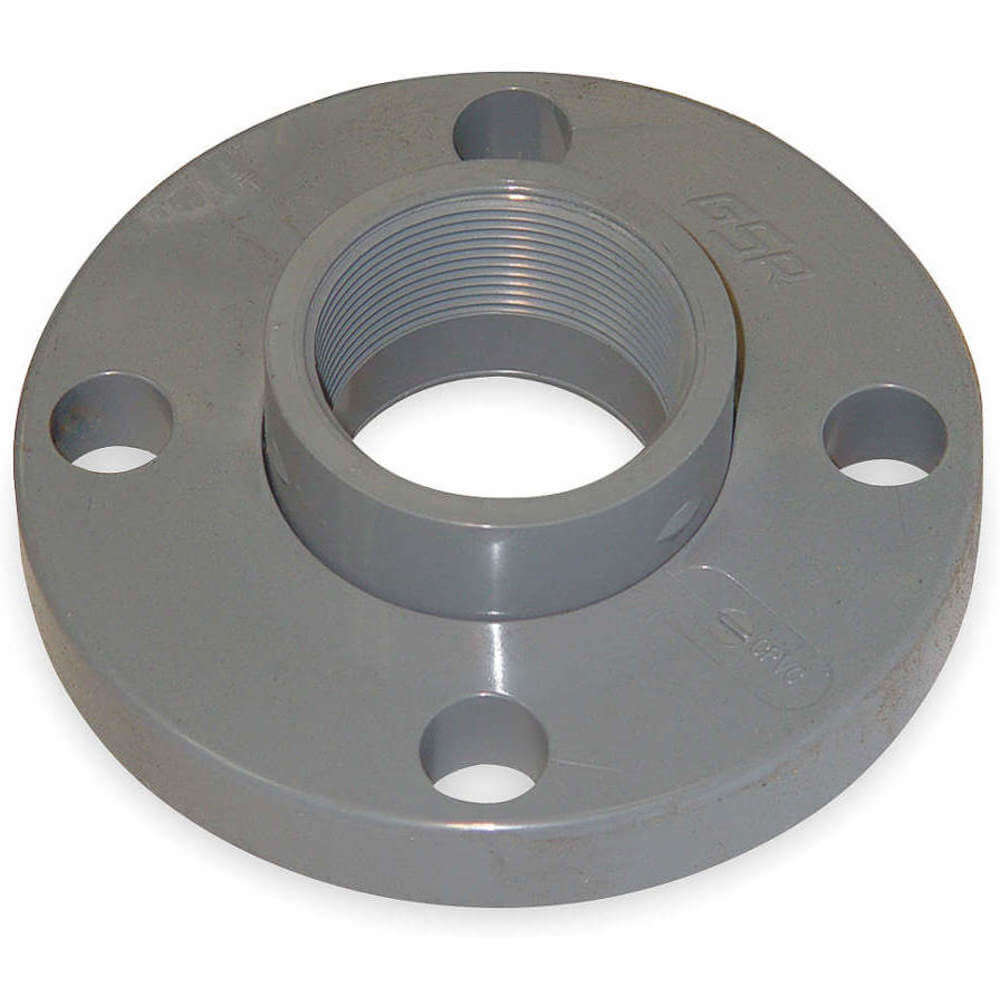

Georg Fischer 855015 Van-stone Flange 1 1/2 Inch Fpt Pvc

Product Description

The GEORG FISCHER 855015 van stone is a two-piece flange with a CPVC rotating ring for easy bolt alignment during installation. Its honeycomb face adds strength and stiffness to the flange. This Schedule 80 PVC unit is ideal for high-temperature and high-pressure applications.

• Two-piece flange with a CPVC rotating ring for easy bolt alignment
• Honeycomb face adds strength and stiffness
• Ideal for high-temperature and high-pressure applications

Product Highlights

Suitable for chemical processing, potable water systems, water & wastewater treatment, irrigation, agricultural and other applications involving corrosive fluid transfer.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 855015
• Country of Origin: US

Technical Specifications

• Item: Van-Stone Flange
• Application: Non-Potable Water, Potable Water
• Basic Fitting Shape: Flange
• Body Material: PVC
• Bolt Circle Diameter: 3 7/8"
• Bolt Hole Diameter: 1/2"
• Class: Class 150
• Color: Gray
• Connection Surface: Raised
• Connection Type: FNPT
• Fitting Connection Type: FNPT
• Flange Outside Diameter: 5"
• Flange Thickness: 3/4"
• For Pipe Schedule: 80
• Low Lead Certified Standard: Nsf61
• Max. Temp.: 140°F
• Maximum Operating Pressure: 150 psi
• Nominal Pipe Size: 1 1/2"
• Number Of Bolt Holes: 4
• Number Of Holes: 4
• Outside Dia.: 5"
• Overall Length: 1 5/8"
• Pipe Fitting Material: PVC
• Pipe Size: 1 1/2"
• Schedule: 80
• Specific Fitting Shape: Van Stone Flange
• Standards: Astm D1784, Nsf 14
• Temp. Range: 140°F
