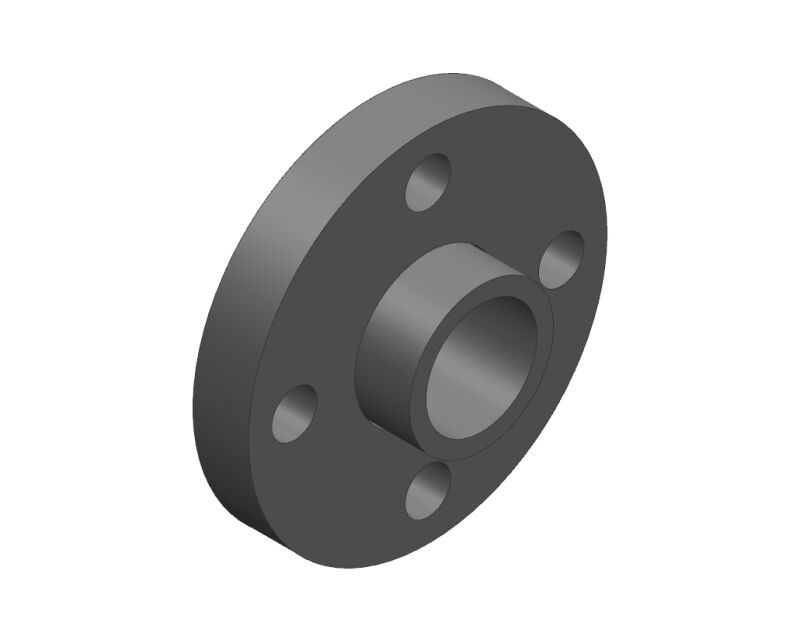

Georg Fischer 854-100 Pvc Van Stone Flange 10 Inch Sch 80

Product Description

The GEORG FISCHER 854-100 is a 10-inch Schedule 80 PVC van stone flange rated at 150 PSI at 73 degrees F. Van stone flanges feature a loose backing ring and a rotating flange face, which allows bolt holes to align without rotating the pipe itself. This design makes installation significantly easier in tight or already-assembled piping runs. Fabricated from Schedule 80 PVC, the flange delivers corrosion resistance suited to chemical, water treatment, and industrial fluid handling applications. Licensed plumbers and pipefitters are the primary installers of this fitting class.

This flange is intended for use in Schedule 80 PVC piping systems operating at or below 150 PSI at 73 degrees F. Typical applications include municipal water distribution, industrial process lines, chemical transfer systems, and commercial plumbing infrastructure where a full-face or raised-face flange connection is required at a 10-inch pipe junction. The van stone style is especially useful where frequent disassembly or inspection of flanged joints is anticipated.

Key Features

• 10-inch pipe size with Schedule 80 PVC construction for elevated pressure capability
• Rated to 150 PSI at 73 degrees F for demanding fluid handling service
• Van stone design allows bolt-hole alignment without rotating the pipe
• PVC material provides broad chemical resistance and corrosion-free service life
• Compatible with standard 150-class flange bolt patterns

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVC piping systems requiring a 10-inch van stone flange connection rated at 150 PSI.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC and local plumbing codes. Depressurize and drain the piping system completely before cutting into any existing line. Use appropriate PVC solvent cement rated for Schedule 80 fittings on the spigot end, and allow full cure time before pressurizing. Do not exceed the rated pressure or temperature limits of the fitting or the adjoining pipe.

Technical Specifications

• Pipe Size: 10 inches
• Schedule: Schedule 80
• Pressure Rating: 150 psi at 73 degrees F
• Material: PVC
• Weight: 13.36 pounds
• UPC: 083475027307

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 854-100
