Georg Fischer 854-040 Van Stone Flange 4 In

Product Description

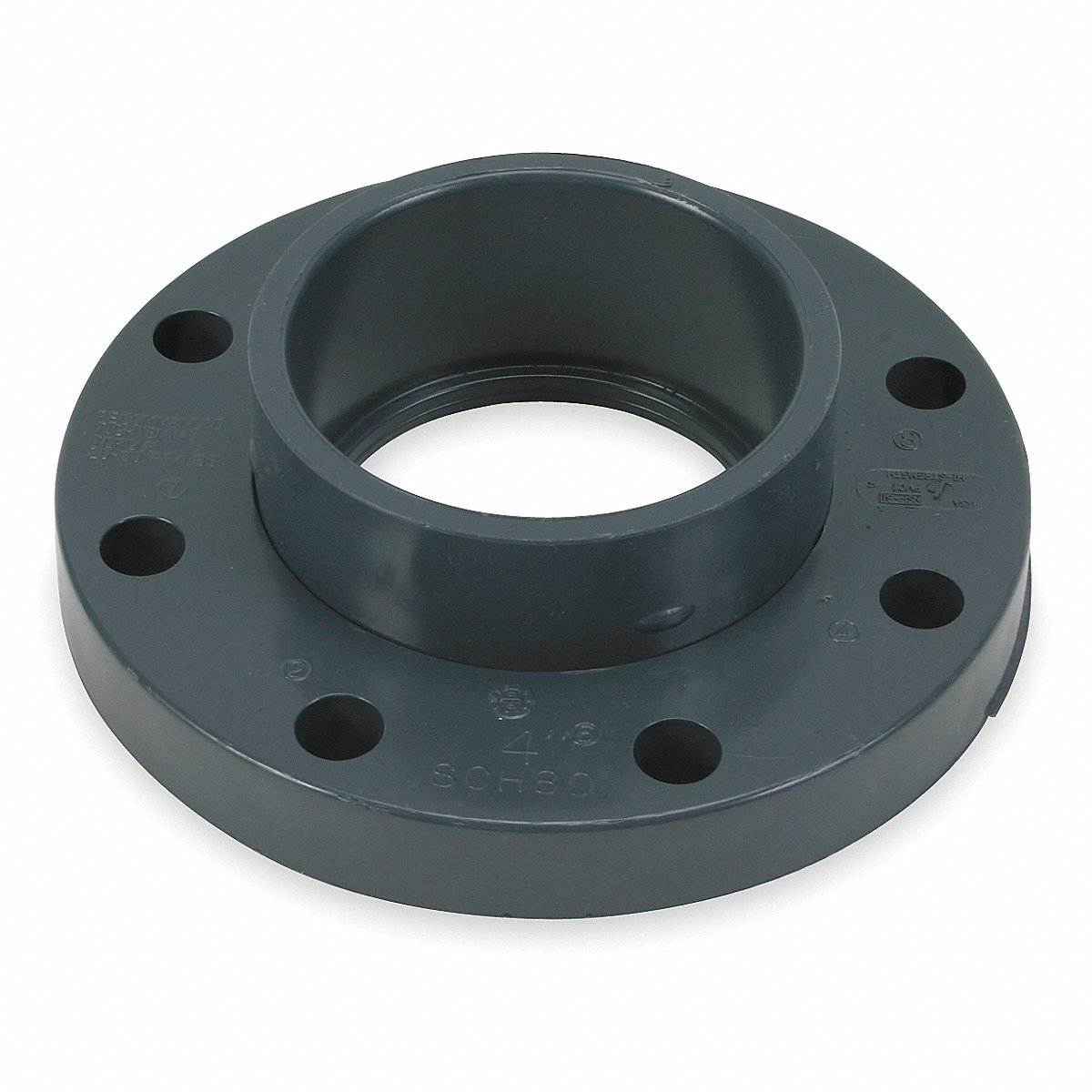

The GEORG FISCHER 854-040 Van Stone Flange is a 4-inch, Schedule 80 fitting designed for various piping applications. It features a socket end connection and is suitable for media types including chemicals, acids, potable water, and non-potable water. This flange operates within a pressure range of 0 to 299 psi and has a maximum operating temperature of 140 degrees F. The sealing method for this fitting is cement. It meets NSF 14, NSF 61, and ASTM D1784 standards.

• 4-inch nominal pipe size with Schedule 80 construction and socket end connection.
• Suitable for chemicals, acids, potable water, and non-potable water applications.
• Meets NSF 14, NSF 61, and ASTM D1784 standards, with a cement sealing method.

Product Highlights

A 4-inch Schedule 80 Van Stone Flange with socket end, suitable for diverse fluid handling and meeting industry standards.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 854-040
• Country of Origin: US

Technical Specifications

• Fitting Shape: Flange
• Schedule: Schedule 80
• Color: Gray
• Maximum Operating Temperature: 140 Degrees F
• Standards: NSF 14, NSF 61, ASTM D1784
• Sealing Method: Cement
• Nominal Pipe Size: 4 in
• End Connection Type: Socket
• Pressure Range: 0 to 299 psi
• Media Type: Chemicals, Acids, Potable Water, Non-Potable Water
• Gender: Female
