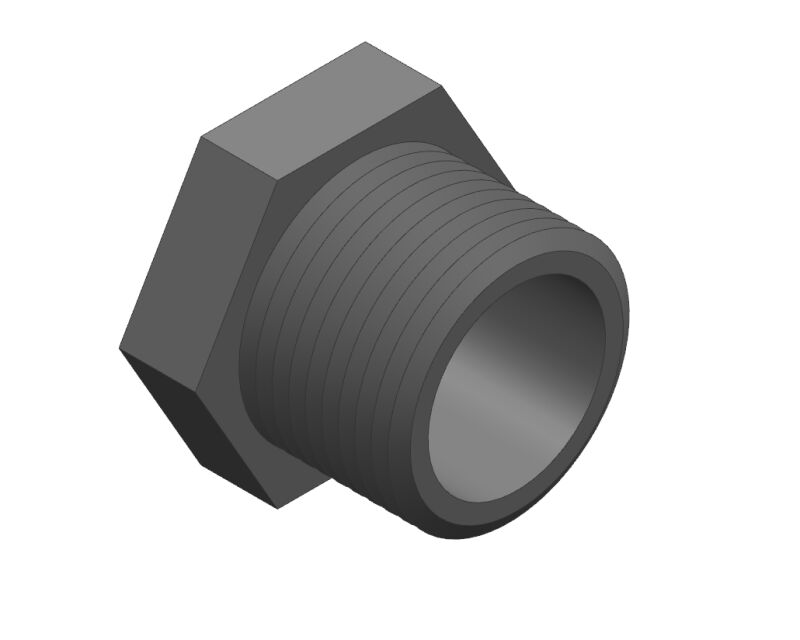

Georg Fischer 850-020 Pvc Plug 2 in Mpt 200 Psi Sch 80

Product Description

The GEORG FISCHER 850-020 is a Schedule 80 PVC threaded plug designed to seal male pipe thread (MPT) openings in pressurized plumbing systems. Rated at 200 PSI at 73 degrees F, this 2-inch plug delivers reliable pressure containment in systems where a dead-end seal is required. Constructed from PVC, it offers solid chemical resistance for a wide range of fluid handling applications. Plumbers and pipefitters install this type of plug during system testing, maintenance isolation, or as a permanent end cap on unused branch outlets.

This plug is suited for residential and light commercial plumbing, irrigation, and industrial fluid distribution systems where Schedule 80 PVC fittings are specified. It threads directly onto 2-inch male pipe thread connections and is commonly installed in drain, waste, and vent configurations, as well as cold water supply and chemical distribution lines where PVC is an approved material. It is not intended for high-temperature service or systems carrying compressed air or gas.

Key Features

• 200 PSI pressure rating at 73 degrees F for reliable system sealing
• Schedule 80 PVC construction provides greater wall thickness than Schedule 40
• 2-inch MPT thread mates directly to standard female-threaded fittings and valves
• Chemical-resistant PVC material suitable for a broad range of fluid applications
• Lightweight at 0.17 pounds for easy handling and installation in tight spaces

Compatibility

Designed as an OEM-style replacement or standard fitting for 2-inch Schedule 80 PVC plumbing systems using male pipe thread connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Depressurize and isolate the system before threading the plug into place. Apply a compatible thread sealant or PTFE tape to the male threads before installation to ensure a leak-free seal. Do not overtighten, as PVC fittings can crack under excessive torque.

Technical Specifications

• Material: PVC
• Pressure Rating: 200 PSI at 73 degrees F
• Schedule: Schedule 80
• Thread Type: MPT (Male Pipe Thread)
• Size: 2 inches
• Length: 1.47 inches
• Weight: 0.17 pounds
• Product Category: Plumbing
• UPC: 083475026652

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 850-020
