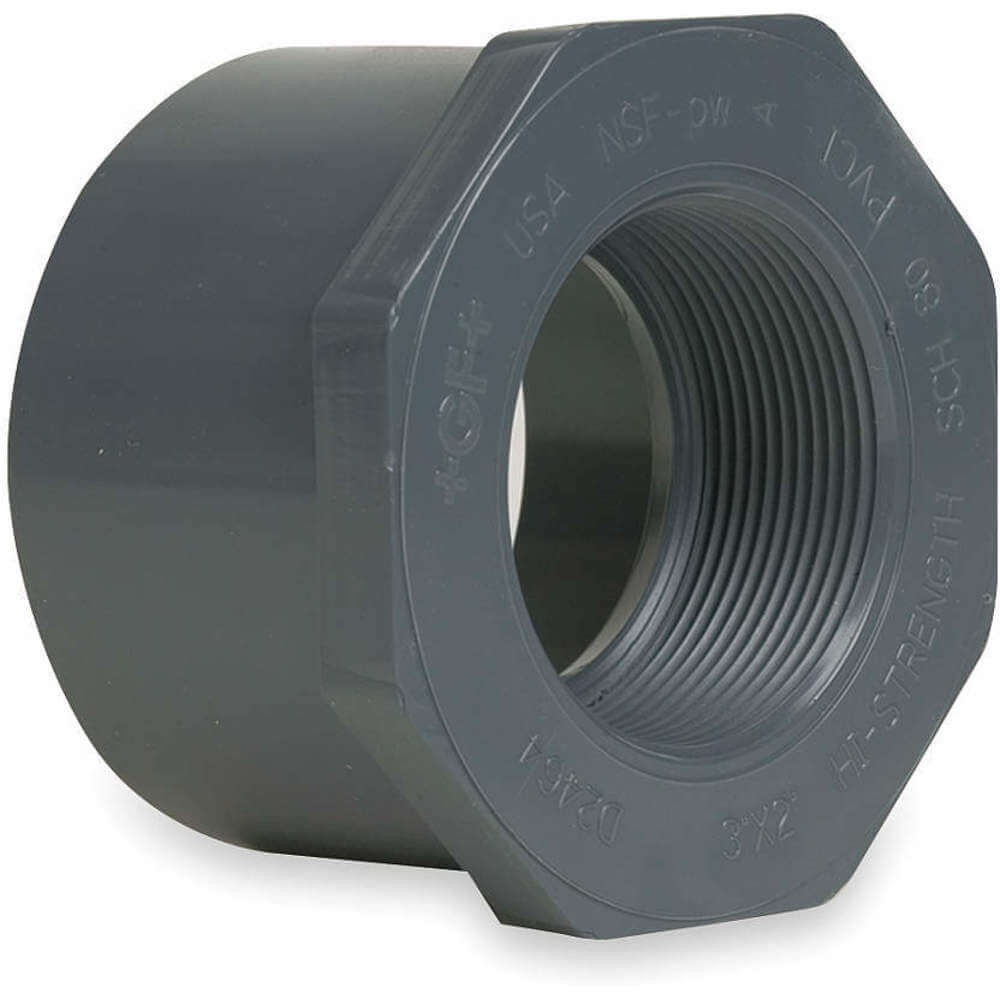

Georg Fischer 838-250 reducer bushing 2 x 1-1/4in

Product Description

The Georg Fischer 838-250 Reducer Bushing is a Schedule 80 PVC fitting designed for plumbing applications, suitable for both non-potable and potable water systems. This reducing bushing features a 2 x 1-1/4 inch Spigot x FNPT connection, compliant with ASTM D2467 standards and NSF 61 low lead certified. It can operate at a maximum pressure of 260 psi at 73°F and an operating temperature range of 32°F to 140°F.

• Reducer bushing with 2 x 1-1/4in Spigot x FNPT connection for plumbing applications.
• Constructed from durable Schedule 80 PVC, suitable for potable and non-potable water systems.
• Withstands 260 psi at 73°F and operates within 32°F to 140°F, NSF 61 low lead certified.

Product Highlights

Durable Schedule 80 PVC reducer bushing for plumbing, NSF 61 certified, with 2 x 1-1/4in Spigot x FNPT connections.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 838-250
• Country of Origin: US

Technical Specifications

• Application: Non-Potable Water, Potable Water
• Fitting Shape: Bushing
• Body Material: PVC
• Connection Type: Spigot x FNPT
• Fitting Side A Gender: Male
• Fitting Side A Nominal Pipe Size: 2"
• Fitting Side A Outside Diameter: 2 3/8"
• Fitting Side A Type: Spigot
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 1 1/4"
• Fitting Side B Outside Diameter: 2 9/16"
• Fitting Side B Pipe Threading: 11.5
• Fitting Side B Type: NPT
• Pipe Schedule: 80
• Hex Size: 2 9/16"
• Included Plug: No
• Included Pre-applied Thread Sealant: No
• Included Seals: No
• Included Shield: No
• Low Lead Certified Standard: NSF 61
• Maximum Operating Pressure: 260 psi @ 73°F
• Operating Temperature Range: 32°F to 140°F
• Overall Length: 1 3/4"
• Pipe Size: 2" x 1 1/4"
• Specific Fitting Shape: Reducing Bushing
• Standards: ASTM D2467
