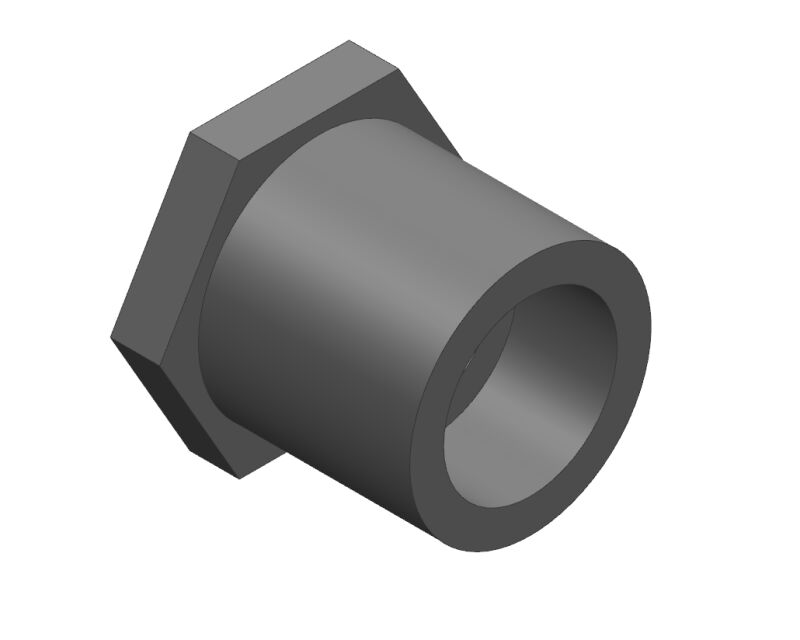

Georg Fischer 838-249 Pvc Reducer Bushing 2x1 Inch SCH80

Product Description

The GEORG FISCHER 838-249 is a flush-style reducer bushing manufactured from Schedule 80 PVC, rated at 315 PSI at 73 degrees F. It transitions a 2-inch pipe down to a 1-inch female pipe thread (FPT) connection using a spigot (SPG) inlet. The flush-style design sits flat against the fitting face, minimizing installed length. This bushing is used by plumbers and pipefitters working on pressure-rated PVC piping systems in commercial and industrial applications where corrosion resistance and chemical compatibility are required.

This reducer bushing fits into Schedule 80 PVC piping assemblies used in chemical handling, irrigation, industrial process lines, and commercial plumbing systems. The spigot end is sized to insert directly into a Schedule 80 socket fitting, while the female pipe thread outlet accepts a standard NPT male threaded component. At 0.22 pounds, it is lightweight and easy to handle during installation in tight spaces or prefabricated assemblies.

Key Features

• 315 PSI pressure rating at 73 degrees F for high-pressure PVC system compatibility
• Schedule 80 PVC construction for increased wall thickness and chemical resistance
• Flush-style body reduces overall installed length compared to hex-style bushings
• Spigot x Female Pipe Thread (FPT) configuration for versatile connection types
• 2-inch to 1-inch reduction handles common step-down transitions in pressure piping
• Lightweight at 0.22 pounds, suitable for prefab and overhead installations

Compatibility

Designed as an OEM-style replacement or new-installation component for Schedule 80 PVC pressure piping systems requiring a 2-inch spigot to 1-inch female pipe thread reducer bushing.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable IPC and local plumbing codes. Solvent-cement the spigot end into the mating Schedule 80 socket fitting using PVC-rated cement and primer, following the cement manufacturer's cure time before pressurizing. Thread connections should be made with PTFE tape or thread sealant rated for PVC. De-pressurize and drain the system fully before beginning any fitting work.

Technical Specifications

• Material: PVC
• Schedule: Schedule 80
• Pressure Rating: 315 PSI at 73 degrees F
• Inlet Size: 2 inches (Spigot)
• Outlet Size: 1 inch (Female Pipe Thread)
• Connection Type: Spigot x FPT
• Style: Flush
• Length: 1.8 inches
• Weight: 0.22 pounds
• UPC: 083475025617

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 838-249
