Georg Fischer 838-072 Reducer Bushing 1/2 x 1/4 Inch

Product Description

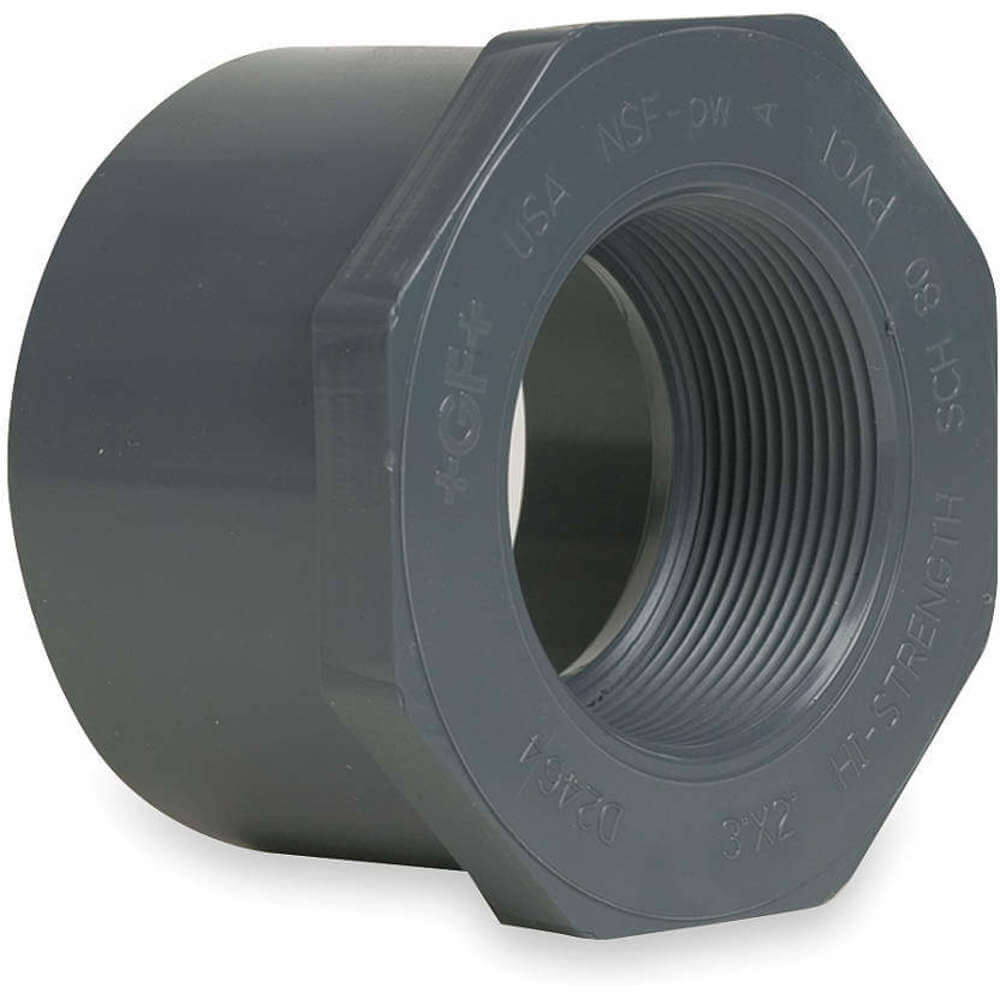

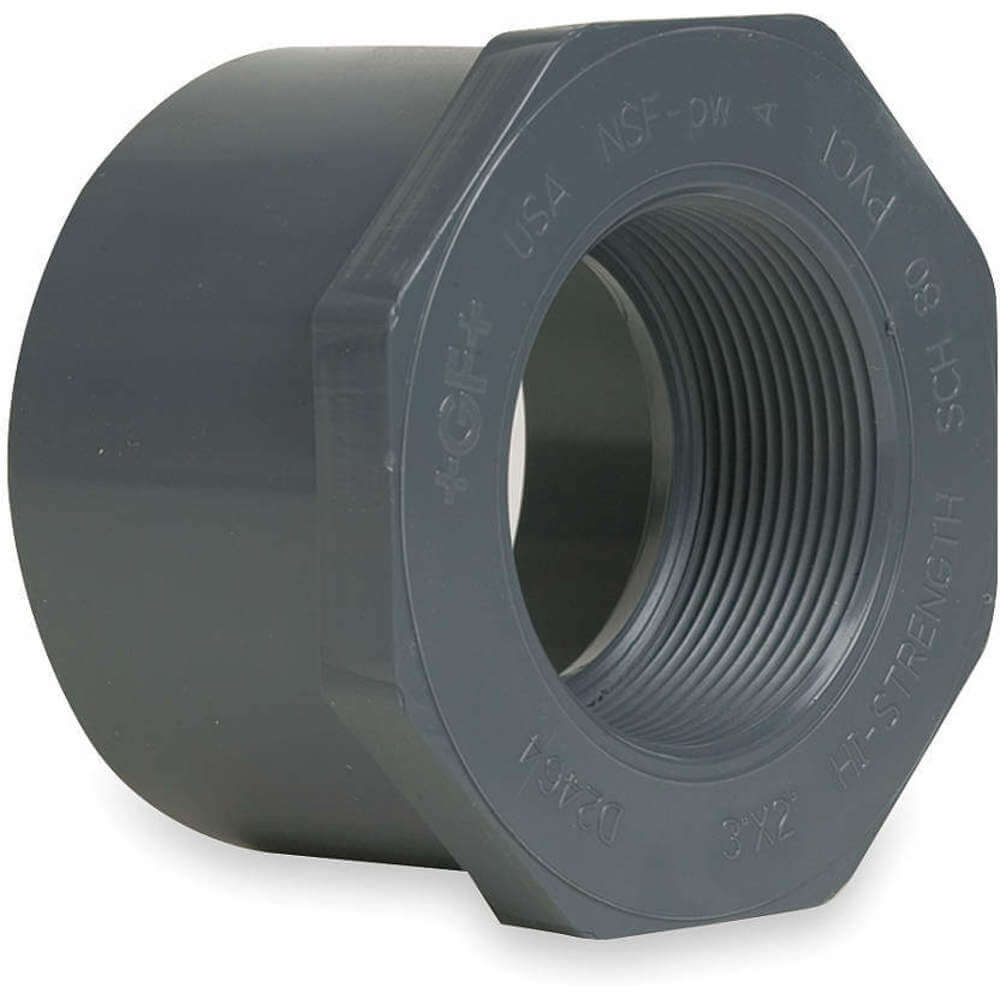

The GEORG FISCHER 838-072 is a PVC reducer bushing designed for both non-potable and potable water applications. This schedule 80 fitting features a spigot x FNPT connection, with a male 1/2 inch spigot on side A and a female 1/4 inch NPT on side B. It is rated for a maximum operating pressure of 565 psi at 73°F and a maximum temperature of 140°F, conforming to ASTM D2467 standards.

• Suitable for non-potable and potable water applications.
• Features a 1/2 inch spigot (male) to 1/4 inch FNPT (female) connection.
• Rated for 565 psi at 73°F and a maximum temperature of 140°F.

Product Highlights

Durable PVC reducer bushing for water systems, offering reliable spigot to FNPT connection.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 838-072
• Country of Origin: US

Technical Specifications

• Fitting Type: Reducing Bushing
• Application: Non-Potable Water, Potable Water
• Basic Fitting Shape: Bushing
• Body Material: PVC
• Color: Gray
• Connection Type: Spigot x FNPT
• Fitting Side A Gender: Male
• Fitting Side A Nominal Pipe Size: 1/2"
• Fitting Side A Outside Diameter: 13/16"
• Fitting Side A Type: Spigot
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 1/4"
• Fitting Side B Outside Diameter: 1"
• Fitting Side B Pipe Threading: 18
• Fitting Side B Type: NPT
• For Pipe Outside Diameter: 1/2"
• Pipe Schedule: 80
• Hex Size: 1"
• Included Plug: No
• Included Pre-applied Thread Sealant: No
• Included Seals: No
• Included Shield: No
• Certifications: NSF 61
• Maximum Operating Pressure: 565 psi @ 73°F
• Maximum Temperature: 140°F
• Overall Length: 1 1/8"
• Pipe Size: 1/2" x 1/4"
• Standards: ASTM D2467
• Temperature Range: 32°F to 140°F
