Georg Fischer 801421FB SCH80 Pvc Reducing Tee 4x2.5 in

Product Description

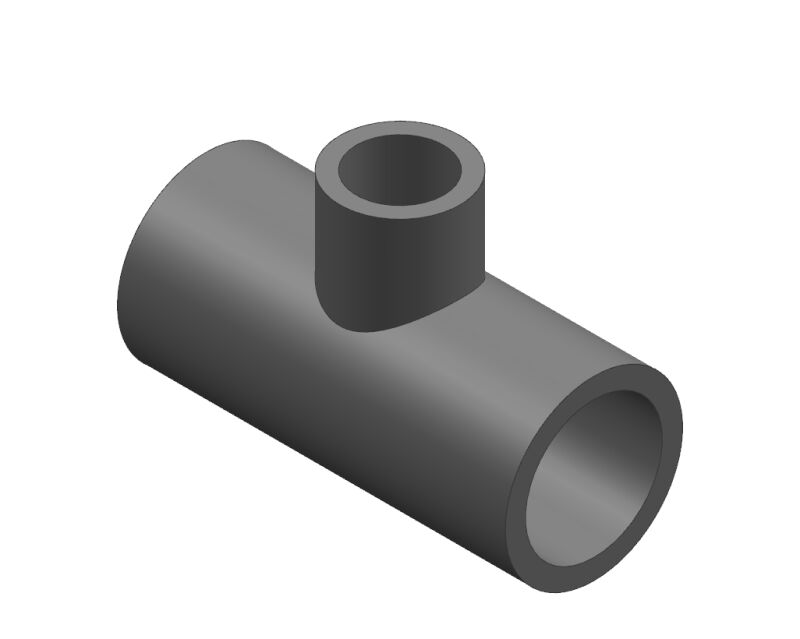

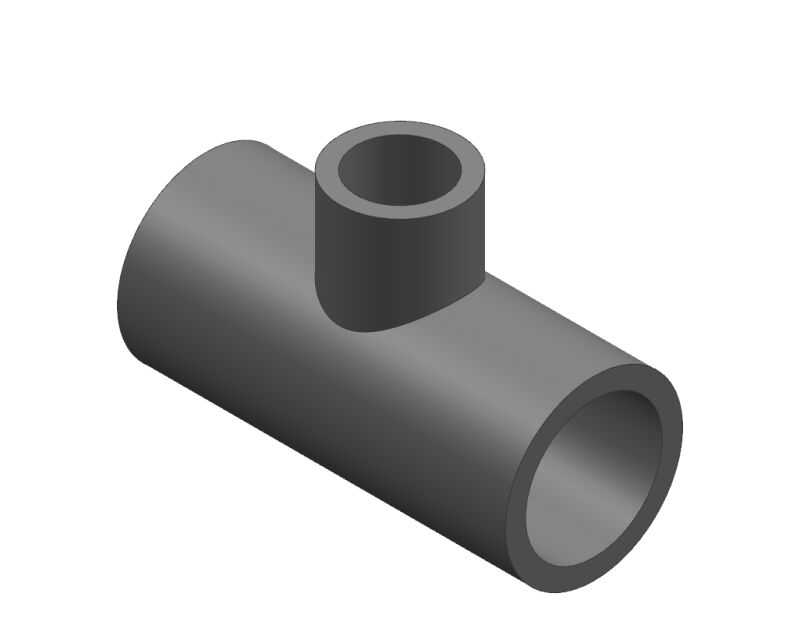

The GEORG FISCHER 801421FB is a Schedule 80 PVC reducing tee configured in a socket by socket by socket (SxSxS) connection style with a bushed outlet. Measuring 4 inches by 2-1/2 inches, this fitting reduces flow from a 4-inch main run down to a 2-1/2-inch branch outlet. It is built from rigid PVC, making it well suited for pressure-rated plumbing and industrial piping systems where corrosion resistance and chemical compatibility are priorities. Licensed plumbers and pipefitters install this type of fitting in both above-ground and below-ground configurations depending on local code requirements.

This fitting is used in residential and commercial plumbing systems where a branch connection and a simultaneous pipe reduction are needed in a single fitting. The SCH80 pressure rating makes it appropriate for higher-pressure applications compared to Schedule 40 alternatives. Typical install scenarios include irrigation mainlines, industrial process piping, chemical distribution, and drain or supply lines where PVC is the specified material.

Key Features

• Schedule 80 PVC construction for higher pressure ratings versus SCH40 fittings
• SxSxS (socket by socket by socket) configuration accepts solvent-weld connections on all three ports
• Bushed outlet reduces the branch port from 4 inches to 2-1/2 inches in one fitting
• Rigid PVC material provides corrosion resistance and compatibility with a broad range of fluids
• Reduces need for separate reducer bushing, simplifying installation and minimizing potential leak points

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVC piping systems using solvent-weld socket connections in plumbing and industrial applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC standards. Depressurize and drain the line completely before cutting into an existing system. Use the appropriate PVC primer and solvent cement rated for Schedule 80 fittings, and allow full cure time before restoring pressure. Do not apply heat or use this fitting with incompatible solvents or fluids outside the rated chemical resistance of PVC.

Technical Specifications

• Material: PVC
• Schedule: Schedule 80
• Connection Type: Socket x Socket x Socket (SxSxS), Bushed
• Run Size: 4 inches
• Branch Size: 2-1/2 inches
• Weight: 3.77 pounds

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 801421FB
