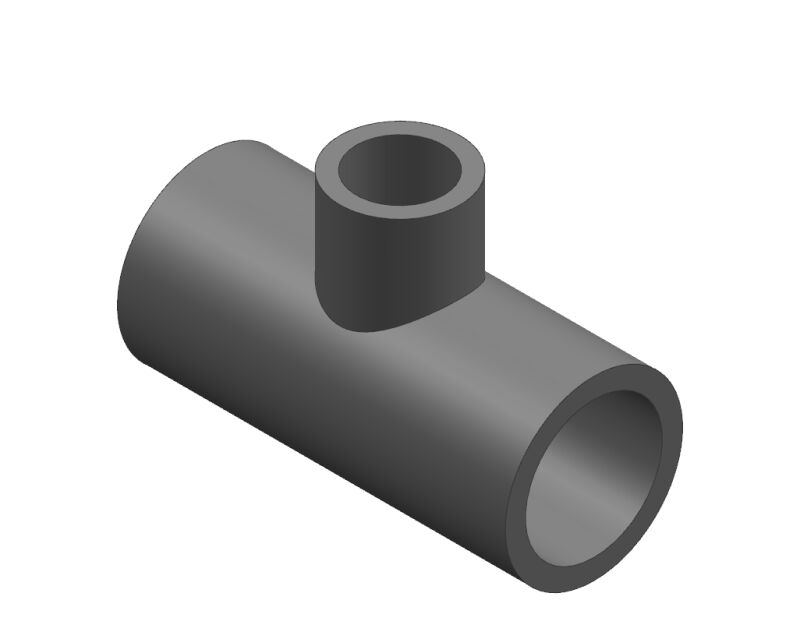

Georg Fischer 801-250FB SCH80 Pvc Reducing Tee 2x1-1/4 in

Product Description

The GEORG FISCHER 801-250FB is a Schedule 80 PVC reducing tee designed for pressure piping systems where a branch connection of a smaller diameter is required. This fitting uses a socket-by-socket-by-socket (SxSxS) configuration and accepts a bushed reduction, transitioning from a 2-inch run to a 1-1/4-inch branch. The Schedule 80 wall thickness provides greater pressure ratings and mechanical strength compared to Schedule 40, making it suitable for demanding industrial and commercial plumbing applications. Licensed plumbers and pipefitters install this type of fitting in chemical distribution, irrigation, and process piping systems.

This reducing tee is used in residential, commercial, and light industrial piping systems where PVC pressure fittings are specified. The SxSxS socket ends are solvent-welded to matching Schedule 80 PVC pipe, creating a permanent, leak-resistant joint. Typical installations include water distribution lines, chemical handling systems, and irrigation manifolds where a reduced-diameter branch takeoff is needed without the use of a separate bushing fitting.

Key Features

• Schedule 80 PVC construction for higher pressure ratings and added wall thickness versus Schedule 40
• Bushed reducing tee design combines run and branch size reduction in a single fitting
• Socket-by-socket-by-socket (SxSxS) ends accept standard solvent-cement joints
• 2-inch run by 1-1/4-inch branch configuration suits common residential and commercial piping transitions
• PVC material offers corrosion resistance suitable for water and many chemical service applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with Schedule 80 PVC piping systems using 2-inch run pipe and 1-1/4-inch branch pipe with solvent-weld socket connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable IPC or local plumbing code requirements. Shut off and depressurize the piping system fully before cutting into existing lines. Use a PVC-rated primer and Schedule 80-rated solvent cement for all socket joints, following the cement manufacturer's cure time before restoring system pressure. Do not apply heat to PVC fittings during installation.

Technical Specifications

• Material: PVC
• Schedule: Schedule 80
• Run Size: 2 inches
• Branch Size: 1-1/4 inches
• Connection Type: Socket x Socket x Socket (SxSxS)
• Weight: 1.09 pounds
• UPC: 083475020391

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 801-250FB
