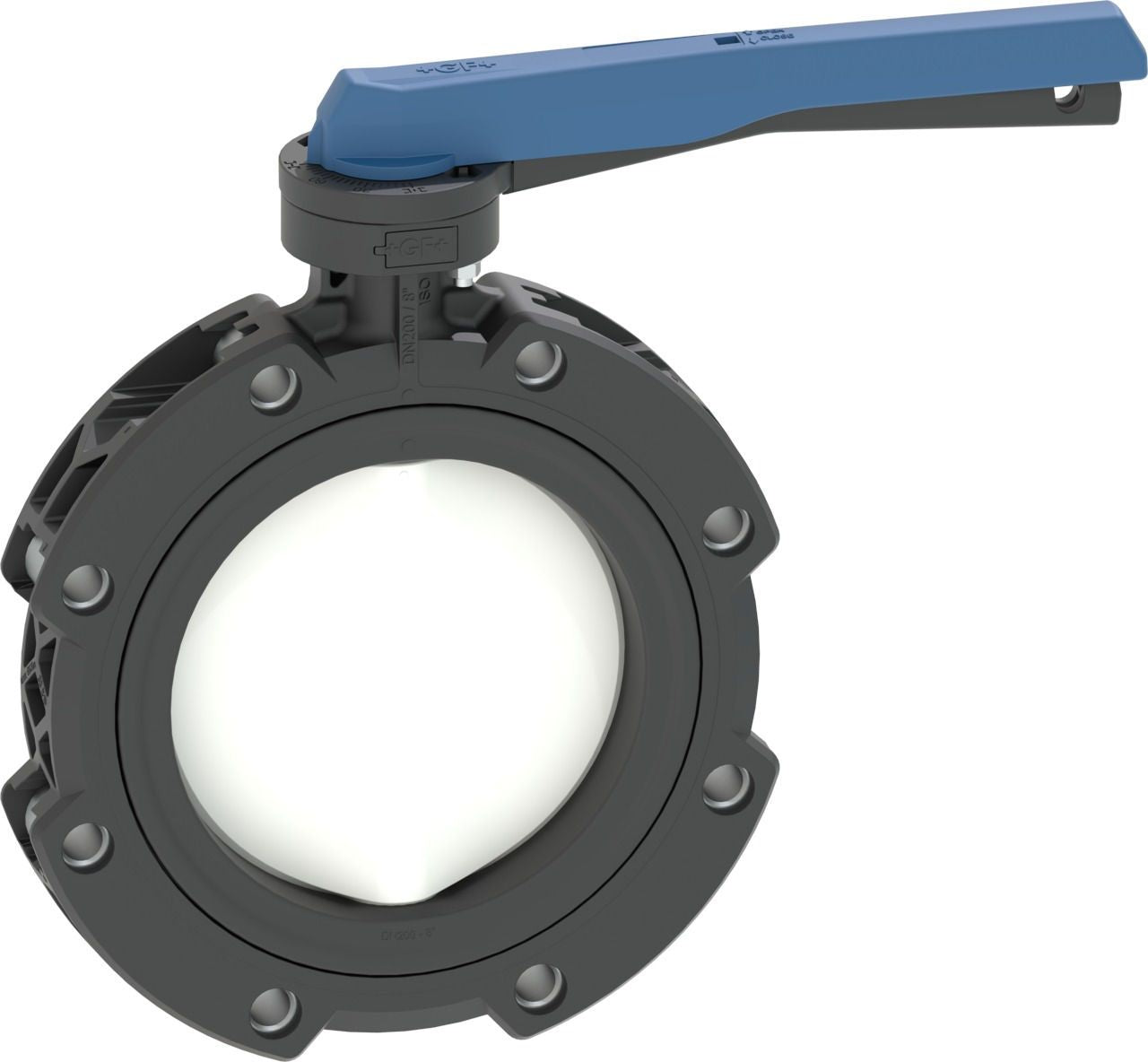

Georg Fischer 199576001 type 565 series 2-1/2 in butterfly valve

Product Description

The GEORG FISCHER 199576001 Type 565 Series Butterfly Valve is engineered with a Polyamide PA6-60 body and PVDF disc, offering robust chemical resistance and longevity. This 2-1/2 inch lug-style valve features an EPDM seal and 316 stainless steel stem, operated by a manual lever. It is designed for versatile applications including chemical handling, cooling, and water treatment systems, ensuring reliable flow control.

• Direct replacement for metal butterfly valves with the same installation length.
• Constructed with a Polyamide PA6-60 body and PVDF disc for enhanced chemical resistance.
• NSF 61 Certified, providing rust and corrosion resistance for water and water treatment applications.

Product Highlights

Durable Polyamide PA6-60 body and PVDF disc butterfly valve with manual lever, suitable for chemical and water treatment systems, compatible with various piping materials and ANSI/ASTM/ASME flange standards.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 199576001
• Country of Origin: Italy

Technical Specifications

• Manufacturer: Georg Fischer
• Body Material: Polyamide PA6-60
• Disc Material: Polyamide PA6-60/PVDF
• Operator: Lever
• Seal Material: EPDM
• Series: Type 565
• Size: 2-1/2 in
• Stem Material: 316 Stainless Steel
• Product Type: Butterfly Valve
• Lug Material: Stainless Steel
• Connection Type: Lug
• Face-to-face Dimension Standard: EN558 series 20, ISO 5752 series 20, API 609 tab. 2
• Flange Standards: ANSI/ASME B 16.5 Class 150, BS 1560: 1989 Class 125/150; BS 4504 PN10/16
• Nominal Diameter (d): 75 mm
• Nominal Size (DN): 65 mm
• Pressure Nominal (PN): 16
• Kv-value (Δp=1 bar): 2530 l/min
