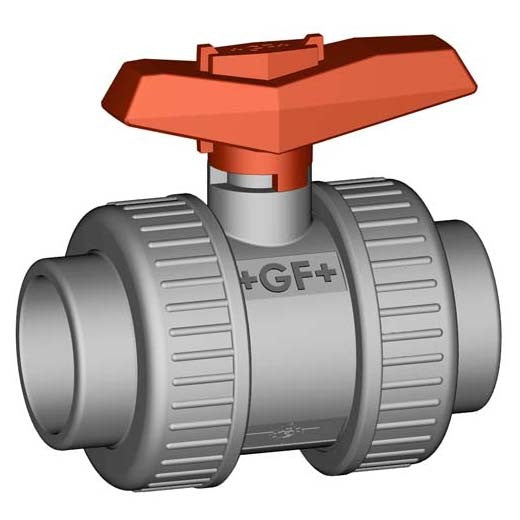

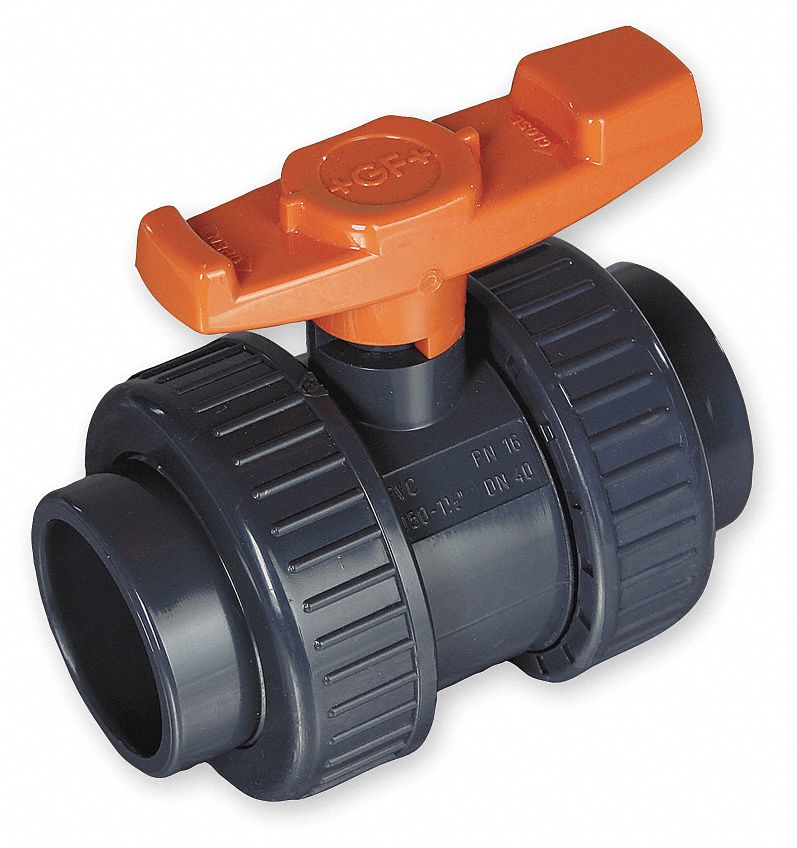

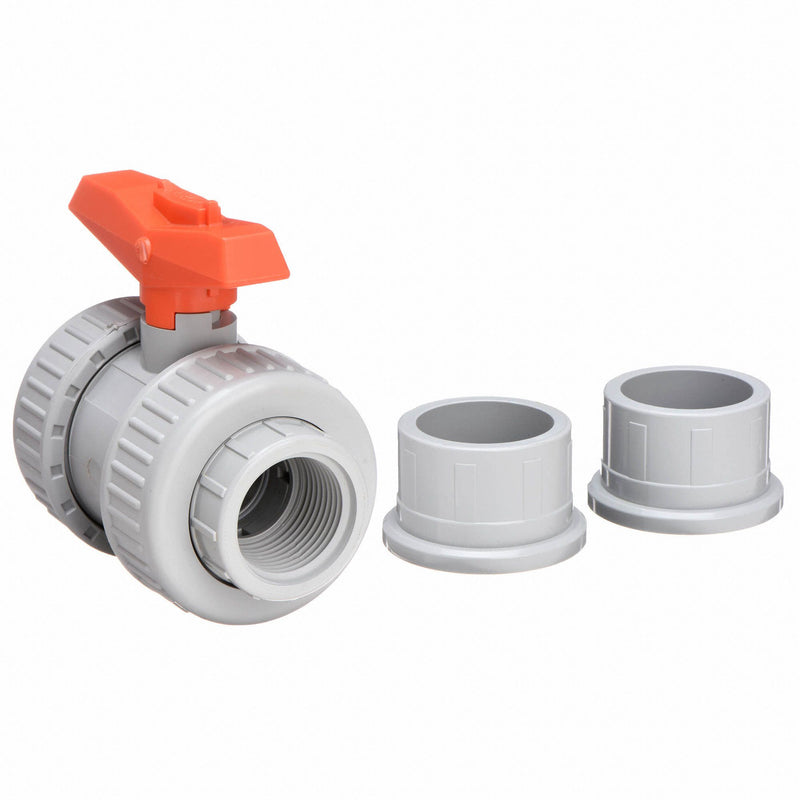

Georg Fischer 163375006 Ball Valve 375 CPVC 1-1/2 Inch Socket/Threaded True Union EPDM

Product Description

The GEORG FISCHER 163375006 Ball Valve 375 is constructed from CPVC, a chlorinated polymer similar to PVC. This material offers comparable chemical resistance to PVC but is more ductile and can withstand higher temperatures. It is designed for inline true union applications, featuring a 1-1/2 inch pipe size with socket/threaded connections and EPDM seals.

• CPVC construction provides chemical resistance and enhanced ductility.
• Capable of withstanding higher temperatures compared to standard PVC.
• Features Socket/FNPT x Socket/FNPT connection type with EPDM body seals.

Product Highlights

CPVC ball valve for demanding applications requiring chemical resistance and higher temperature tolerance.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 163375006

Technical Specifications

• MPN: 163375006
• Brand: Georg Fischer
• Pipe Size: 1-1/2 Inch
• Body Material: CPVC
• Body Style: Inline True Union
• Valve Structure: 2-Piece
• Connection Type: Socket/FNPT x Socket/FNPT
• Port: Full
• Max Pressure: 232 psi @ 73 Degrees F
• Max Steam Pressure: 0 psi WSP
• Temperature Range: 32 Degrees to 176 Degrees F
• Ball Material: CPVC
• Seat Material: PTFE
• Stem Type: Blowout Proof
• Handle Type: Tee
• Handle Material: PVC
• Stem Material: CPVC
• Body Seal Material: EPDM
• Product Group: Manual
• Basic Body Material: Plastic
• Standards: ASTM 1970-01, ASTM D1784, FDA, NSF 61, USP Class VI
• Type: 375 valve
• CV: 112
