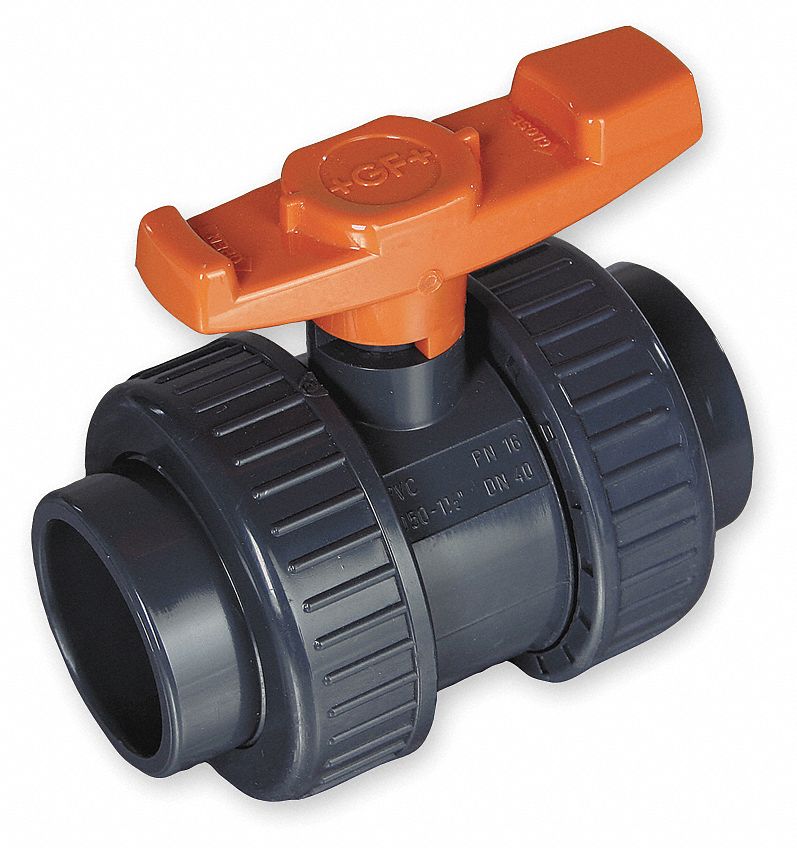

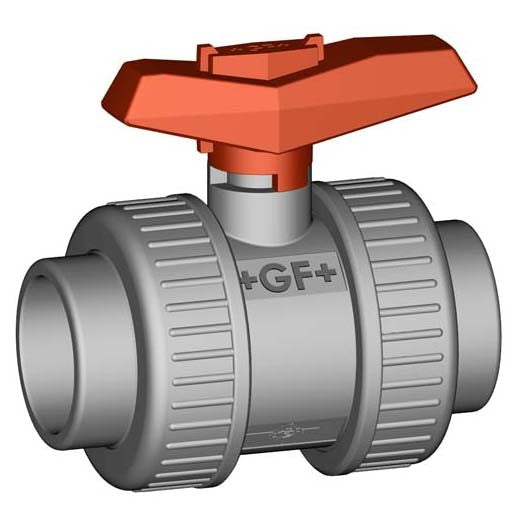

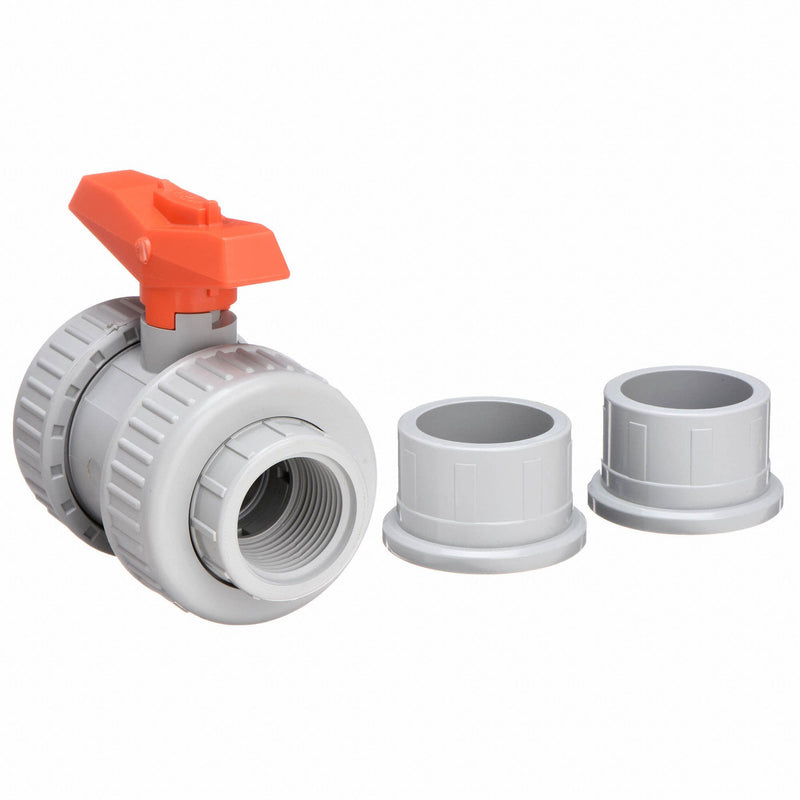

Georg Fischer 163375004 Ball Valve 375 CPVC True Union EPDM 1 Inch

Product Description

The GEORG FISCHER 163375004 Ball Valve is a 1-inch CPVC type 375 valve designed for various fluid control applications. Featuring CPVC construction, it offers chemical resistance similar to PVC but with enhanced ductility and higher temperature tolerance. This full port valve includes a PTFE seat and an EPDM body seal, ensuring reliable performance. It is suitable for systems requiring robust and durable flow control.

• CPVC type 375 construction provides chemical resistance and higher temperature tolerance.
• Features a full port design and PTFE seat for efficient flow control.
• EPDM body seal ensures reliable sealing and durability in operation.

Product Highlights

This GEORG FISCHER 163375004 ball valve offers durable CPVC construction, a full port design, and PTFE seating for effective fluid regulation in demanding environments.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 163375004

Technical Specifications

• Valve Type: 375
• Flow Coefficient (Cv): 49
• Body Material: CPVC
• Body Style: Inline True Union
• Valve Structure: 2-Piece
• Pipe Size: 1 in
• General Connection Type: Socket
• Connection Type: Socket/FNPT x Socket/FNPT
• Port Type: Full
• Max. Pressure: 232 psi @ 73 Degrees F
• Max. Steam Pressure: 0 psi WSP
• Operating Temperature Range: 32 to 176 Degrees F
• Ball Material: CPVC
• Seat Material: PTFE
• Stem Type: Blowout Proof
• Handle Type: Tee
• Handle Material: PVC
• Stem Material: CPVC
• Body Seal Material: EPDM
• Product Group: Manual Ball Valve
• Basic Body Material: Plastic
• Standards: ASTM 1970-01, ASTM D1784, FDA, NSF 61, USP Class VI
