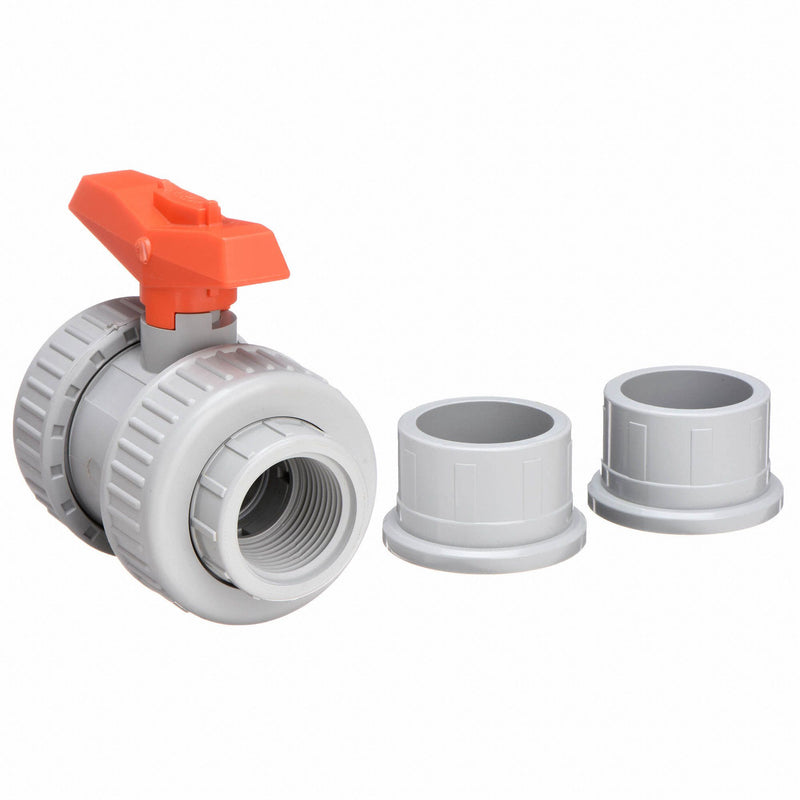

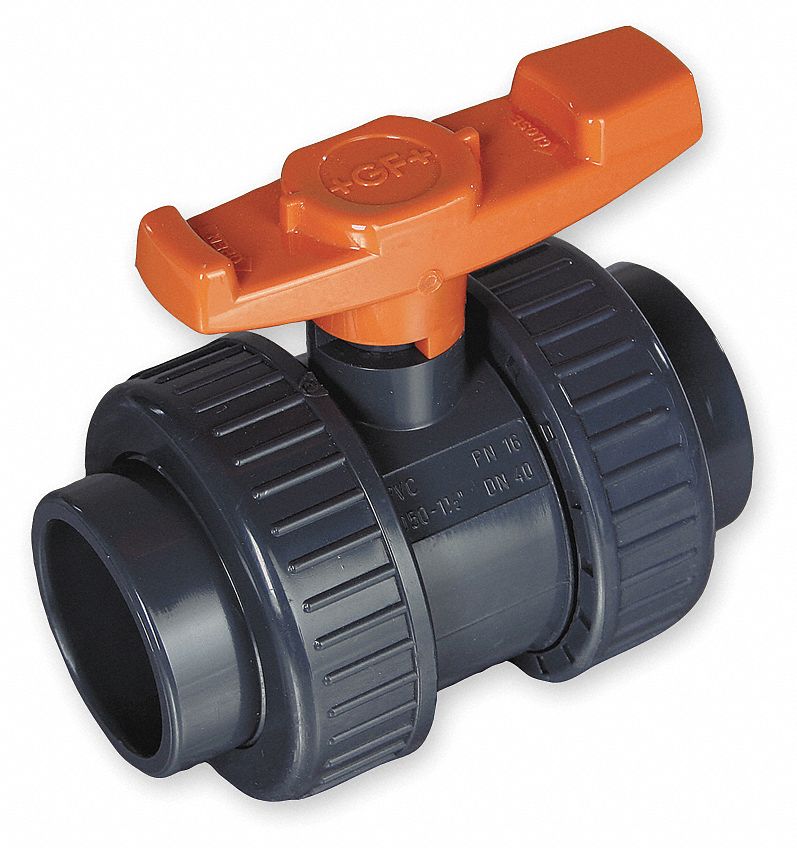

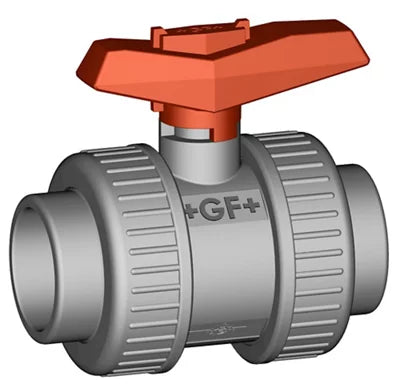

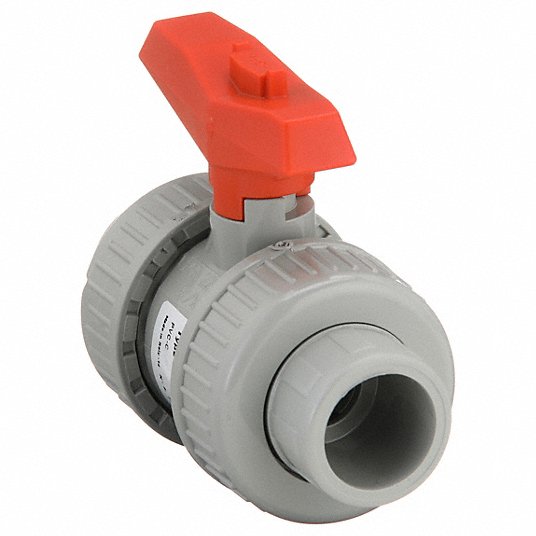

Georg Fischer 163375002 Ball Valve 375 CPVC 1/2 inch Socket/Threaded True Union EPDM

Product Description

The GEORG FISCHER 163375002 is a CPVC True Union Ball Valve designed for reliable flow control in various applications. This two-piece valve features a full port design and EPDM seals, making it suitable for corrosive chemicals and water. It has a nominal size of 1/2 inch with socket and NPT threaded connections, capable of handling pressures up to 232 psi and media temperatures from 32 °F to 176 °F. It complies with NSF 61 for drinking water.

• CPVC thermoplastic resin construction offers enhanced flexibility and heat resistance.
• Two-piece valve design with a straight body and full port ball for efficient flow.
• Equipped with a lever handle for manual operation and a blowout resistant stem for safety.

Product Highlights

Suitable for corrosive chemicals and water media, NSF 61 certified for food and drinking water applications.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 163375002
• Country of Origin: Italy

Technical Specifications

• MPN: 163375002
• Brand: Georg Fischer
• Item: 1CMD2
• For Media: Corrosive Chemicals; Water
• Body Material: CPVC
• Valve Construction: Two-Piece
• Valve Body Style: Straight
• Ball Port Style: Full Port
• Nominal Valve Size: 1/2 in
• Connection Type - Side 1: Socket
• Connection Gender - Side 1: Female
• Connection Size - Side 1: 1/2 in
• Connection Type - Side 2: NPT
• Connection Gender - Side 2: Female
• Connection Size - Side 2: 1/2 in
• Max. Pressure: 232 psi
• Max. Pressure (Combustible Gas): Not Rated
• Coefficient of Volume (Cv): 15
• Handle: Lever
• Handle Material: Glass-Filled Polypropylene
• Handle Color: Orange
• Ball Material: CPVC
• Seat Material: PTFE
• Seal Material: EPDM
• Stem Material: CPVC
• Stem Type: Blowout Resistant
• Temperature Range: 32 °F to 176 °F
• 3-A Compliance: Not Rated
• Certifications: NSF 61
• Standards: ASTM D1784, FDA Listed, NSF 61, ASTM 1970-01, USP Class VI
• UNSPSC: 40141607
• Valve Type: True Union Ball Valve
• Max. Steam Pressure: 0 psi WSP
• Ball Valve Product Group: Manual
• Nominal Diameter (DN): 15 mm
• Nominal Pressure (PN): 16 bar
