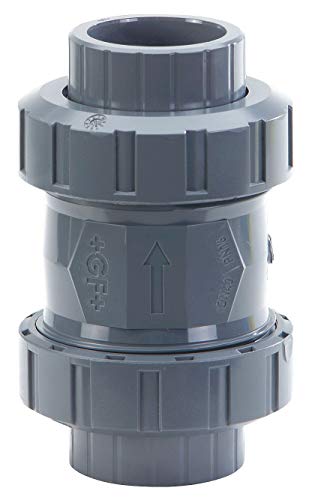

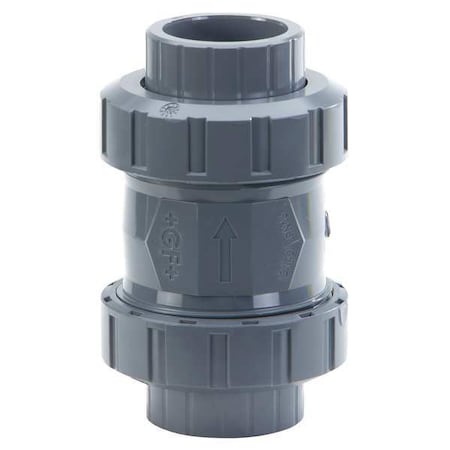

Georg Fischer 161562107 2 inches Threaded Socket PVC/EPDM Check Valve

Product Description

The GEORG FISCHER 161562107 Check Valve is a 2-inch threaded socket PVC/EPDM spring check valve designed for general purpose applications. This inline spring check valve features a PVC body, EPDM seal and seat materials, and a stainless steel spring. It can be mounted in both horizontal and vertical orientations, handling a maximum temperature of 140 degrees F and a cracking pressure of 2 to 3 psi. Ideal for plumbing and industrial systems requiring reliable backflow prevention.

• Spring Check Valve design for reliable flow control.
• PVC Body Material with EPDM Seal and Seat for durability.
• Suitable for Horizontal and Vertical Mounting.

Product Highlights

Inline spring design with PVC body and EPDM seals for general purpose flow control.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 161562107
• Country of Origin: Switzerland

Technical Specifications

• Valve Type: Spring Check Valve
• Pipe Size: 2 in
• Max Temperature: 140 Degrees F
• Body Material: PVC
• Seal Material: EPDM
• Seat Material: EPDM
• Connection Type: Socket/Thread x Socket/Thread
• Spring Material: Stainless Steel
• Cracking Pressure: 2 to 3 psi
• Mounting Orientation: Horizontal, Vertical
• Application: General Purpose
• Max Steam Pressure: Not Rated
• Mechanism Design: Inline Spring
• Flow Design: Single
• Max Pressure: 232 psi
