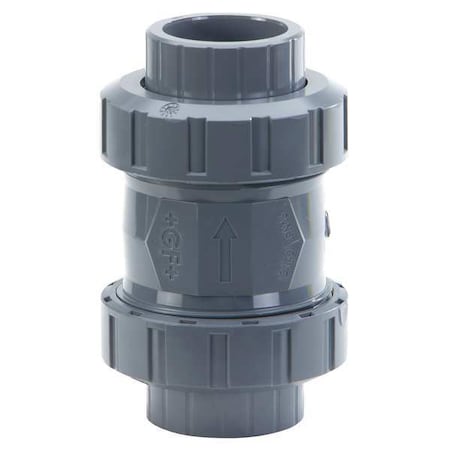

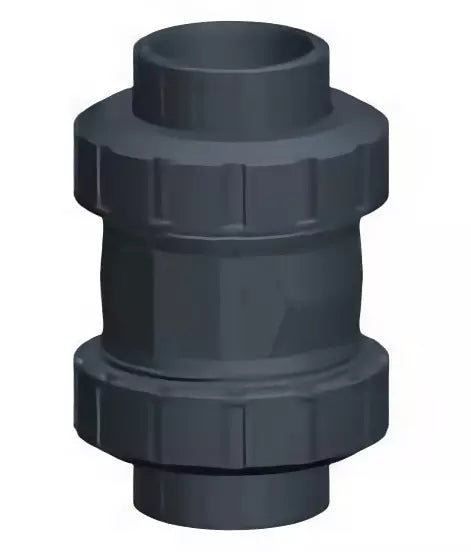

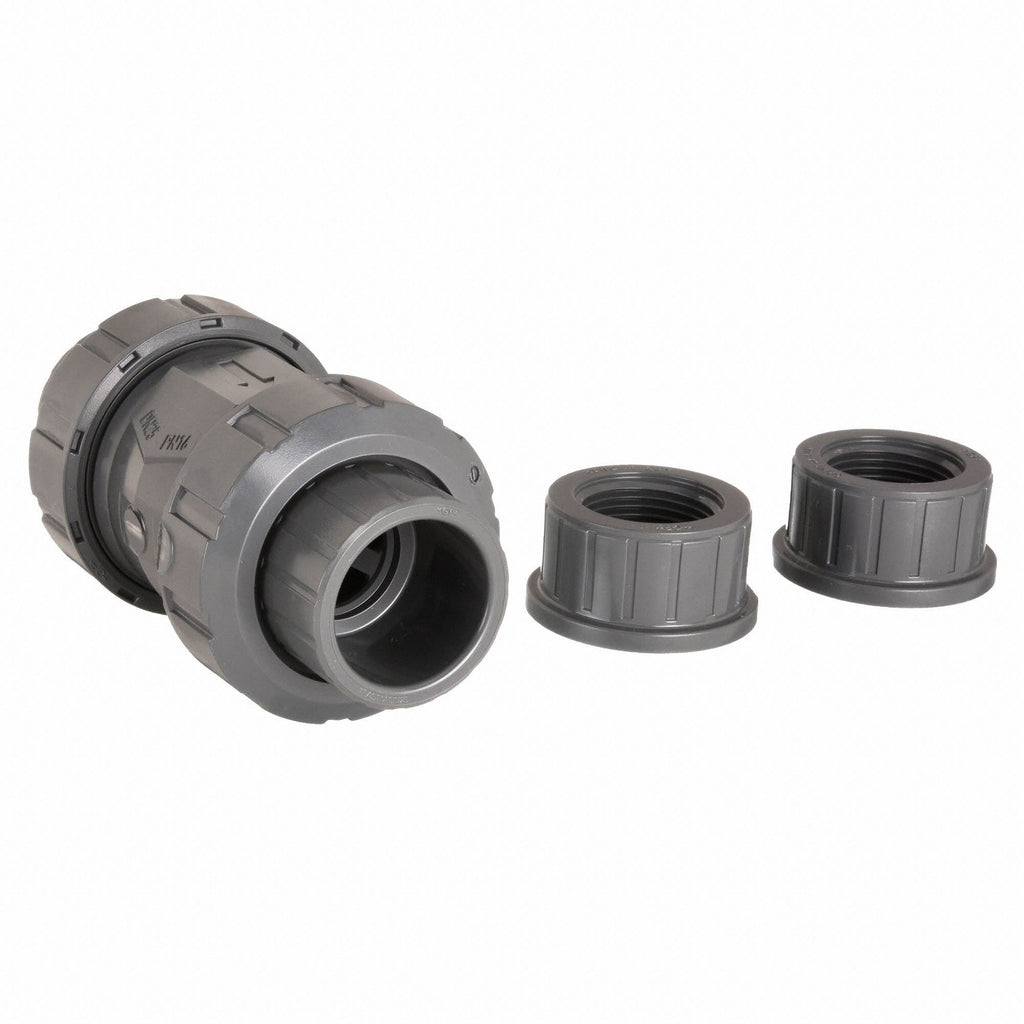

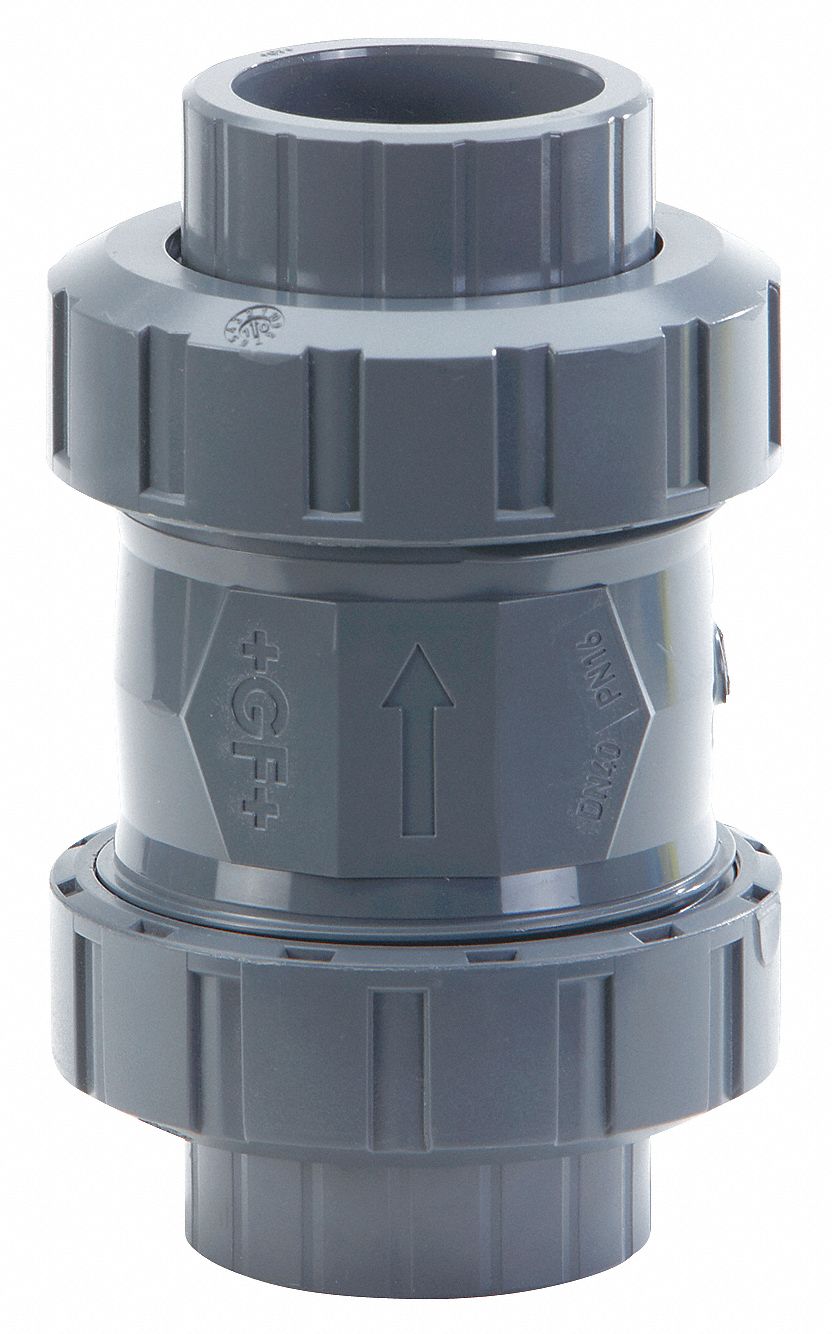

Georg Fischer 161562106 threaded socket PVC/EPDM spring check valve 1-1/2 inches

Product Description

The GEORG FISCHER 161562106 check valve is designed for general purpose applications, featuring a single flow design and an inline spring mechanism. It has a PVC body, EPDM seat and seal material, and a stainless steel spring. This valve is rated for a maximum temperature of 140 degrees F and a cracking pressure of 2.000 to 3.000 psi. It can be mounted horizontally or vertically and has a 1 1/2 inch pipe size with Socket/Threaded x Socket/Threaded connection type.

• Features a single flow design and inline spring mechanism.
• Constructed with a PVC body, EPDM seal and seat, and a stainless steel spring.
• Suitable for horizontal or vertical mounting with a 1 1/2 inch pipe size.

Product Highlights

Designed for vibration-free performance, this spring-loaded check valve features a flow-optimized return cone and double guidance, ensuring sealing at a minimum water column of 0.5m.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 161562106
• Country of Origin: Switzerland

Technical Specifications

• Type: Check Valve
• Seal Material: EPDM
• Size: 1 1/2 in
• Max. Temperature: 140 Degrees F
• Body Material: PVC
• Cracking Pressure: 2 to 3 psi
• Connection Type: Socket/Thread x Socket/Thread
• Spring Material: Stainless Steel
• Seat Material: EPDM
• Mounting Orientation: Horizontal, Vertical
• Flow Design: Single
• Sub-Category: PVC
• Max. Pressure: 232 psi
• Mechanism and Body Design: Inline Spring
• Max. Steam Pressure: Not Rated
• Application: General Purpose
