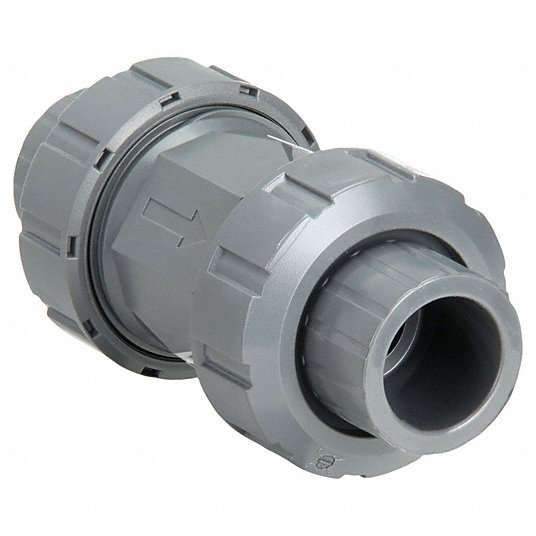

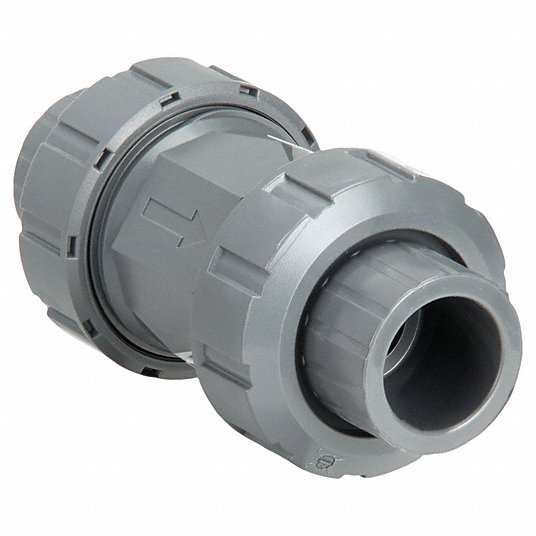

Georg Fischer 161562102 1/2 inch threaded socket PVC/EPDM spring check valve

Product Description

The GEORG FISCHER 161562102 check valve is designed for single flow applications with an inline spring mechanism. Constructed from PVC, it features EPDM seals and seat material, and a 304 stainless steel spring. This 1/2 inch valve is suitable for general purpose use, supporting horizontal or vertical mounting. It handles temperatures up to 140 Degrees F and has a cracking pressure range of 2.000 to 3.000 psi, ensuring reliable flow control.

• Designed for single flow applications
• Features an inline spring mechanism
• Constructed from durable PVC body material

Product Highlights

Vibration-free performance at high flow velocity.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 161562102
• Country of Origin: Switzerland

Technical Specifications

• Product Type: Spring Check Valve
• Flow Design: Single
• Mechanism: Inline Spring
• Body Material: PVC
• Pipe Size: 1/2 in
• Connection Type: Socket/Threaded x Socket/Threaded
• Cracking Pressure: 2.000 to 3.000 psi
• Mounting Orientation: Horizontal, Vertical
• Seal Material: EPDM
• Maximum Operating Temperature: 140 Degrees F
• Minimum Operating Temperature: 32 Degrees F
• Seat Material: EPDM
• Spring Material: 304 Stainless Steel
• Application: General Purpose
• Maximum Pressure: 232 psi
• Sub-Category: PVC
• Connection Size Side 1: 1/2 in
• Connection Size Side 2: 1/2 in
• Flow Rate: 13 gpm
• Silent Check: Standard
• Standards: ISO 9393/ISO 16137
• NSF Certifications: NSF 61
• Valve Series: Type 562
• Valve Body Style: Inline
• Connection Gender Side 1: Female
• Connection Type Side 1: Socket
• Connection Type Side 2: Socket
• Connection Gender Side 2: Female
• Check Mechanism Material: PVC
