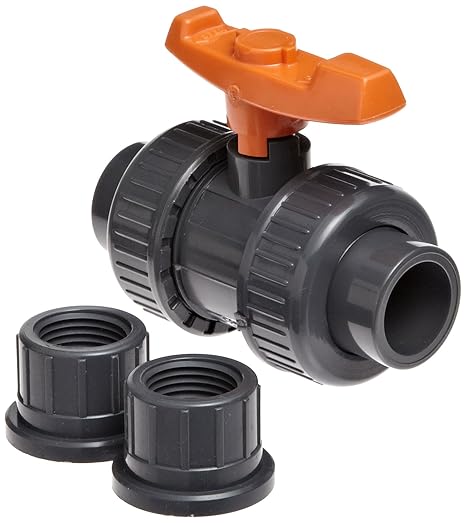

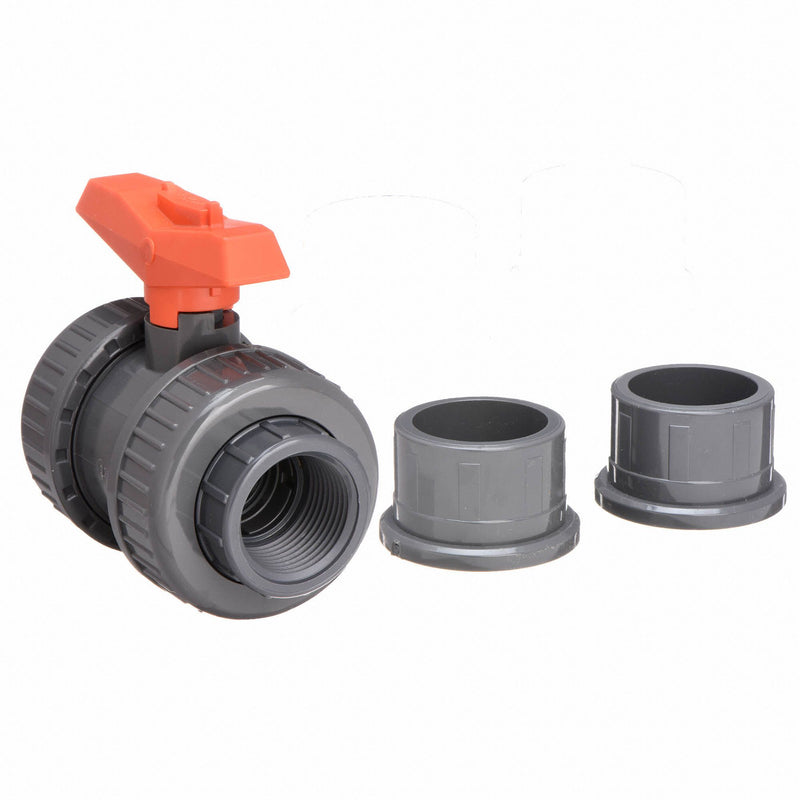

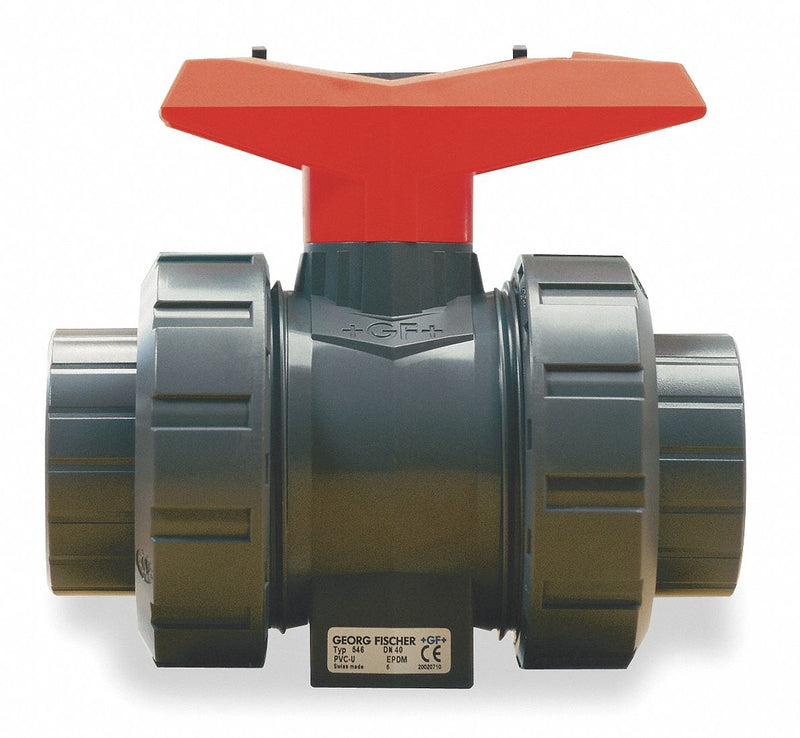

Georg Fischer 161375002 ball valve 375 PVC S80 1/2 inch socket/threaded true union EPDM

Product Description

The Georg Fischer 161375002 Ball Valve 375 PVC S80 1/2 Inch Socket/Threaded True Union EPDM is a two-piece valve designed for efficient fluid control. It features a lightweight PVC body and EPDM O-rings, offering resistance to weathering, ozone, and various chemicals. The true union connections allow for in-place valve replacement, while the full port design ensures maximum operating efficiency by matching the inner diameter of connecting pipes. This valve is suitable for potable water applications and non-critical chemical uses.

• PVC body offers reduced weight compared to metal valves.
• True union design enables convenient in-place valve replacement.
• Full port flow ensures maximum operating efficiency and smooth fluid transfer.

Product Highlights

Complies with NSF/ANSI 14 and 61 standards for potable water, suitable for water treatment and non-critical chemical applications.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 161375002
• Country of Origin: Switzerland

Technical Specifications

• Brand: Georg Fischer
• MPN: 161375002
• Valve Type: Ball Valve
• Style: True Union
• Size: 1/2 inch DN15
• Material: PVC-U
• Seal Material: EPDM
• Connection Type: Socket and Threaded
• Working Pressure: 235 PSI
• Maximum Temperature: 140° F (60° C)
• Color: Gray
• Application: Potable Water
• Exterior Finish: Pvc
• Inlet Connection Type: Socket Weld
• Number of Ports: 2
• Standards: ASTM 1970-01, ASTM D1784, FDA, NSF 61, USP Class VI
• Body Style: Inline True Union
• Valve Structure: 2-Piece
• Port: Full
• Maximum Steam Pressure: 0 psi WSP
• Ball Material: PVC
• Seat Material: PTFE
• Stem Type: Blowout Proof
• Handle Type: Tee
• Handle Material: PVC
• Stem Material: PVC
• Operation Type: Manual
