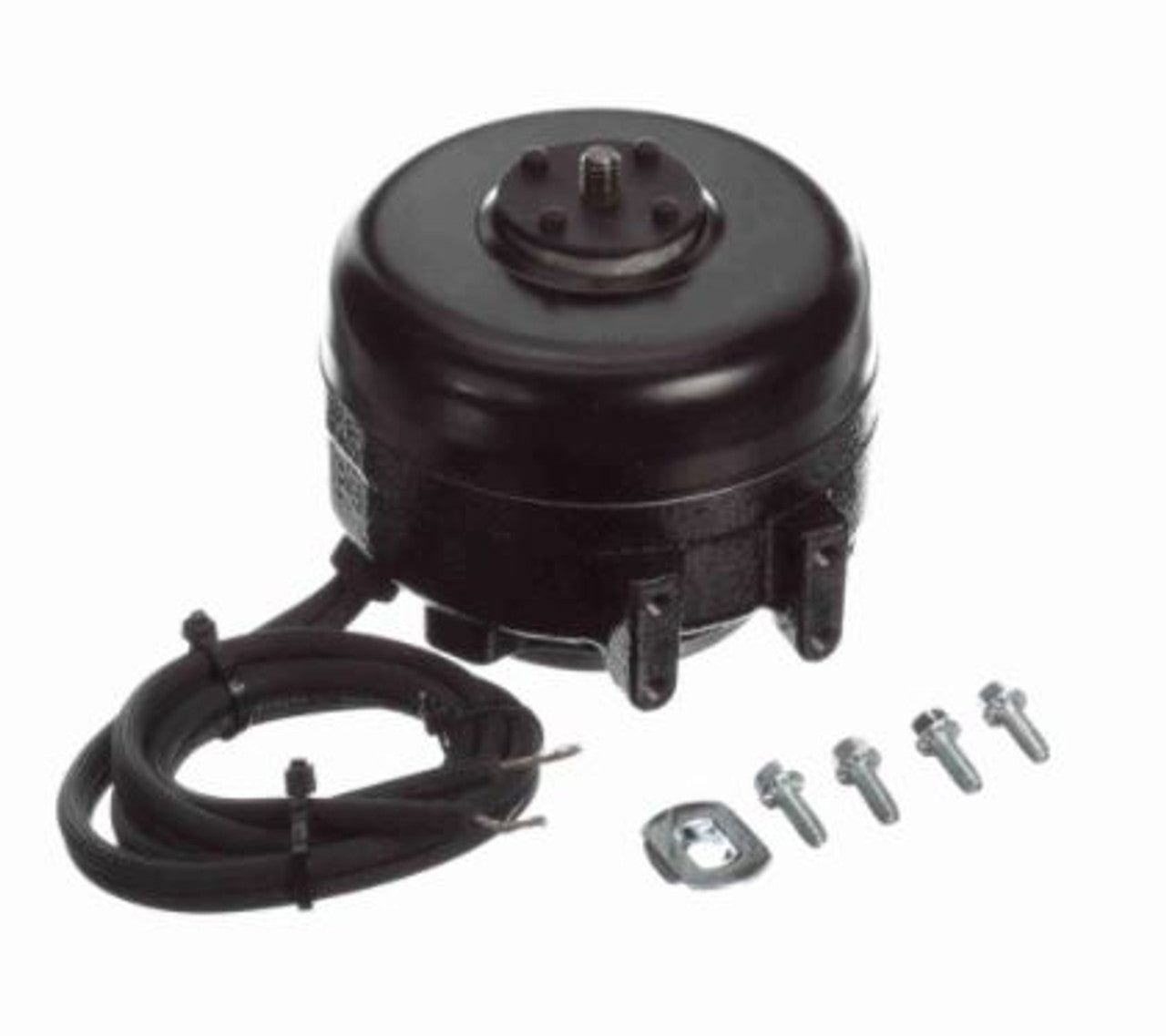

GENTEQ MOTORS UB592-F Fasco UB592 Unit Bearing Motor

Product Description

The GENTEQ MOTORS UB592-F, known as the Fasco UB592, is a reliable unit bearing motor ideal for refrigeration applications. This motor operates at 115 volts and reaches a speed of 1550 RPM with a power output of 5 watts. The motor is equipped with a shaded pole design and is impedance protected, ensuring durability and long-lasting performance in air-moving tasks.

• Operates at 115 volts and 1550 RPM.
• Features impedance protection and a shaded pole design.
• Totally enclosed air-over (TEAO) cooling system.

Product Highlights

This motor's construction includes sturdy cast iron, making it suitable for continuous operation in various environments.

Product Information

Standard Information

• Country of Origin: China
• UPC: 810069180991

Technical Specifications

• Voltage: 115 V
• Power: 5 W
• Speed: 1550 RPM
• Current: 0.34 A
• Frequency: 60 Hz
• Rotation: Clockwise Opposite Shaft End
• Bearing Type: Unit Bearing
• Enclosure: Totally Enclosed Air Over (TEAO)
• Phase: Single Phase
• Mounting: Rear Hub or Base Mount
• Shaft Diameter: 1/4 inch
• Motor Design: Shaded Pole
• Thermal Protection: Impedance
• Max Ambient Temperature: 40 Degrees C
• Full Load Amps: 0.34
