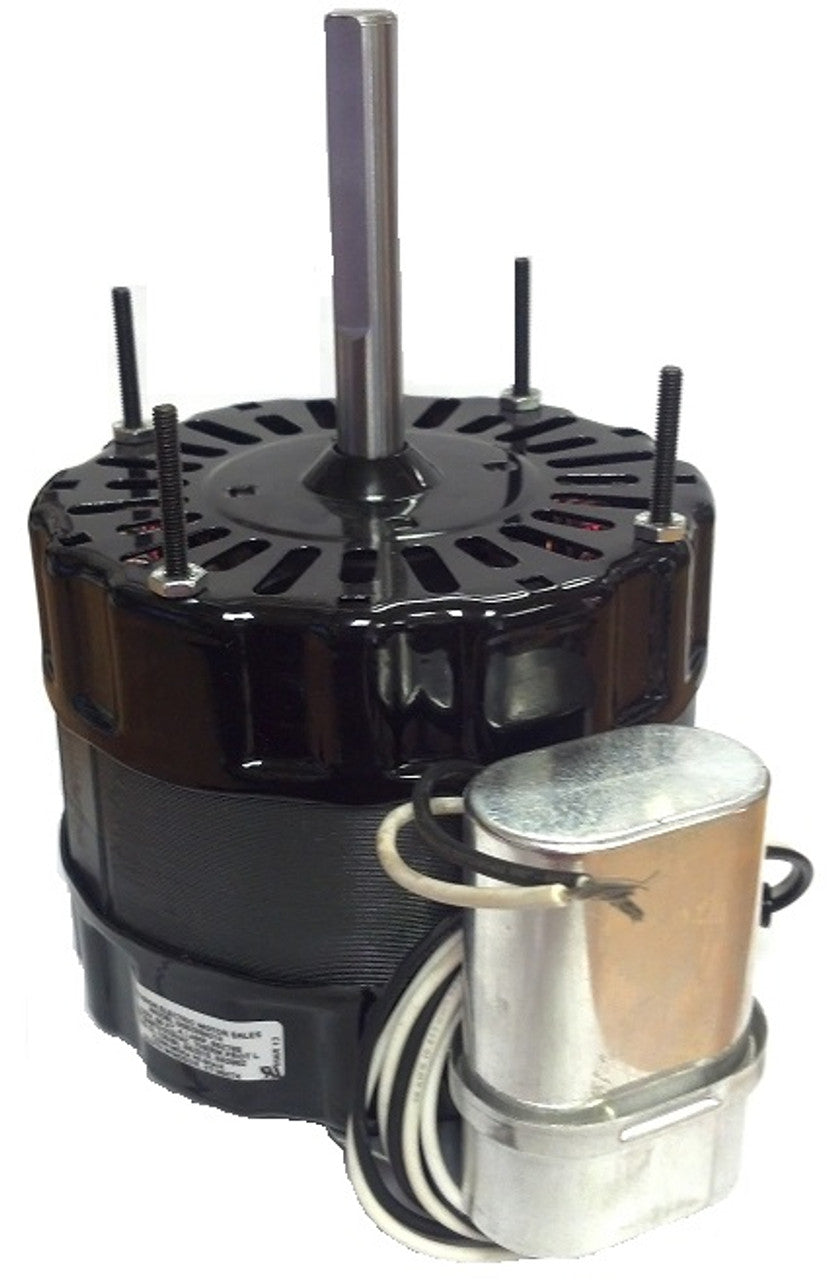

GENTEQ MOTORS P4094 Unit Heater Motor 1/3 HP 1075 RPM 120V 5.6A

Product Description

The GENTEQ MOTORS P4094 is a unit heater motor designed to ensure your unit heater performs efficiently. This replacement motor is suitable for various heater models, including the 175, 225, 250, 350, and 400 series. Operating at 1/3 HP, this motor provides dependable performance at a speed of 1075 RPM and works on a 120V supply while drawing 5.6 amps.

• Direct Aftermarket Replacement
• Compatible with multiple heater models
• Includes mounting hardware for easier installation

Product Highlights

This motor features clockwise rotation when viewed from the shaft end and includes a durable shaft measuring 1/2 inch in diameter and 2.5 inches long. It has 41 wire leads for installation and comes with a 10MFD/370 capacitor included, ensuring hassle-free setup. The four mounting studs spaced 4.5 inches on center simplify the replacement process.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: P4094

Technical Specifications

• Horsepower: 1/3 hp
• Amperage: 5.6 amps
• RPM: 1075
• Voltage: 120V
• Frequency: 60 Hz
• Capacitor: 10MFD/370 (included)
• Rotation: CW (clockwise) viewing from shaft end
• Shaft dimensions: 1/2 inch diameter x 2.5 inches long with flat
• Diameter: 5 inches
• Motor type: PSC
• Case length: 4.5 inches
• Mounting studs: 4 mounting studs spaced 4.5 inches on center
