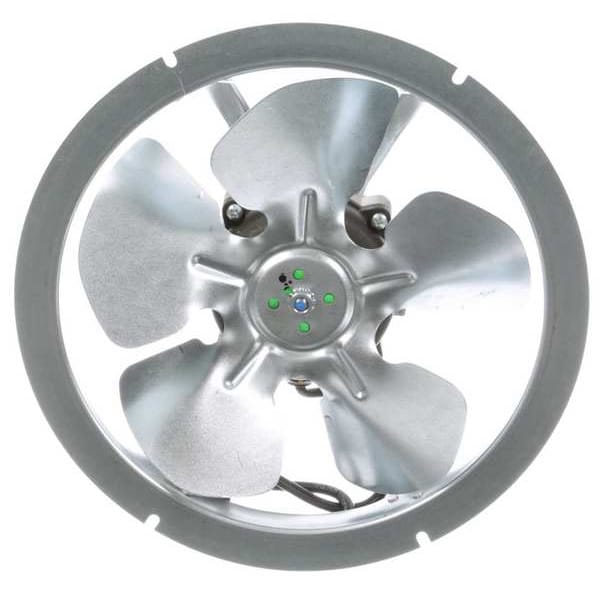

GENTEQ MOTORS MD5471 KRYO FORTRESS Refrigeration Fan Pack 390 CFM 90-240 Volts

Product Description

The Genteq Motors MD5471 KRYO Fortress is a refrigeration fan pack with a capacity of three hundred ninety cubic feet per minute (CFM). This fan operates efficiently between ninety to two hundred forty volts and spins at a speed of fourteen hundred fifty RPM. It features a thermally protected design and meets TEAO standards for total enclosure. This product is suitable for refrigeration scenarios where reliable performance is critical.

• Electronically Commutated Motor (ECM)
• IP66/67 rated for protection against dust and water
• Single phase motor suitable for various applications

Product Highlights

The Genteq MD5471 fan pack is an ideal solution for refrigeration applications that require a durable and protected motor.

Product Information

Standard Information

• Motor Type: Electronically Commutated
• Thermal Protection: Automatic

Technical Specifications

• Speed: 1450 RPM
• Number of Speeds: 1
• Phase: 1
• Motor Enclosure: Totally Enclosed
• Bearing Type: Ball
• Air Flow: 390 CFM
• Voltage Range: 90-240 V
• Current Range: 0.55-0.20 A
• Frequency: 50-60 Hz
• Impeller Type: Axial
• Number of Fan Blades: 5
• Rotation Direction: Clockwise Opposite Shaft End
• Ambient Operating Temp Range: -40°C to +55°C
• Insulation Class: B
• Output Watts: 4-20 W
• Duty: Continuous Air Over
• Frame Material: Aluminum
• Overall Length: 4.39 inches
• Shaft Diameter: 0.25 inches
