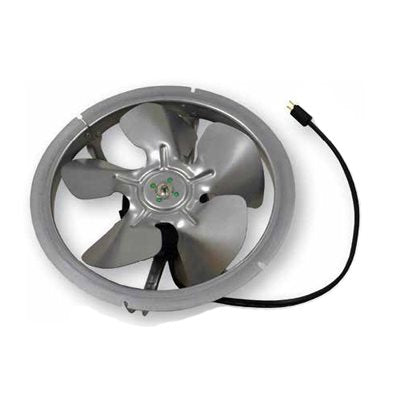

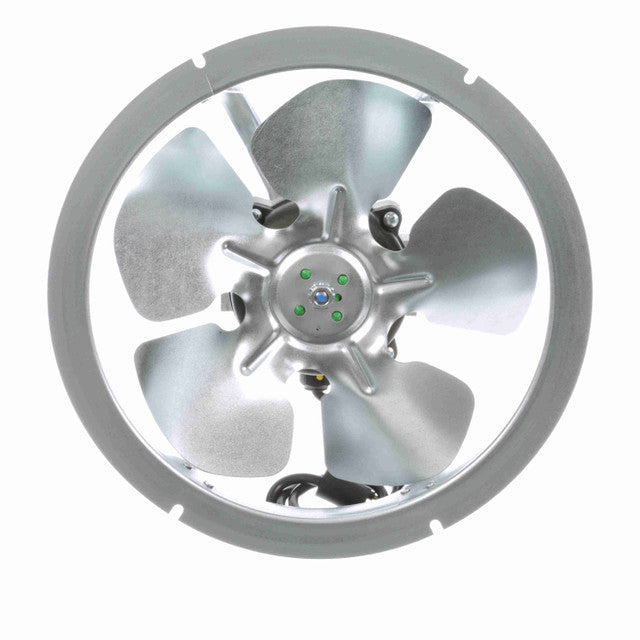

GENTEQ MOTORS MD5470 Refrigeration Motor

Product Description

The GENTEQ MOTORS MD5470 is an ECM refrigeration motor suitable for HVAC/R applications. It features an aluminum frame and is designed for shroud mounting. This motor operates on a voltage range of ninety to two hundred forty volts AC and delivers a power output of four to twenty-seven watts.

• Compatible with HVAC/R systems
• Built-in automatic thermal protection
• Compact design with ball bearing construction

Product Highlights

This refrigeration motor is ideal for both horizontal and vertical shaft up mounting positions, making it versatile for various setups.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: MD5470

Technical Specifications

• Motor Type: ECM
• Motor Application: HVAC/R
• Frame Material: Aluminum
• Mounting Type: Shroud
• Output Watts: 4-27 W
• Input Voltage: 90-240V AC
• Full Load Amps: 0.65-0.3A
• Phase: Single
• Number of Speeds: 1
• Motor Shaft Rotation: Clockwise Shaft End
• Motor Enclosure Design: Totally Enclosed
• Thermal Protection: Automatic
• Bearing Type: Ball
• Duty Cycle: Continuous
• Service Factor: 1
• Shaft Diameter: 1/4
• Cord Length: 23
• Weight: 5 lbs.
• Ambient Temperature: -40°C to 55°C
• Rotation: CWLE
• Frequency: 60 Hz
• Enclosure: IP66
• Reference: 5R026, 5R035, 5470, EC5470FP
