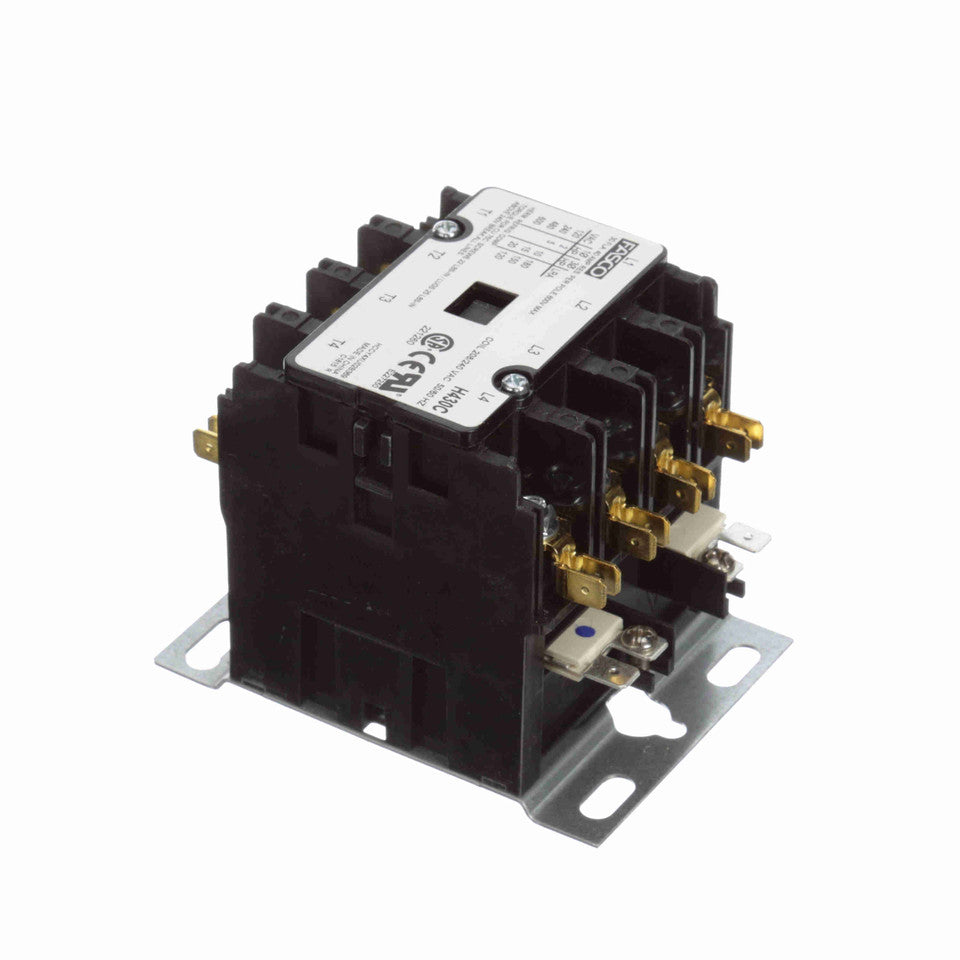

Genteq Motors H430C Definite Purpose Contactor

Product Description

The GENTEQ MOTORS H430C is a definite purpose contactor with four poles. This component is built for switching electrical circuits effectively. The coil operates at two hundred eight to two hundred forty volts alternating current. The contactor is rated for specific horsepower at various voltage configurations for both single-phase and three-phase systems.

• 4-pole definite purpose contactor
• Coil voltage: 208-240 VAC
• Includes mounting hardware

Product Highlights

The H430C provides reliable operation in critical applications.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: H430C

Technical Specifications

• Poles: 4
• Locked Rotor Amps: 180 / 150 / 120
• Resistive Amps: 40
• Coil Voltage: 208/240 VAC
• Coil VA Inrush 60 Hz: 60
• Coil VA Sealed 60 Hz: 6
• Coil VA Inrush 50 Hz: 65
• Coil VA Sealed 50 Hz: 7.5
• HP 120 Volts 1 Phase: 2
• HP 240 Volts 1 Phase: 5
• HP 240 Volts 3 Phase: 10
• HP 480 Volts 3 Phase: 15
• Dimensions: 3.25 x 1.75 x 3.04 inches
