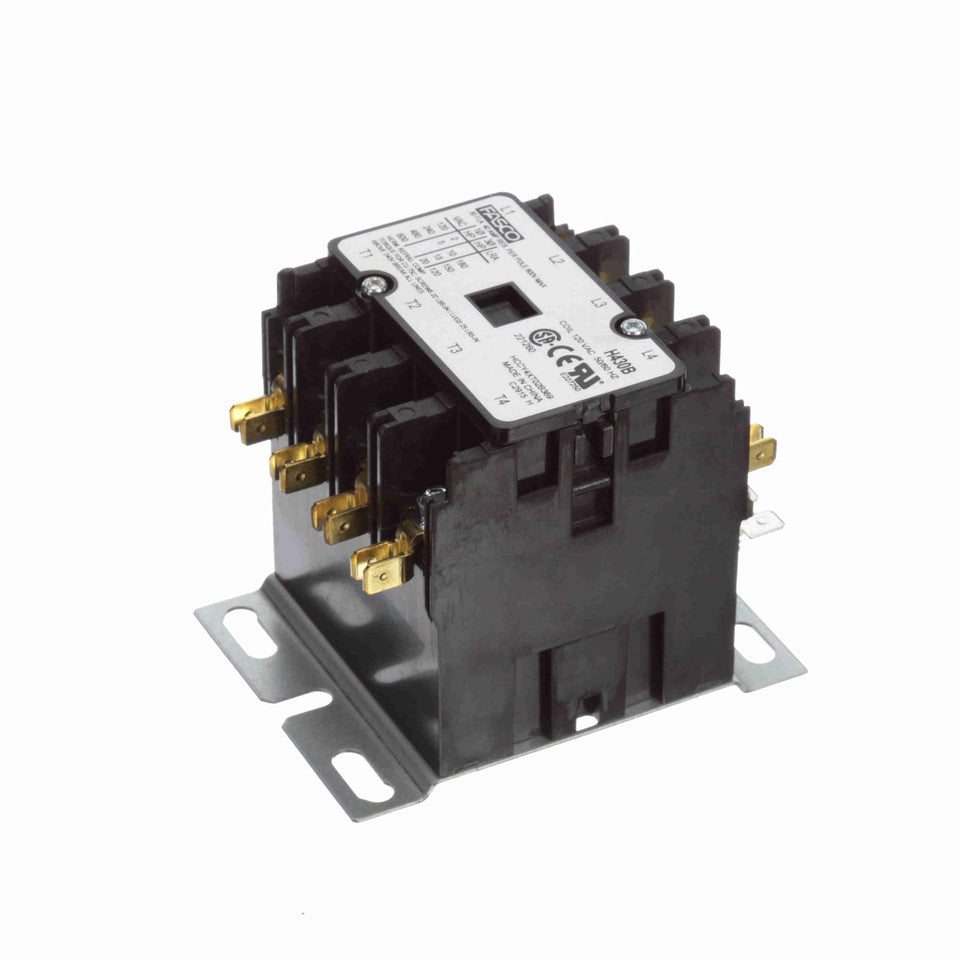

GENTEQ MOTORS H430B Definite Purpose Contactor 120V 4-Pole

Product Description

The GENTEQ MOTORS H430B is a definite purpose contactor designed for various applications. This unit features a four-pole design and operates with a 120V coil, making it suitable for demanding electrical environments.

• 4-pole configuration for versatile applications.
• Coil voltage of 120V AC.
• Rated for 30 Amps resistive load capacity.

Product Highlights

The GENTEQ MOTORS H430B is characterized by its efficient design, quick connect terminals, and a mounting plate for easy installation. This contactor is ideal for controlling motors and other high-current loads.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: H430B

Technical Specifications

• Number of Poles: 4
• Locked Rotor Amps: 180 / 150 / 120
• Resistive Amps: 40
• Coil AC Volts: 120
• Coil VA Inrush 60 Hz: 60
• Coil VA Sealed 60 Hz: 6
• Coil VA Inrush 50 Hz: 65
• Coil VA Sealed 50 Hz: 7.5
• HP 120 Volts 1 Phase: 2
• HP 240 Volts 1 Phase: 5
• Dimensions: 3.25 x 1.75 x 3.04 inches
• Weight: 1.20 lbs
