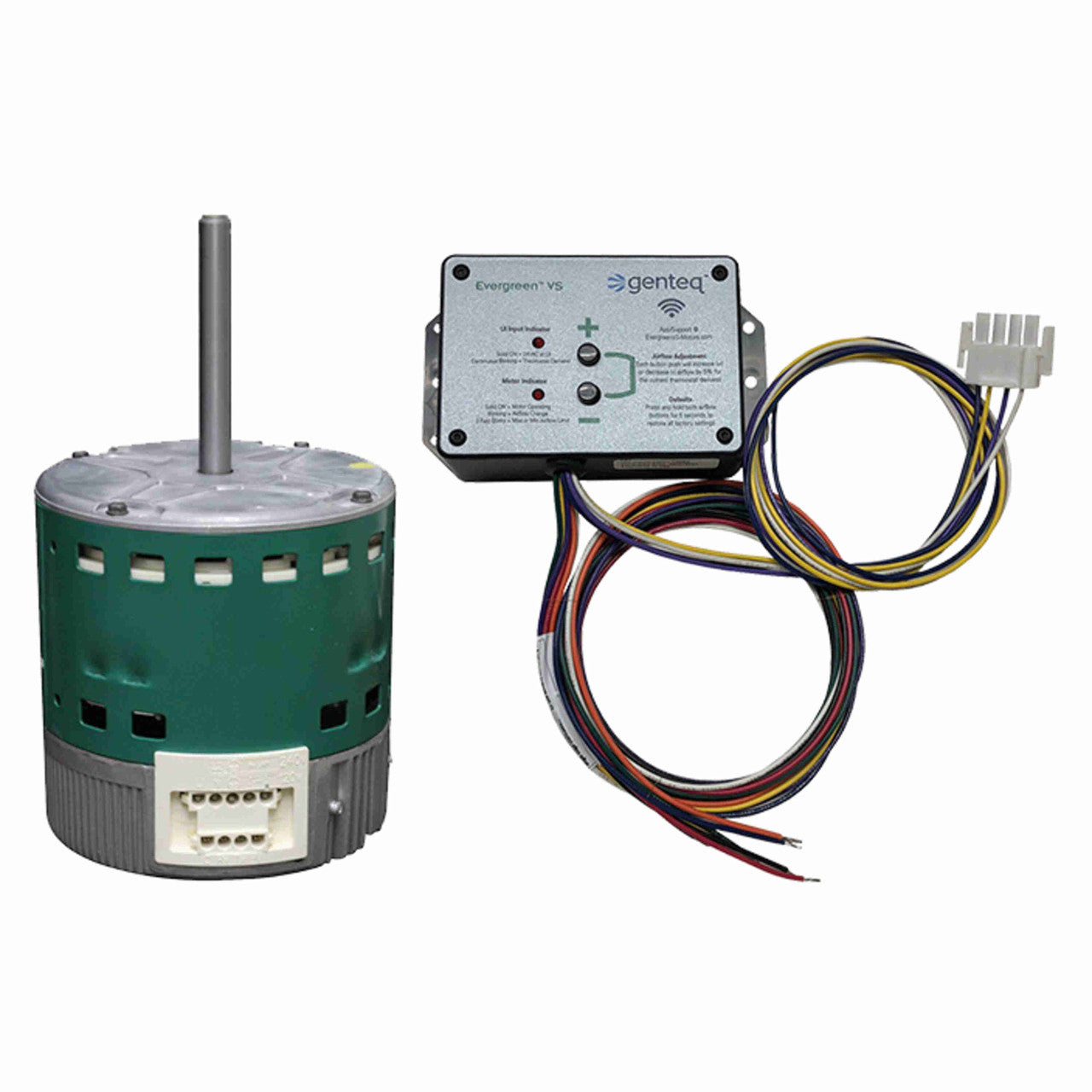

GENTEQ MOTORS G6505VUI Evergreen VS Fan and Blower Motor

Product Description

The GENTEQ MOTORS G6505VUI is a reliable Evergreen VS ECM variable speed motor suitable for fan and blower applications. Designed as a single-phase motor, it offers a horsepower of one-half with a speed of one thousand fifty RPM. The motor features a frame size of forty-eight and an open air over (OAO) enclosure, allowing for clockwise and counterclockwise rotation.

• ECM variable speed design for efficient operation
• Includes user interface 5K010V for easy adjustments
• Continuous air over duty rating for consistent performance

Product Highlights

This motor is ideal for HVAC applications where variable speed control is needed. The GENTEQ G6505VUI enhances comfort and energy efficiency in various installations.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: G6505VUI

Technical Specifications

• Horsepower: 1/2
• RPM: 1050
• Frame Size: 48
• Phase: Single
• Input Voltage: 120/240
• Input Current: 7.7/4.3
• Service Factor: 1
• Speed: Single
• Enclosure: OAO
• Rotation: CCW/CW
• Base: No Base
• Shaft Size: 1/2 x 5 with flat
• C-Dimension: 11.21
• Motor Type: Electronically Commutated Motor
• Bearing Type: Ball Bearings
