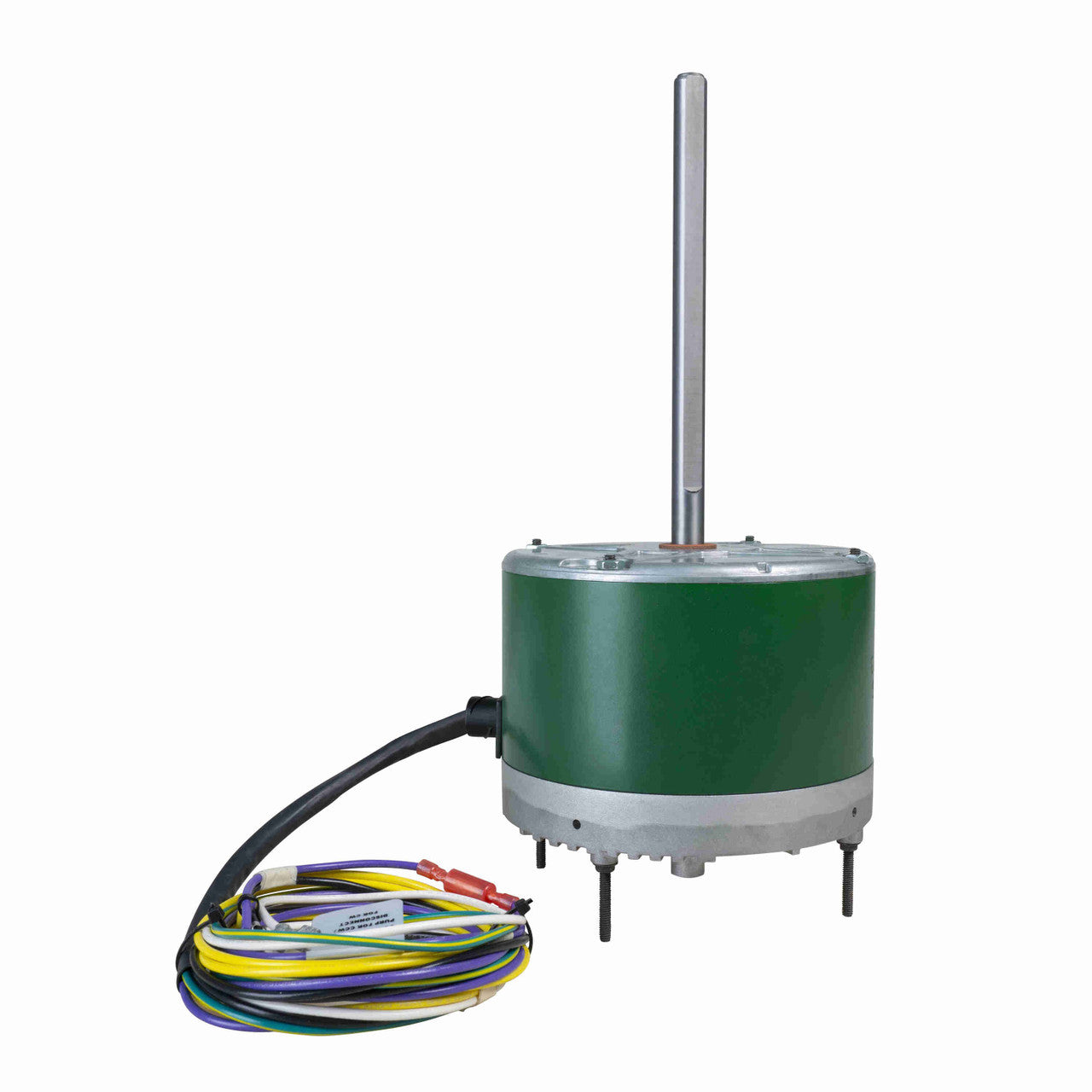

GENTEQ MOTORS G6303S Condenser Fan Motor 1/3 HP

Product Description

The GENTEQ MOTORS G6303S is an Evergreen OM ECM condenser fan motor ideal for replacing PSC and shaded pole motors. Operating at 208-230 volts, it features two speed settings: 825 RPM and 1075 RPM. The motor has a frame size of 48 inches and is thermally protected, making it suitable for continuous air over duty operations.

• Electronically Commutated Motor (ECM)
• For horizontal or vertical shaft-down mounting
• Includes extended clamp bolts and OEM mounting holes

Product Highlights

This motor's design includes ball bearings and 54 leads with 1/4 fast-on terminals, as well as a ground wire with a #10 eyelet. It supports both counterclockwise (CCW) and clockwise (CW) rotations, providing versatile installation options.

Product Information

Standard Information

• Horsepower: 1/3
• Phase: 1

Technical Specifications

• RPM: 825/1075
• Input Voltage: 208-230 V
• Current: 2.8 AMP
• Service Factor: 1
• Number of Speeds: 2
• Enclosure Type: TEAO
• Rotation: CCW/CW
• Shaft Dimensions: 1/2 x 6.50 shaft with flat
• Overall Length: 10.98 inches
• Frequency: 60 Hz
• Reversible: Yes
• Shaft Length: 2.82 inches
• Mounting Type: Horizontal or vertical shaft-down, extended bolts, or OEM mounting holes
