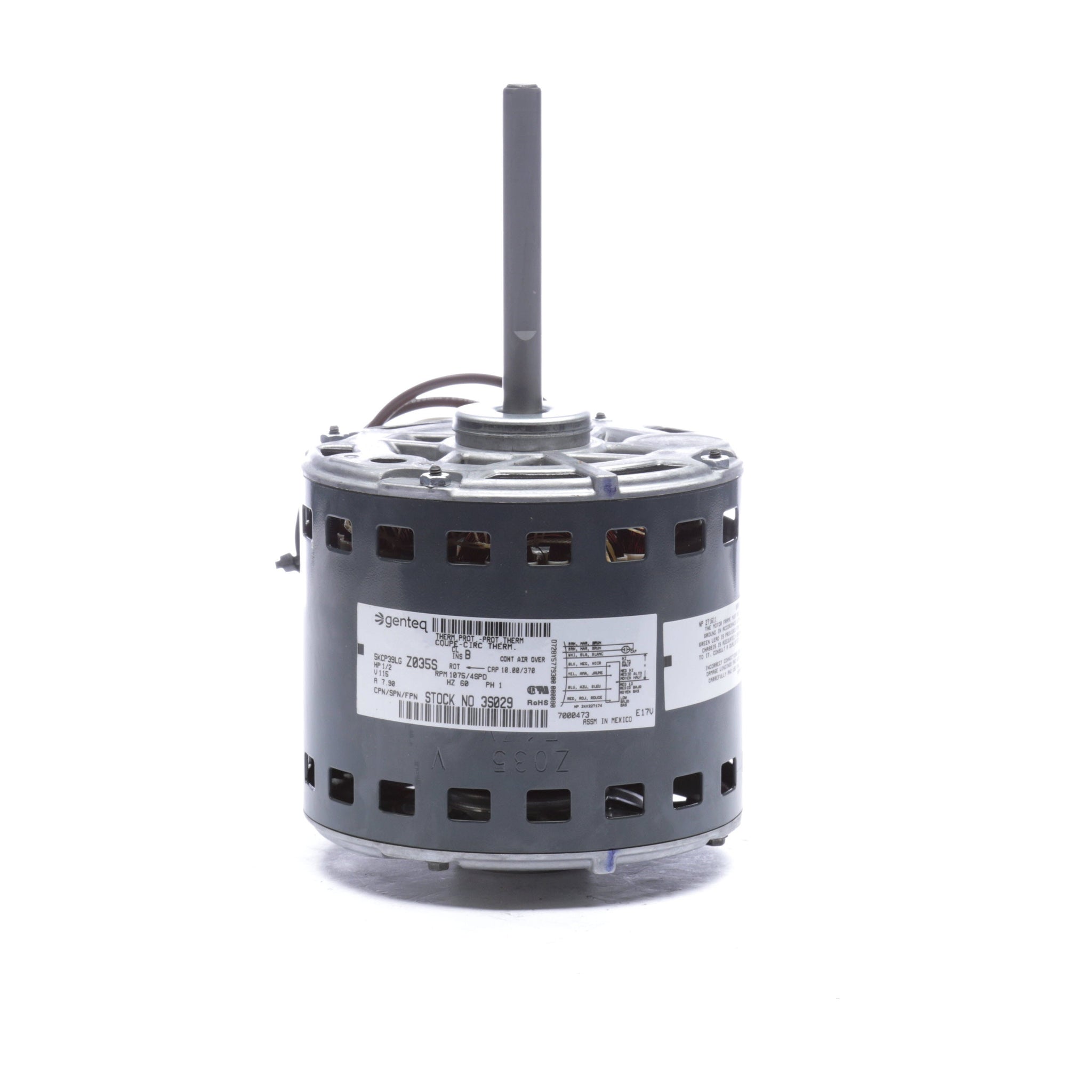

GENTEQ MOTORS G3S029 OEM Replacement Motor 0.5 HP 48 Frame

Product Description

The GENTEQ MOTORS G3S029 is a direct replacement motor for air-over applications, ensuring efficient operation in various settings. It operates on 115 Volts and reaches speeds of 1075 RPM, accommodating four different speed settings. The motor is equipped with a permanent split capacitor for improved performance and thermal protection for safety.

• Power rating of 0.5 HP
• Features a sleeve bearing for reliability
• Designed with a flat shaft of 0.5 inches diameter

Product Highlights

This replacement motor is ideal for HVAC applications, providing a dependable solution for air movement.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: G3S029

Technical Specifications

• Power Rating (In HP): 0.5
• Speed (Max): 1075
• Voltage: 115
• Frame Size: 48
• Enclosure Type: Open Air Over
• Rotation: Counterclockwise
• Mounting Type: Round
• Max Ambient: 40°C
• Shaft Diameter (In inches): 0.500
• C Dim: 9.89
• DE Bearing Type: Sleeve
• Duty: Continuous Air Over
• Electrical Type: Permanent Split Capacitor
• Frame Length: 4.32
• Frame Material: Rolled Steel
• Frequency: 60
• Number of Poles: 6
• Number of Speeds: 4
• ODE Bearing Type: Sleeve
• Outline Drawing No: 5KCP39LGZ035S
• Service Factor: 1
• Shaft Extension: 4.00
• Shaft Type: Flat
• Starting Type: Thermally Protected
