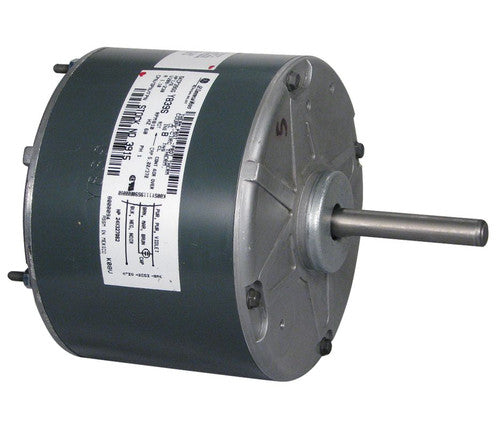

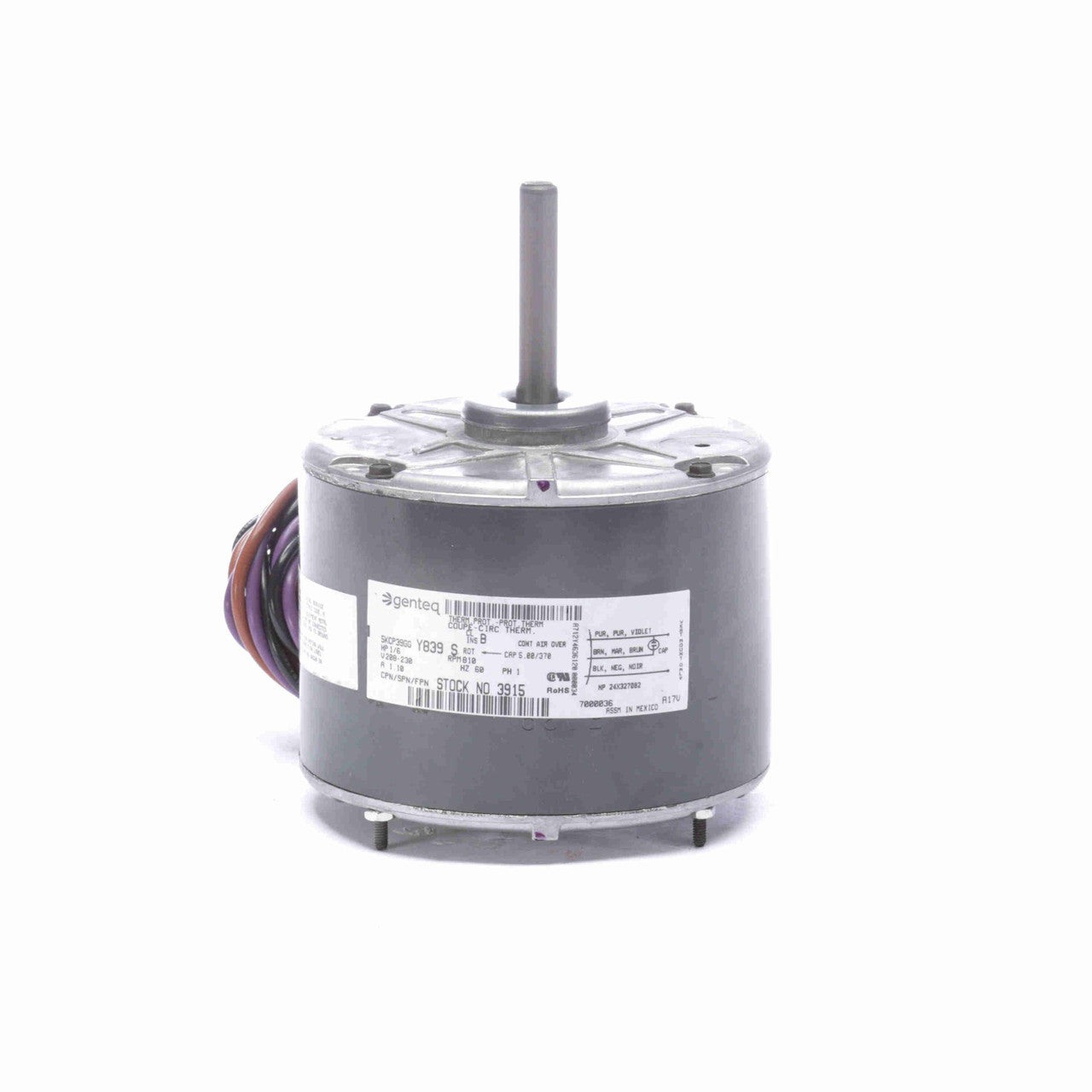

GENTEQ MOTORS G3915 Condenser Fan Motor 208-230V 1/6 HP - Replacement MPN G3915

Product Description

The GENTEQ MOTORS G3915 is a condenser fan motor suitable for air conditioning systems. It operates at 208-230 volts and 810 RPM. This unit features a Totally Enclosed Air Over (TEAO) design, which protects the motor from dust and moisture. It is made for extended studs mounting and requires a separate capacitor rated at 5 MFD/370 VAC for proper function, which is sold separately.

• Operates at 208-230 volts with a speed of 810 RPM
• TEAO enclosure provides durability
• Specifically designed for extended studs mounting

Product Highlights

The G3915 motor is engineered for reliable operation in HVAC applications.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: G3915

Technical Specifications

• Horsepower: 1/6
• Input Voltage: 208-230V
• Output Current: 1.1 Amps
• RPM: 810
• Speed: Single Speed
• Rotation: Counter Clockwise
• Shaft Dimensions: 1/2 x 2.92 inches with flat
• Enclosure: TEAO
• Frame Size: 48
• Service Factor: 1
• Motor Type: PSC
• Mounting Type: Extended Studs
• Capacitor Required: 5 MFD/370VAC
• Ambient Temperature: 40°F
• Bearing Type: Sleeve
• Body Diameter: 5-5/8 inches
• Motor Case Length: 4-1/4 inches
• Stud Pattern: 5-1/4 x 5-1/4 inches
• C-Dimension: 7.23 inches
