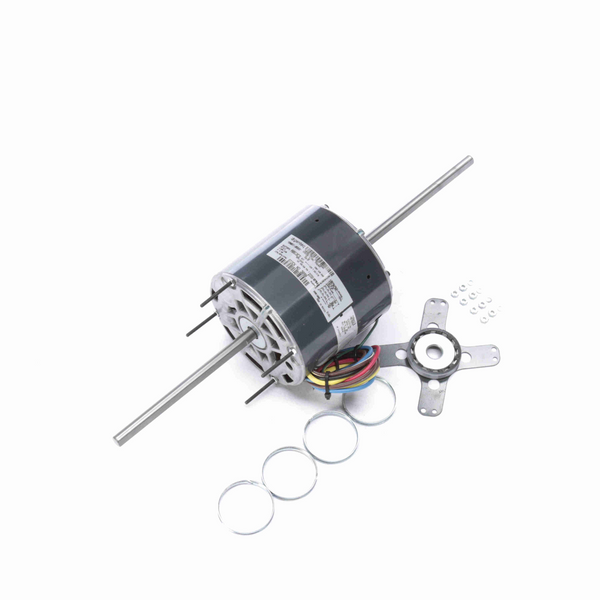

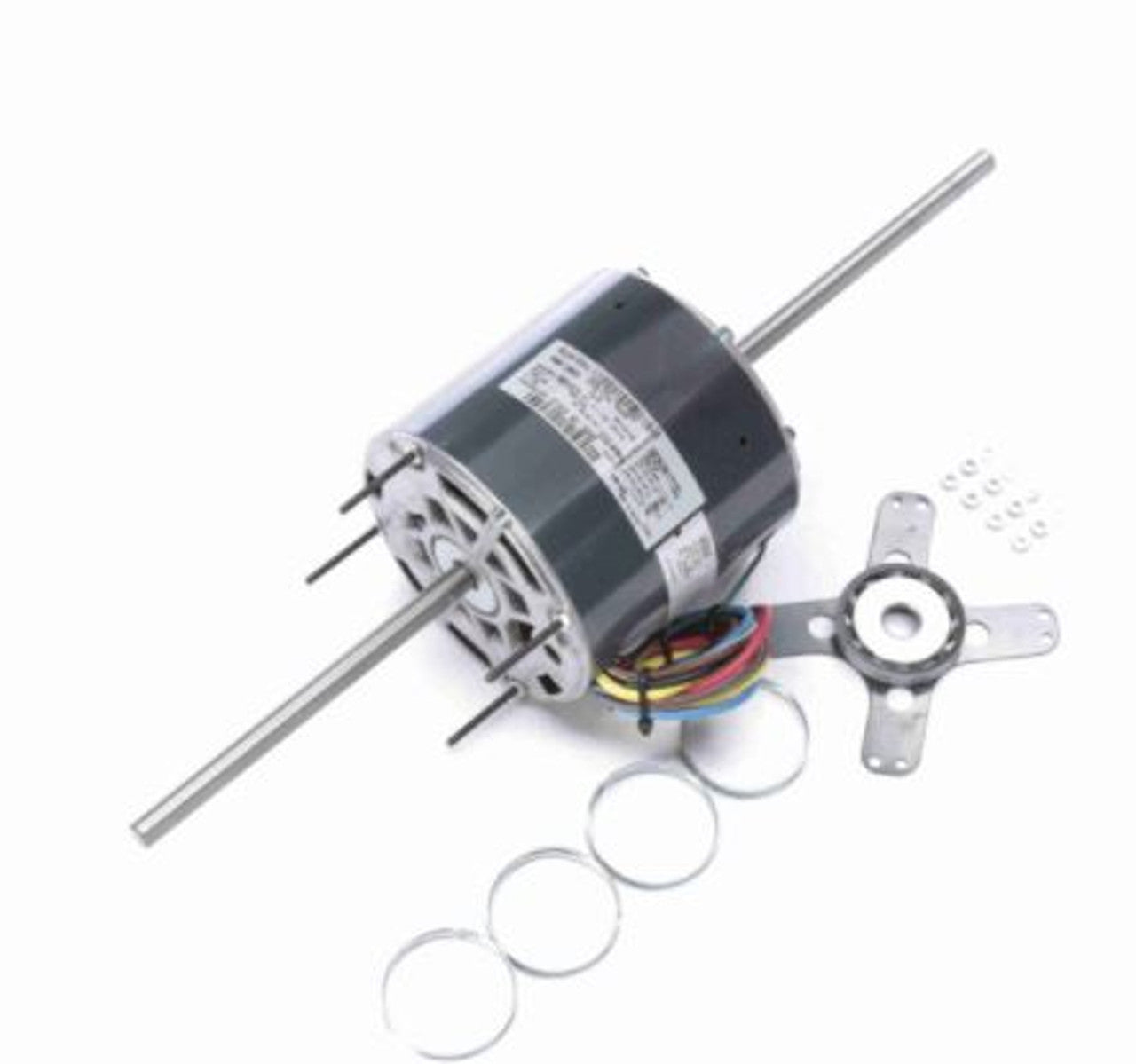

GENTEQ MOTORS G3898 Direct Drive Blower Motor 3/4 HP 208-230 V

Product Description

The GENTEQ MOTORS G3898 is a direct drive blower motor designed for window air conditioners, condenser fans, and fan coil units. This motor is rated at 3/4 horsepower and operates efficiently at 208-230 volts. It features a speed of 1625 RPM and provides three-speed options for optimal airflow control. The motor is an open vent type and includes sleeve bearings and a dual extension shaft.

• Three-speed settings for adjustable airflow.
• Open vent design suitable for various applications.
• Includes a dual extension shaft for flexible installation.

Product Highlights

The GENTEQ MOTORS G3898 is suitable for residential and commercial applications where reliable motor performance is needed.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: G3898

Technical Specifications

• Horsepower: 3/4 HP
• Voltage: 208-230 V
• Speed: 1625 RPM
• Number of Speeds: 3
• Input Current: 5.3-3.8-3.2 A
• Enclosure: Open Air Over
• Bearings: Sleeve
• Shaft Type: Flat
• Shaft Diameter: 0.500 inches
• Shaft Extension: 7.00 inches
• Frame: 48
• Electrical Type: Permanent Split Capacitor
• Insulation Class: B
• Mounting Type: Resilient Ring
• Rotation: Counterclockwise
• Overall Length: 20.00 inches
• Frame Length: 4.82 inches
• Duty: Continuous Air Over
• Service Factor: 1
• Frequency: 60 Hz
• Thermal Protection: Thermally Protected
• Motor Orientation: Any
• Certifications: UL Recognized, CSA Y, CE N
