Product Description

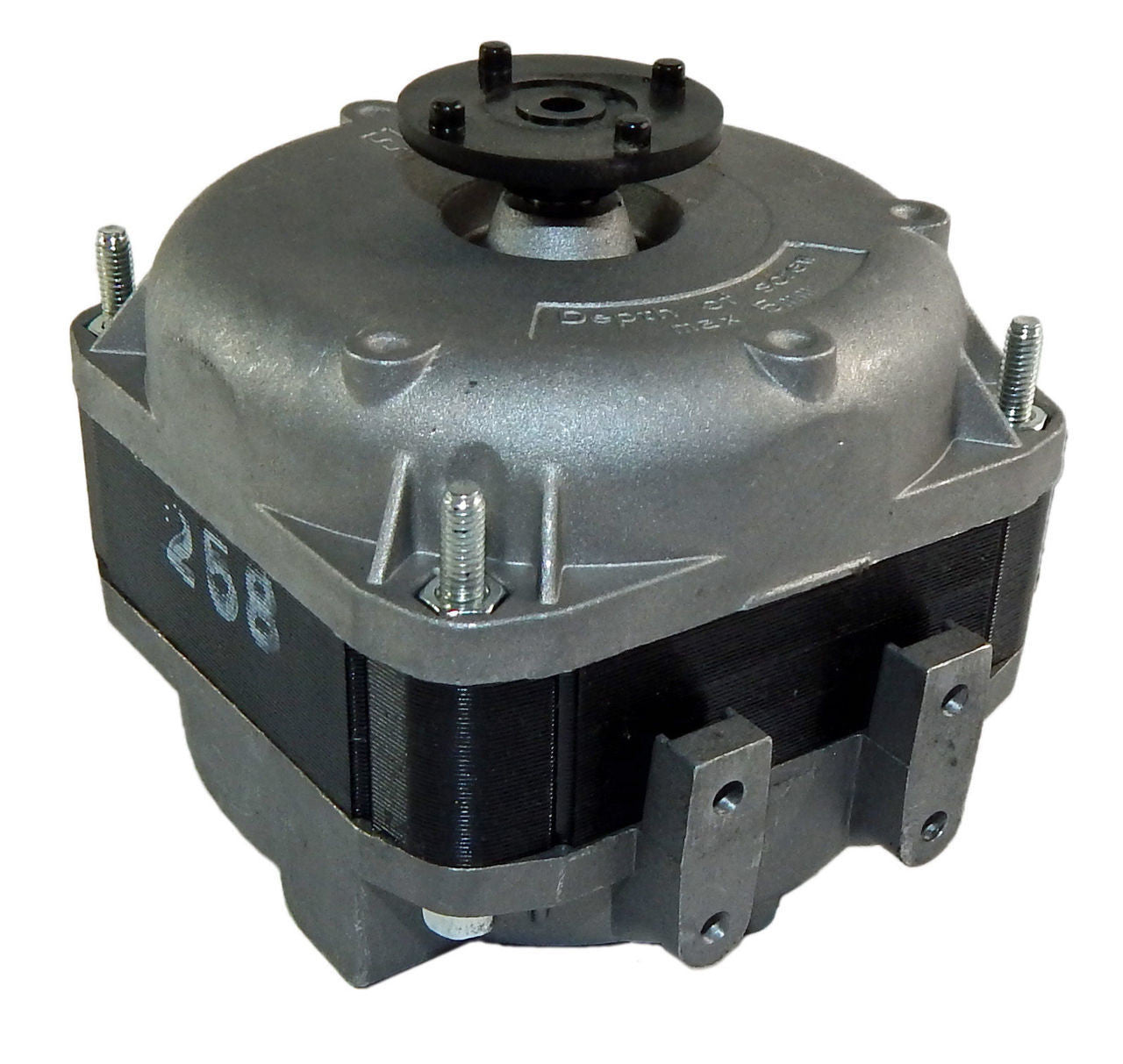

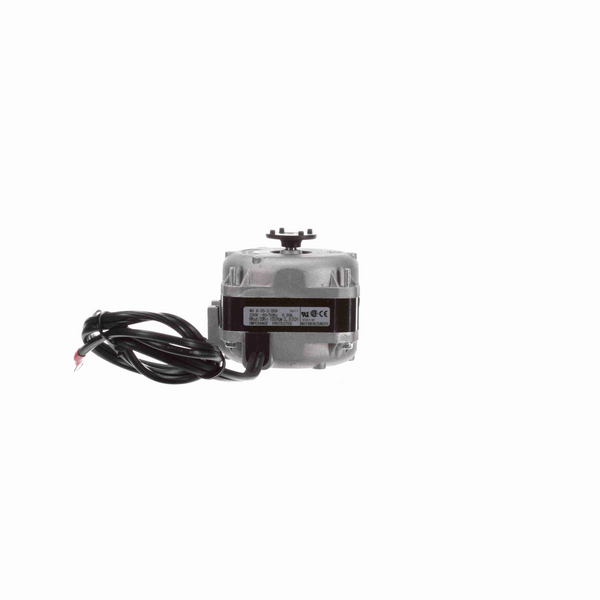

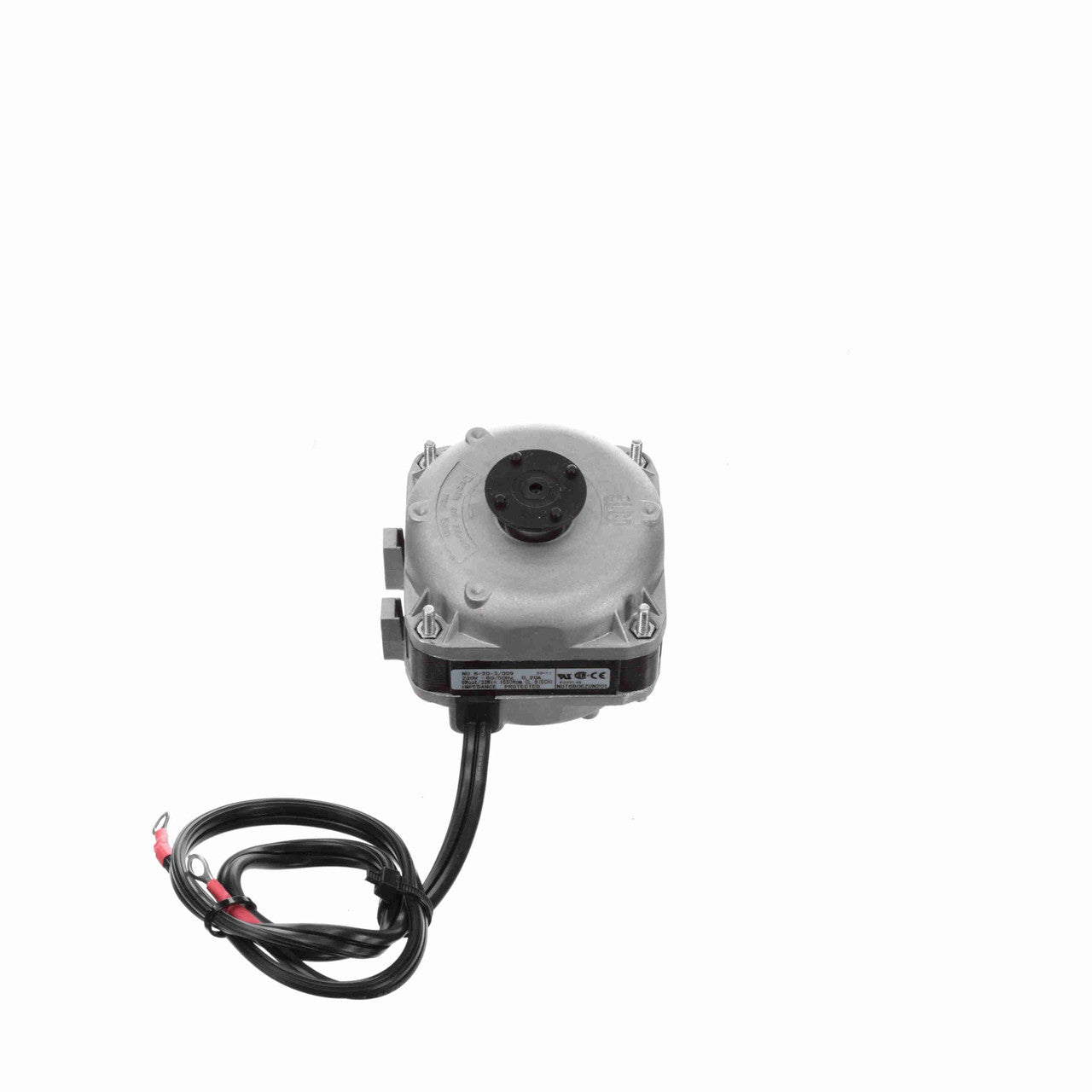

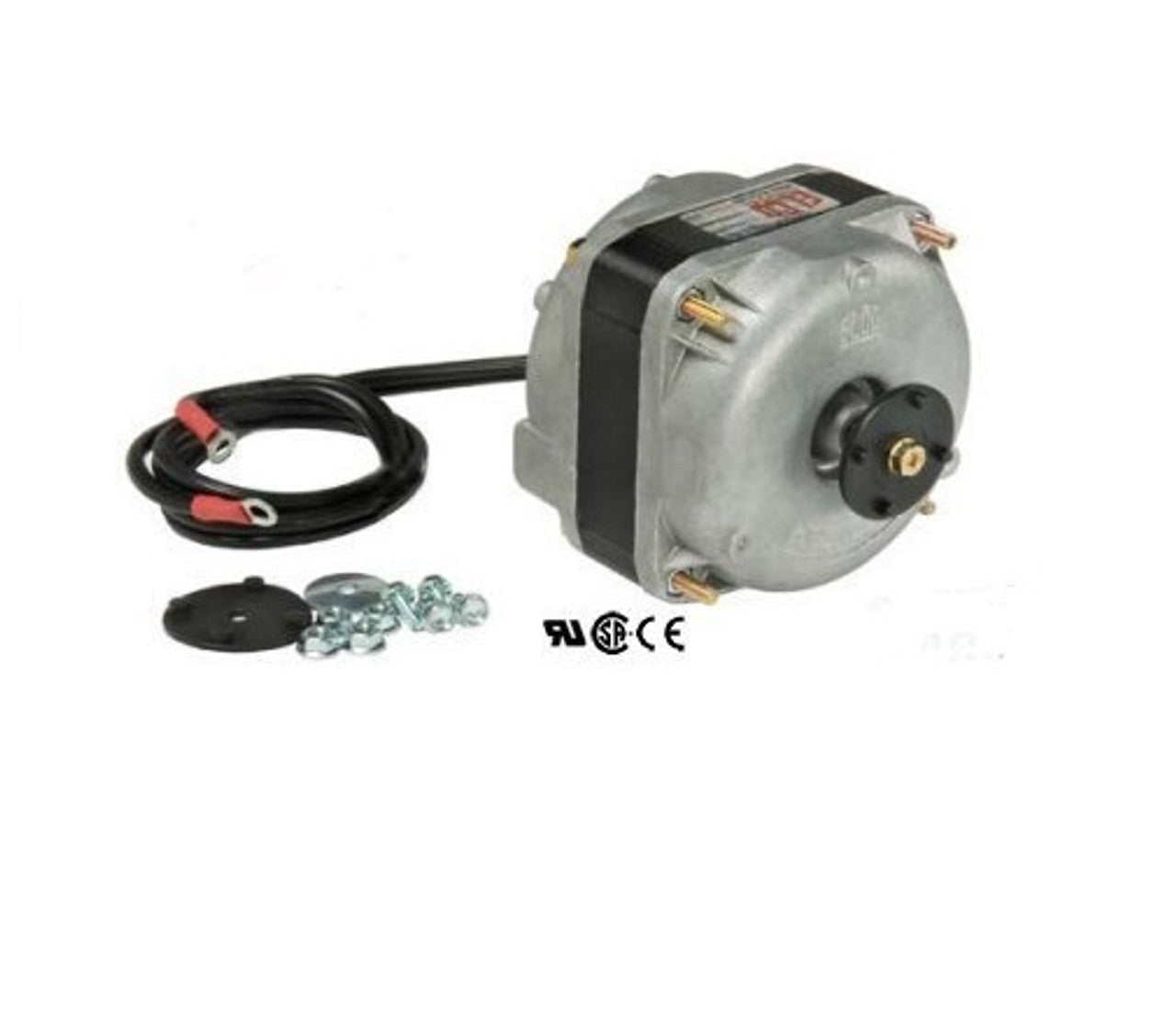

The GENTEQ MOTORS EC6W230 is a six-watt refrigeration motor designed for use in various cooling applications. This motor operates at two hundred thirty volts and delivers a speed of one thousand five hundred fifty RPM. It features a four-pole design suitable for continuous air-over duty, ensuring reliable performance in refrigeration units.
- Operates efficiently at 230 volts and 1550 RPM.
- Constructed with a shaded pole motor type.
- Designed for continuous air-over duty applications.
Product Highlights
This motor is suitable for all-angle operation and includes multiple mounting options making it versatile for different setups.
Product Information
Standard Information
-
Brand: GENTEQ MOTORS
-
MPN: EC6W230
Technical Specifications
-
Power Output: 6 W
-
Horsepower: 1/125
-
Input Voltage: 230 V
-
Frequency: 60 Hz
-
Input Current: 0.2 A
-
Speed: 1550 RPM
-
Poles: 4
-
Phase: 1
-
Electrical Type: Shaded Pole
-
Rotation: Counterclockwise
-
Enclosure Type: Totally Enclosed Air Over
-
Operating Temperature: 40 °C
-
Mounting Type: 1 BOSS/PE AND OPE 3 HOLES
-
Shaft Type: Flat
-
Shaft Diameter: 0.275 inches
-
Overall Length: 3.05 inches
-
Frame Material: Aluminum
-
Thermal Protection: No Protection
