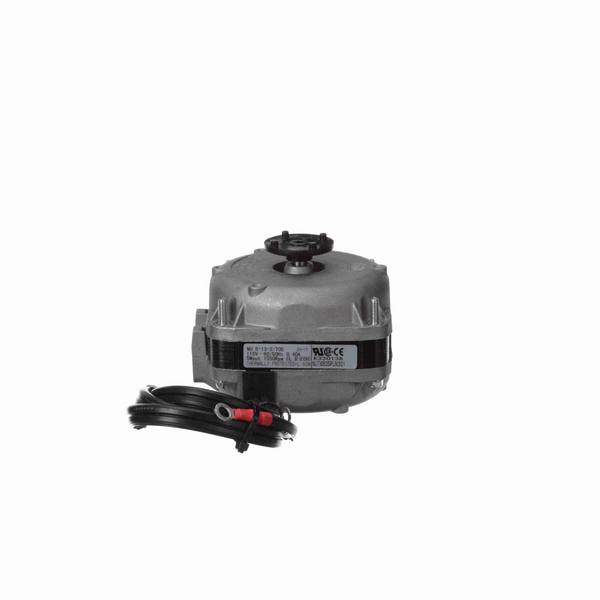

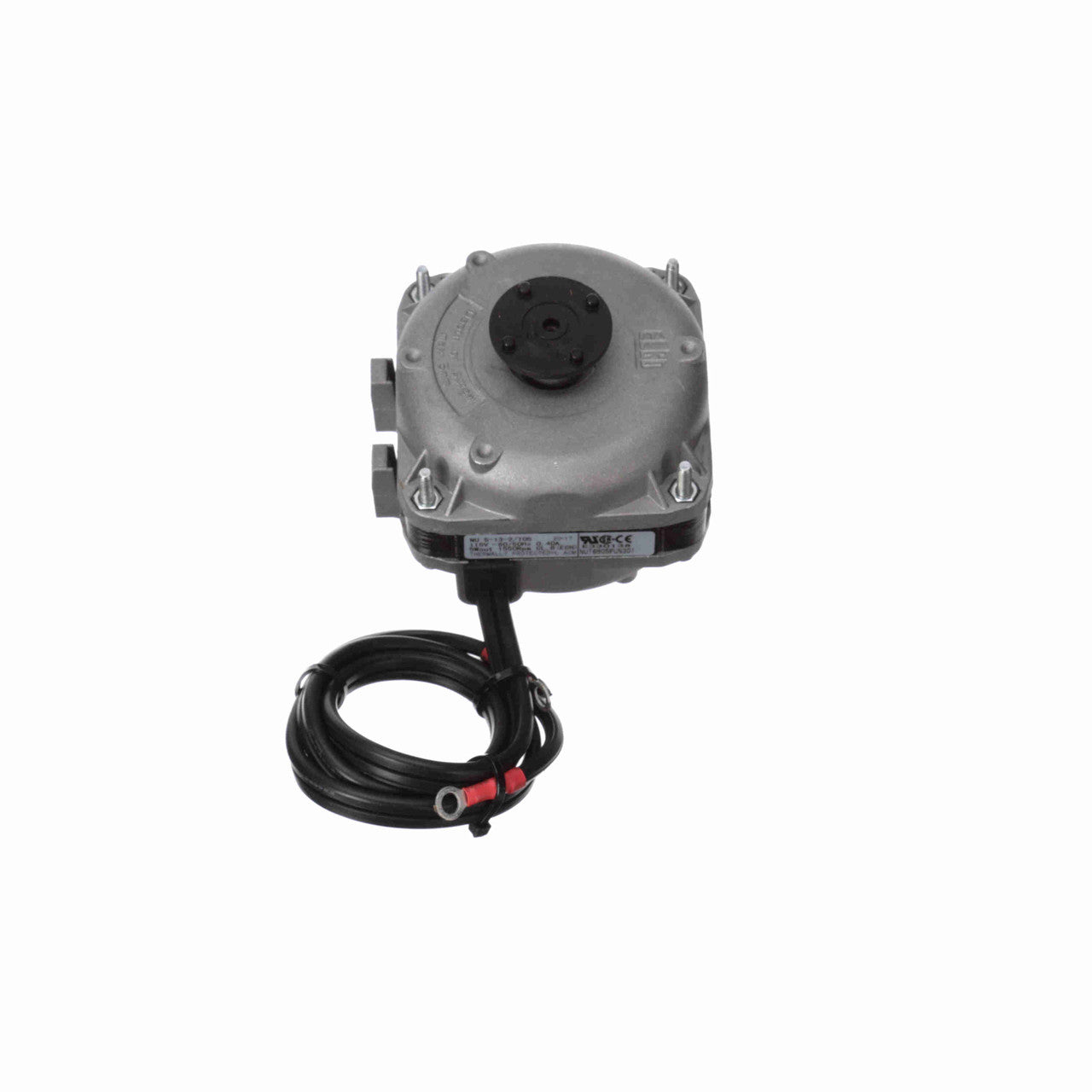

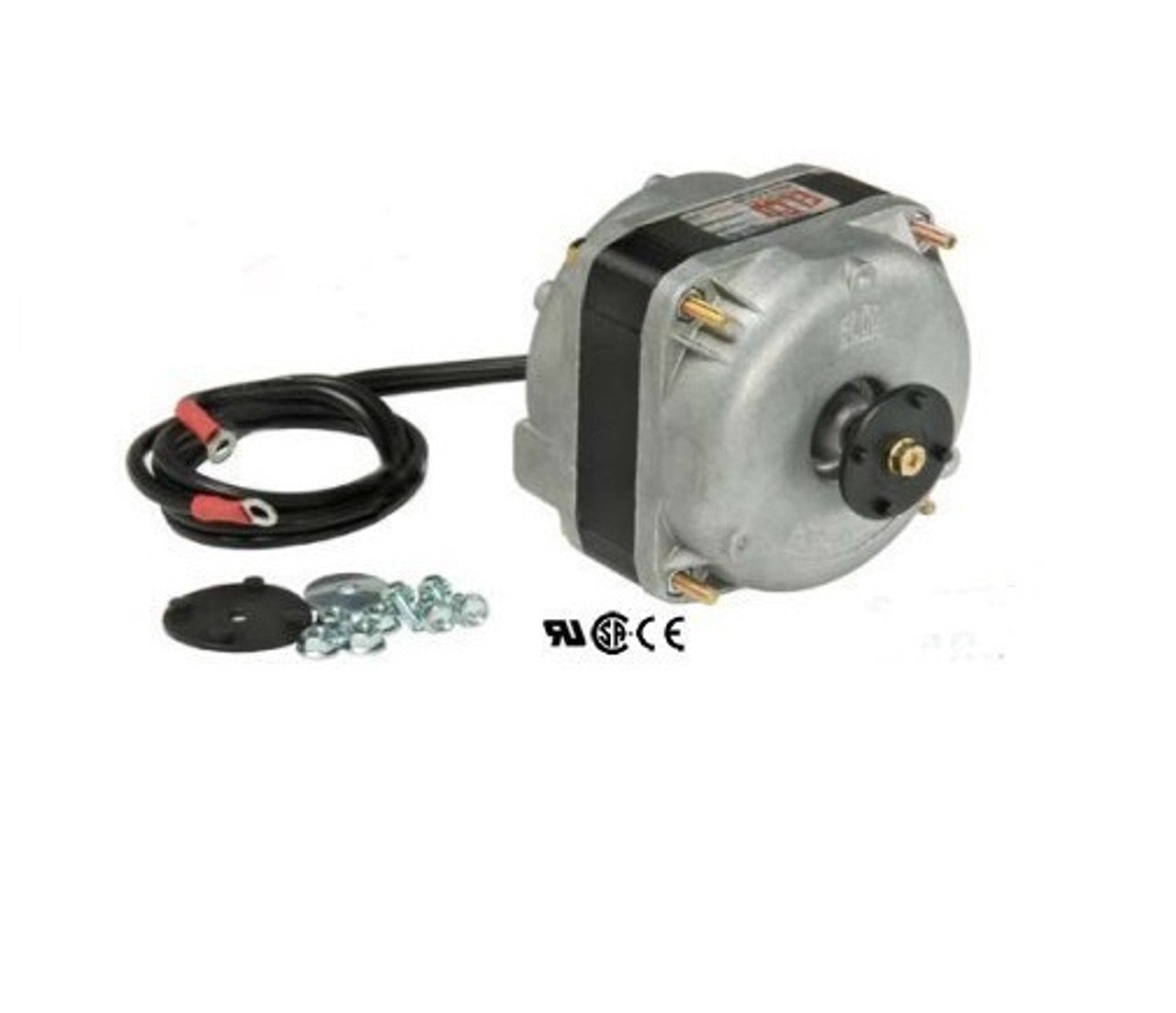

GENTEQ MOTORS EC5W115 Refrigeration Motor 5W 115V

Product Description

The GENTEQ MOTORS EC-5W115 is a refrigeration motor with a power output of 5 watts and operates at 115 volts. This motor spins at a speed of 1550 RPM and is designed specifically for refrigeration applications such as condensing and evaporating units, freezers, and coolers. It features a shaded pole design and a sleeve bearing for enhanced reliability.

• Operates at 115 volts and has a speed of 1550 RPM
• Shaded pole design with sleeve bearing
• Designed for continuous air over applications

Product Highlights

This motor is thermally protected and has a totally enclosed air over enclosure, making it suitable for a range of cooling applications. It ensures reliable operation while maintaining efficiency.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: EC5W115

Technical Specifications

• Output Power: 5 W
• Input Voltage: 115 V
• Input Current: 0.4 A
• Frequency: 60 Hz
• Speed: 1550 RPM
• Number of Phases: 1
• Duty: Continuous Air Over
• Enclosure Type: Totally Enclosed Air Over
• Insulation Class: B
• Thermal Protection: Thermostat
• Operating Temperature: 40 °C
• Mounting Type: 1 BOSS/PE AND OPE 3 HOLES
• Frame Material: Aluminum
• Shaft Type: Flat
• Overall Length: 2.80 inches
• Frame Length: 2.32 inches
• Shaft Diameter: 0.275 inches
• Shaft Extension: 0.49 inches
