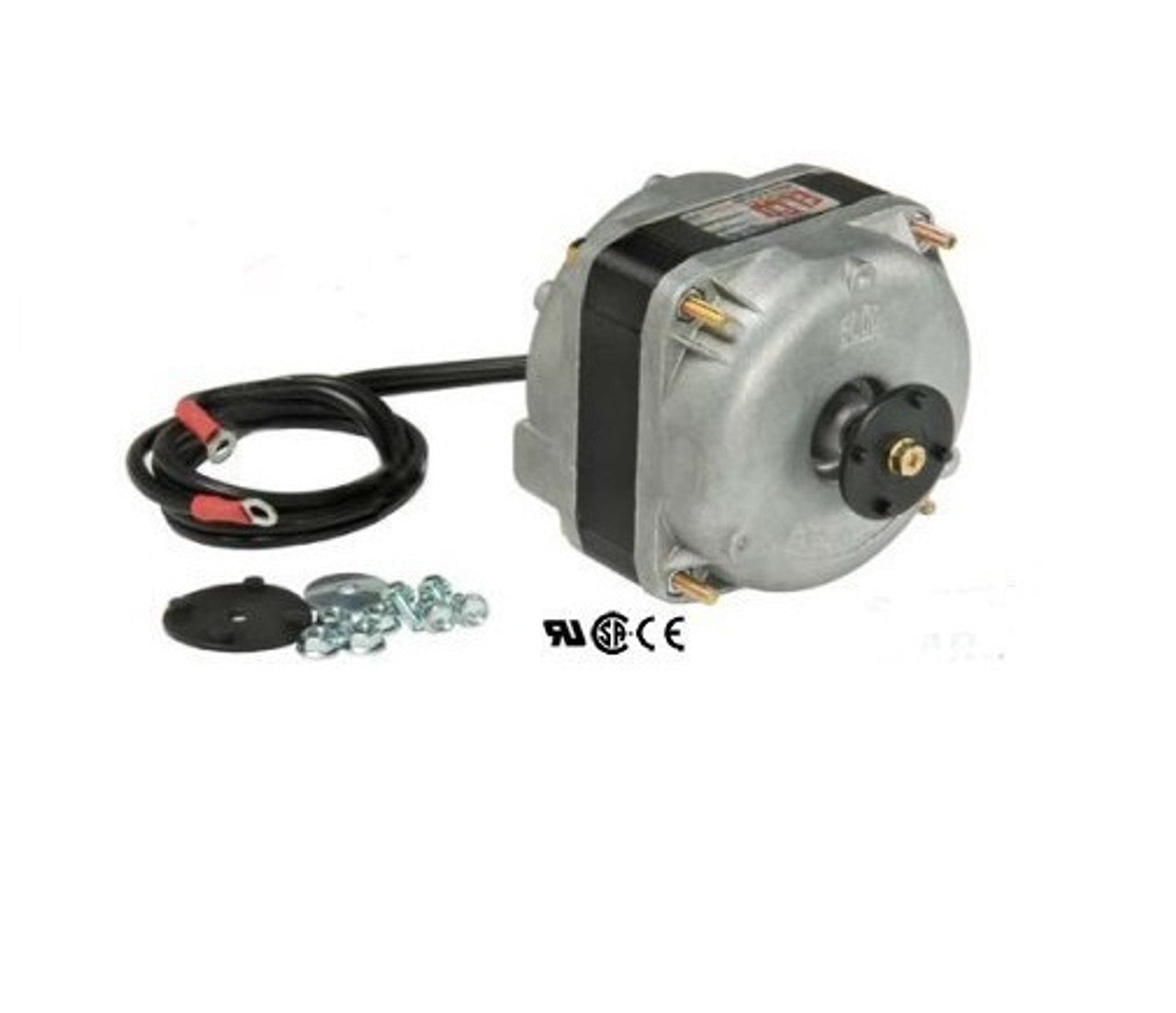

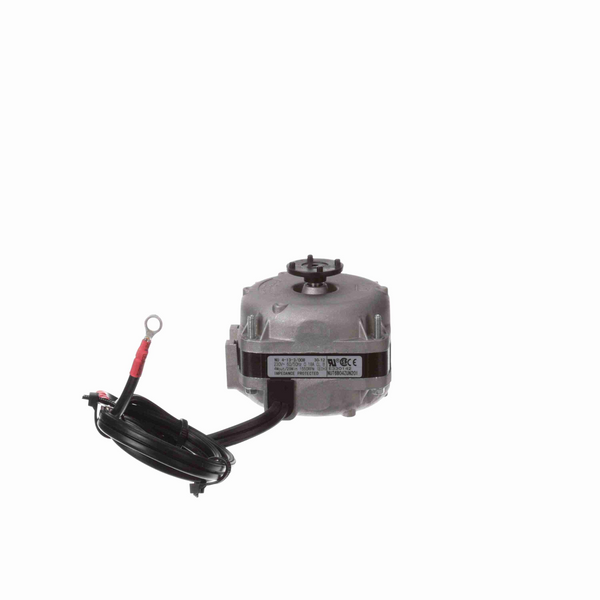

GENTEQ MOTORS EC4W230 Refrigeration Motor 4W 230V

Product Description

The GENTEQ MOTORS EC4W230 is a refrigeration motor designed to operate effectively in continuous air-over applications. It functions on 230V power, running at a speed of 1550 RPM, making it suitable for various refrigeration tasks.

• Operates at 230V and 1550 RPM.
• Features a totally enclosed air-over design.
• Can be mounted in any orientation.

Product Highlights

This motor is designed for efficient operation in demanding environments, featuring a unit bearing frame and a durable construction.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: EC4W230

Technical Specifications

• Output Power: 4 W
• Input Voltage: 230 V
• Frequency: 60 Hz
• Input Current: 0.18 A
• Speed: 1550 RPM
• Phase: 1
• Duty: Continuous Air Over
• Insulation Class: B
• Frame Type: Unit Bearing
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: No Protection
• Ambient Temperature: 40 °C
• UL Listed: Yes
• CSA Certified: Yes
• CE Certified: Yes
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Number of Poles: 4
• Rotation: Counterclockwise Shaft End
• Mounting Type: 1 BOSS/PE AND OPE 3 HOLES
• Motor Orientation: Any
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Aluminum
• Shaft Type: Flat
• Overall Length: 2.80 inches
• Frame Length: 2.32 inches
• Shaft Diameter: 0.275 inches
• Shaft Extension: 0.49 inches
