GENTEQ MOTORS D816 Fasco D816 Motor Power 1/3 HP

Product Description

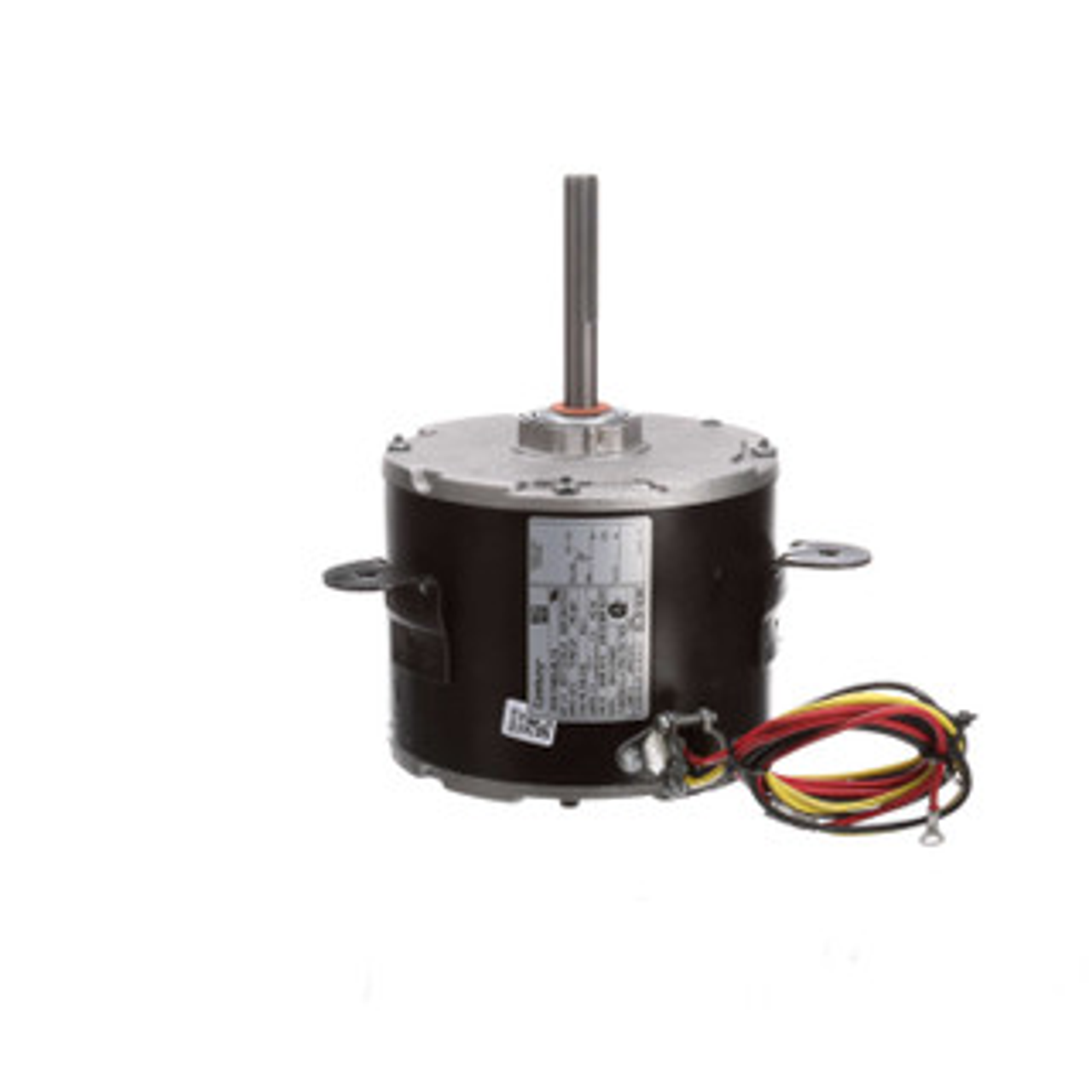

Maintain the performance of your equipment with the GENTEQ MOTORS D816, a dependable OEM replacement motor. This unit delivers a power output of 1/3 HP and features a Permanent Split Capacitor design. It supports both clockwise and counter-clockwise rotation at a speed of 1075 RPM. Designed to operate at a voltage of two hundred eight to two hundred thirty volts and drawing 2.2 Amps, this single-phase motor is crafted with a totally enclosed casing made from sturdy rolled steel, ensuring protection against dust and impurities.

• Features automatic overload protection for enhanced safety
• Constructed with sleeve bearings for quiet operation
• Compatible with a 5mfd-370V capacitor for optimal functioning

Product Highlights

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: D816

Technical Specifications

• Horsepower: 1/3 HP
• Rotation: CWSE/CCWLE
• RPM: 1075
• Voltage: 208-230 V
• Enclosure: Totally Enclosed
• Type: Permanent Split Capacitor
• Mounting: Sleeve Bearings
• Frame Size: 48Z
• Amps: 2.2
• Shaft Size: 1/2 x 3-3/4
• Capacitor Required: 5mfd-370V
• Phase: Single Phase
• Electrical Type: PSC
• Diameter: 5.6
• Overload: Auto
• Material: Rolled Steel
