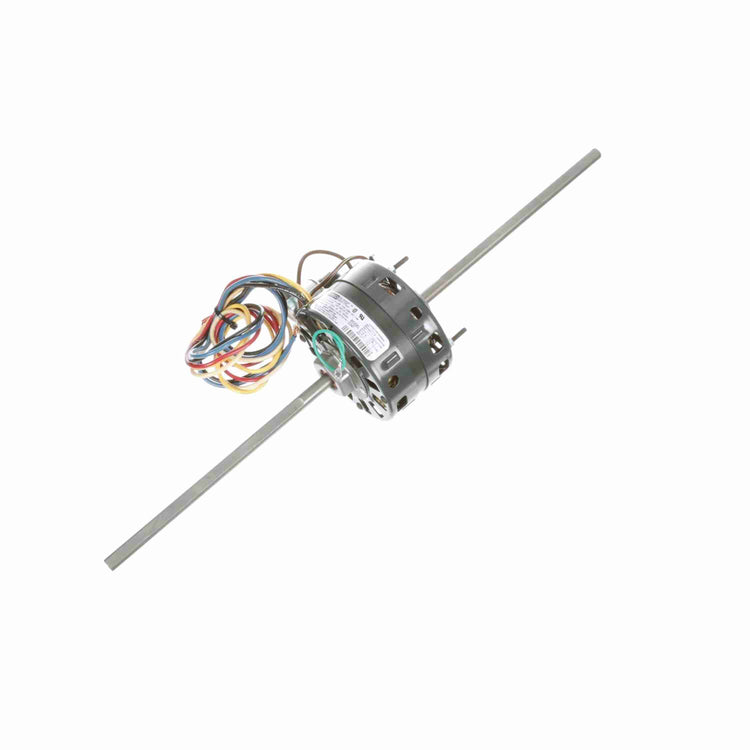

GENTEQ MOTORS D347A Fasco Fan Motor 1/8-1/12-1/20-1/30HP 1550RPM 42 OAO

Product Description

The GENTEQ MOTORS D347A is a reliable fan motor designed for HVAC applications. It replaces the Century 347 / 9408 fan coil motor, suitable for both air-conditioning and heating. This motor operates efficiently at a speed of one thousand five hundred fifty RPM, making it ideal for various fan applications.

• Single-phase, operating at 115 volts.
• Permanent split capacitor type with thermally protected design.
• Includes a five microfarad capacitor, already supplied with the motor.

Product Highlights

This motor features robust Class B insulation rated for ambient temperatures up to forty degrees Celsius.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: D347A

Technical Specifications

• Diameter: five inches
• Frame Size: 42
• Type: open air over
• Insulation Class: B
• Shaft Diameter: one-half inch
• Lead End Type: flat 30 leads with extended studs
• Mounting Type: hex mounting hubs
• Ball Bearing: included
