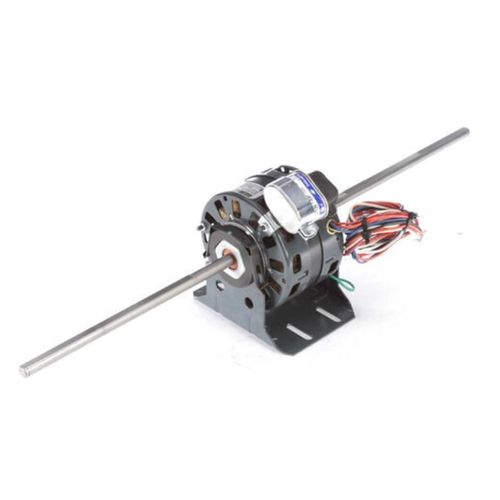

GENTEQ MOTORS D291A Fan Coil Motor

Product Description

The GENTEQ MOTORS D291A is a reliable motor suitable for fan coil, air conditioning, and heating units. This single-phase motor operates at four speeds and is designed for various applications in HVAC systems. It has a permanent split capacitor to enhance performance and requires a capacitor rated at 4 Mfd-370 Volts. The motor is constructed as open air over and comes with automatic thermal protection to prevent overheating, making it suitable for environments with an ambient temperature of up to forty degrees Celsius.

• Suitable for fan coil, air conditioning, and heating applications.
• Permanent split capacitor design improves efficiency.
• Ball bearings with a half-inch diameter double shaft enable smooth operation.

Product Highlights

Efficient motor for HVAC applications with advanced thermal protection.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: D291A

Technical Specifications

• Application: Fan Coil, Air Conditioning, Heating Unit
• Phase: 1
• Output HP: 1/10, 1/15, 1/25, 1/40
• Input Voltage: 115 V
• Speed: 1050 rpm
• Number of Speeds: 4
• Frequency: 60 Hz
• Current: 2.2, 1.4, 1.0, 0.7 A
• Frame Size: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Insulation Class: B
• Duty: Continuous
• Service Factor: 1.0
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Rotation: Counterclockwise Lead End
• Mounting Type: Resilient Base
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Shaft Diameter: 0.500 in
• Frame Length: 3.83 in
• Shaft Extension: 10.4X.5X10.42 in
• UL: Recognized
• CSA: Y
• CE: N
• Poles: 6
