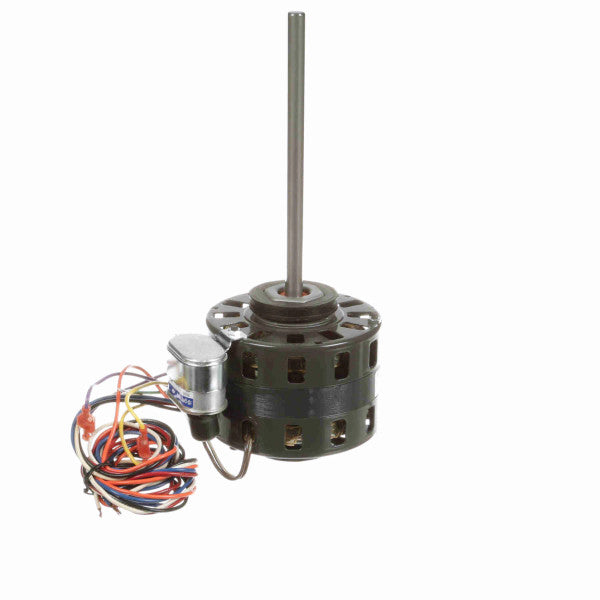

GENTEQ MOTORS D290A Fan Coil and Air Conditioner Motor

Product Description

The GENTEQ MOTORS D290A is a single-phase motor used in fan coil, air conditioning, and heating units. It operates on 115V power and runs at 60 Hz. The motor has a speed of 1050 RPM, making it suitable for various applications. Its open air over enclosure design allows for effective cooling, while automatic thermal protection ensures safety during use. This motor is built with ball bearings for durability and comes with resilient mounting rings for easy installation.

• Single-phase, four-speed motor
• Permanent split capacitor design
• Resilient mounting rings included for installation

Product Highlights

The GENTEQ MOTORS D290A is ideal for continuous duty applications and offers a reversible rotation. It is equipped with class B insulation for thermal protection and can handle ambient temperatures up to 40 °C.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: D290A

Technical Specifications

• Phase: 1
• Output HP: 1/10, 1/15, 1/25, 1/40 Hp
• Input Voltage: 115 V
• Frequency: 60 Hz
• Speed: 1050 RPM
• Current: 2.2, 1.4, 1.0, 0.7 A
• Number of Speeds: 4
• Enclosure: Open Air Over
• Frame Size: 42
• Rotation: Reversible
• Insulation Class: B
• Ambient Temperature: 40 °C
• Duty: Continuous
• Service Factor: 1.0
• Thermal Protection: Automatic
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Mounting Type: Resilient Rings
• Drive End Bearing Type: Ball
• Opp Drive End Bearing Type: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Shaft Diameter: 0.500 inches
• Shaft Extension: 8.5 inches
• Frame Length: 3.83 inches
• UL Listed: Recognized
• CSA Certified: Y
• CE Certified: N
