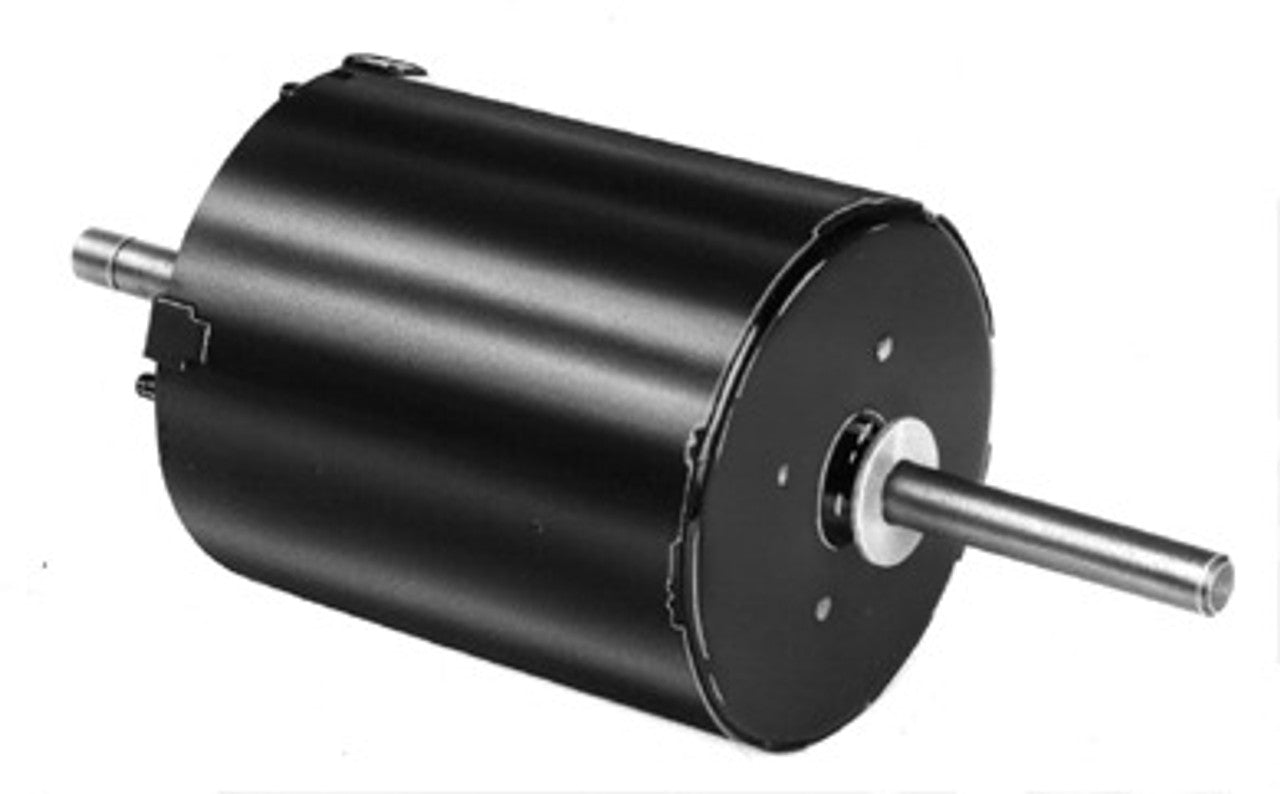

GENTEQ MOTORS D1135 Electric Motor 115V

Product Description

The GENTEQ MOTORS D1135 is an electric motor designed for use at 115 volts and sixty hertz. This single-phase motor operates at a rated speed of fourteen hundred fifty RPM. It draws a current of 1.10 amps. The motor features a sleeve bearing and rotates in a counter-clockwise direction from the lead end. This closed body motor is suitable for 4-stud lead end or direct mounting.

• Operates at 115 volts and sixty hertz in single-phase mode.
• Rated speed of fourteen hundred fifty RPM with three-speed settings.
• Includes a sleeve bearing with counter-clockwise lead end rotation.

Product Highlights

The D1135 motor is ideal for various applications requiring reliable performance and efficient operation.

Product Information

Standard Information

• Horsepower: 1/12 HP
• Input Voltage: 115V

Technical Specifications

• Frequency: 60 Hz
• Phase: 1
• Speed: 1450 RPM (3-Speed)
• Current: 1.10 Amps
• Frame: J/3.3
• Mounting Type: 4-Stud Lead End/Direct
• Type: PSC 10 X 370 (Not Included)
• Bearing Type: Sleeve
• Rotation: Counter Clockwise Lead End
• Enclosure: Closed
• Shaft Dimensions: 1-7/8 Lead End X 3/8 X 2-15/32
• Weight: 4.50 lbs
• Motor Body Dimensions: 4 inches L X 3-1/4 inches W
