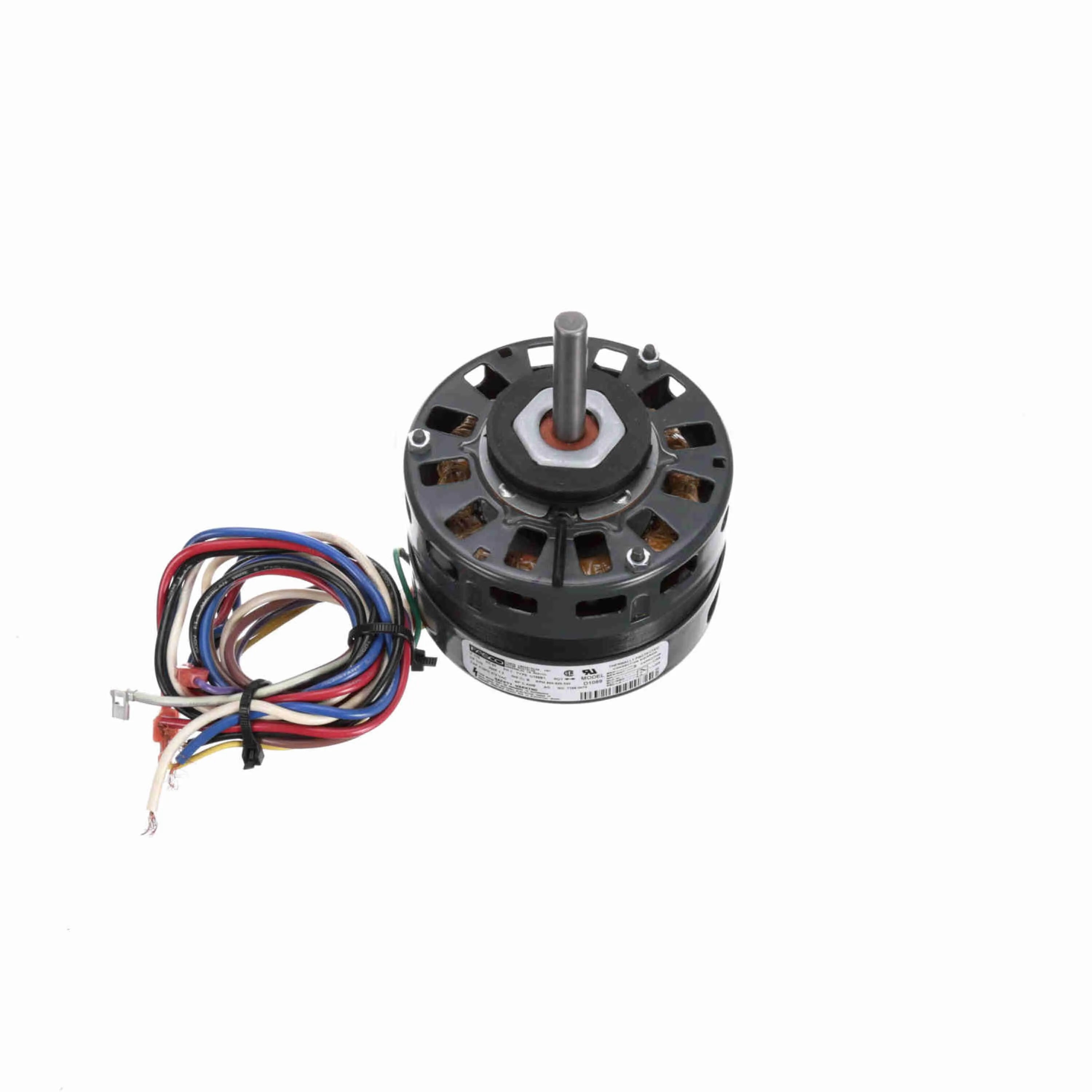

GENTEQ MOTORS D1089A Fasco OEM Replacement Motor 1/15 HP 850/620/520 RPM

Product Description

The GENTEQ MOTORS D1089A is a Fasco OEM replacement motor that provides reliable performance for various applications. This motor operates at one-fifteenth horsepower and offers three selectable speeds: 850 RPM, 620 RPM, and 520 RPM. It is designed to operate at 115 volts with a frequency of 60 Hz. The motor features a frame size of 42 and an open air over enclosure suitable for continuous duty applications.

• OEM Direct Replacement Motor
• Permanent Split Capacitor (PSC), requires a capacitor of 4 Mfd-370 volts (not included)
• Equipped with ball bearings for smoother operation

Product Highlights

This motor is suitable for systems requiring a thermally protected, multi-speed motor with robust mounting.

Product Information

Standard Information

• Output HP: 1/15 Hp
• Phase: 1

Technical Specifications

• Voltage: 115 V
• Speed: 850/620/520 RPM
• Service Factor: 1.0
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Efficiency: 34 %
• Ambient Temperature: 40 °C
• Current: 1.63 A, 0.78 A, 0.46 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 8
• Rotation: Reversible
• Mounting: Resilient Rings
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Frame Length: 3.83 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 3 inches
