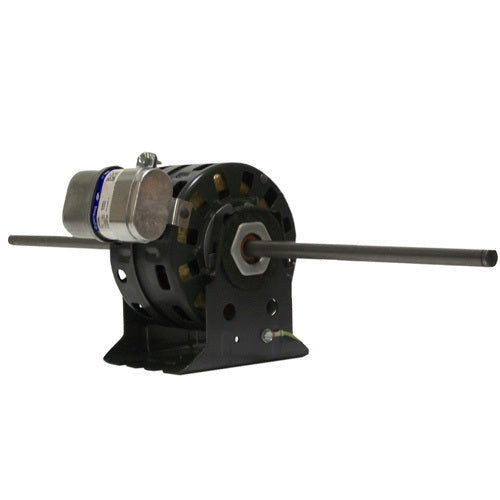

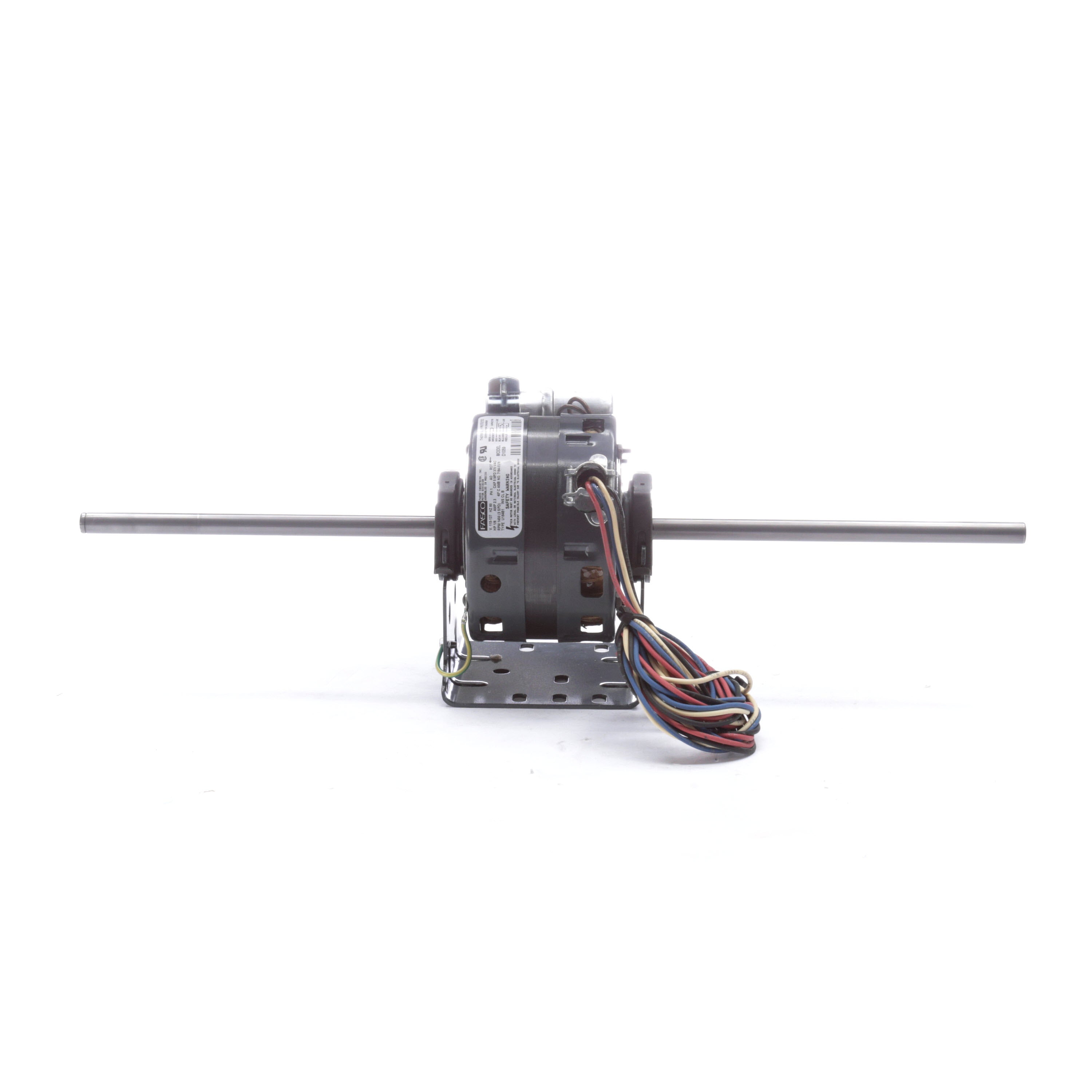

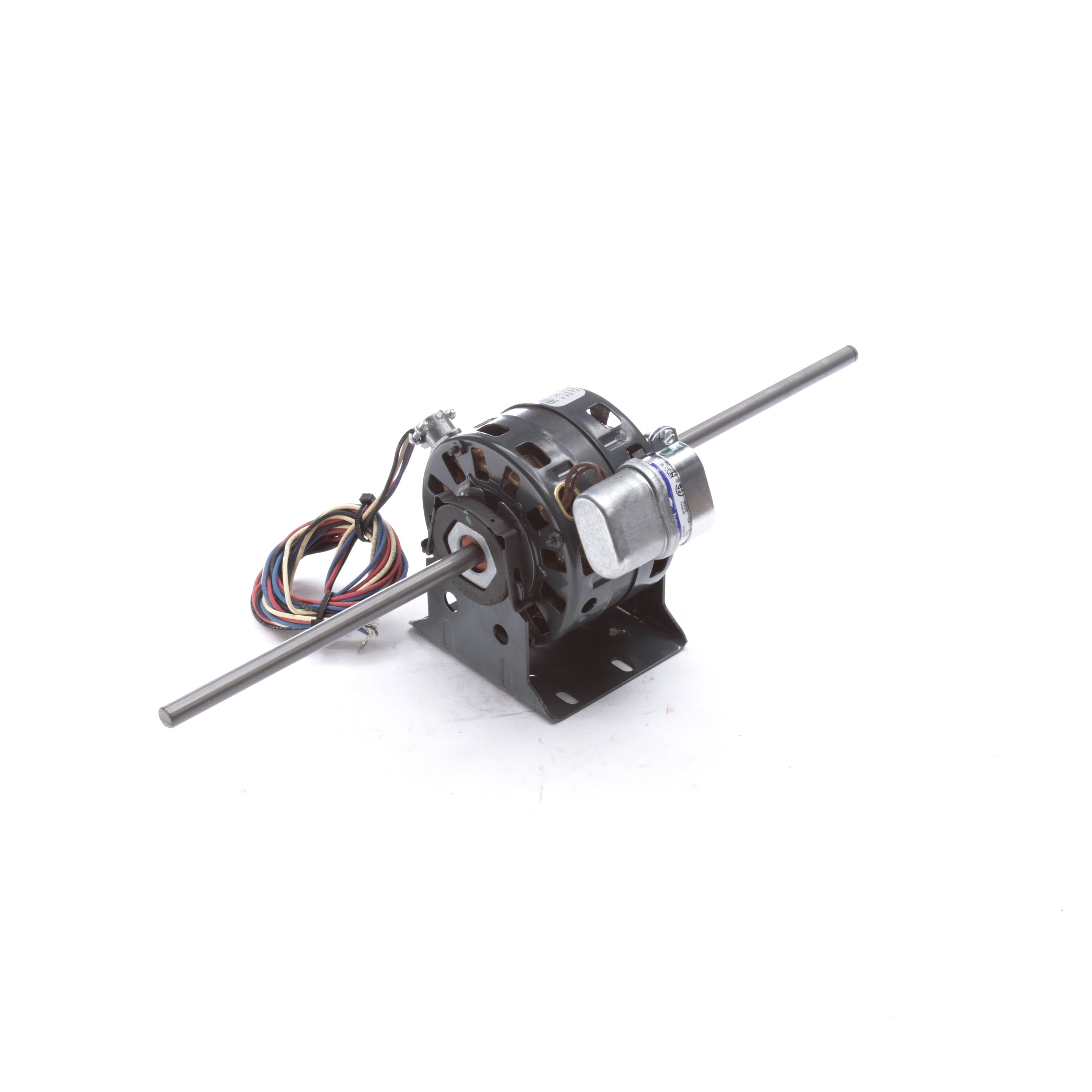

GENTEQ MOTORS D1059A - 1/6 HP - 3-Speed Motor

Product Description

The GENTEQ MOTORS D1059A is a three-speed motor ideal for HVAC and refrigeration needs. This motor operates on 115-127 volts and reaches a speed of 1450 RPM, making it effective for various applications.

• Horsepower rating: 1/6 HP
• Type: Permanent split capacitor motor
• Enclosure: Open air over

Product Highlights

Designed for both reliability and efficiency, this motor features a resilient base for easy mounting and operates with a clockwise shaft rotation.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: D1059A

Technical Specifications

• Horsepower: 1/6 HP
• Voltage: 115-127V
• Frequency: 60 Hz
• Amperage: 2.3A
• RPM: 1450
• Speeds: 3
• Phase: 1
• Enclosure Type: Open air over
• Rotation: Clockwise shaft end
• Mounting Type: Resilient base
• Frame Type: 42
• Shaft Diameter: 1/2 inches
• Shaft Extension: 8.75 inches
• Shaft Type: Flat
• DE Bearing Type: Sleeve
• ODE Bearing Type: Sleeve
• C-Dimension: 21.02 inches
• Electrical Type: Permanent split capacitor
• Duty: Continuous
• Service Factor: 1
• Overload Protector: Automatic
• Insulation Class: B
• Max Ambient: 40°C
• UL: Recognized
• CSA: Y
